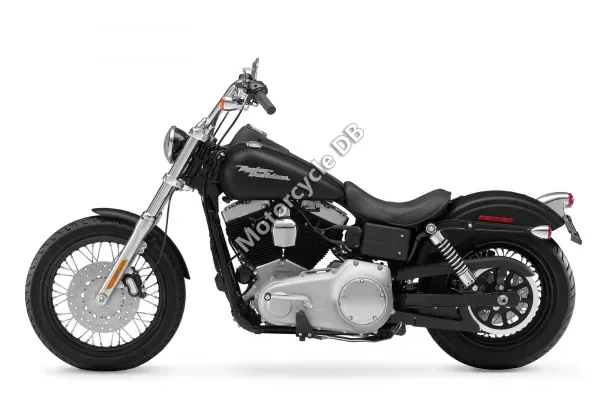

Harley-Davidson Dyna Street Bob Dark Custom - 2013 Specifications and Reviews

Not Rated stars Average rating: Not Rated from 0 votes
.

General information

CategoryCustom / cruiser
Year2013
ModelHarley-Davidson Dyna Street Bob Dark Custom

Engine and Transmission Specifications

Exhaust systemChrome, staggered, straight-cut shorty exhaust WITH DUAL mufflers
Greenhouse gases126.9 CO
Fuel consumption5.47 litres/100 km (18.3 km/l or 43.00 mpg)
DrivelineChain, 34/46 ratio primary drive
ClutchMulti-plate with diaphragm spring in oil bath
Transmission type,final driveBelt
Gearbox6-speed
Cooling systemAir
Lubrication systemDry sump
Fuel systemInjection. ESPFI
Bore x stroke95.3 x 111.3 mm (3.8 x 4.4 inches)
Compression9.2:1
Torque124.75 Nm (12.7 kgf-m or 92.0 ft.lbs) @ 3000
Engine detailsAir-cooled, Twin Cam 96™
Engine typeV2, four-stroke
Capacity:1573.25 ccm (96.00 cubic inches)



Brakes, suspension, Frame and wheels

WheelsBlack, Laced Steel
Rear brakesSingle disc. Single-piston
Front brakesSingle disc. Dual-piston
Rear tyre dimensions160/70-V17
Front tyre dimensions100/90-H19
Trail119 mm (4.7 inches)
Rake (fork angle)29.0°

Physical measures and capacities

Oil capacity2.80 litres (0.18 quarts)
Fuel capacity17.79 litres (4.70 gallons)
Wheelbase1,631 mm (64.2 inches)
Ground clearance125 mm (4.9 inches)
Overall length2,357 mm (92.8 inches)
Seat height648 mm (25.5 inches) If adjustable, lowest setting.
Weight incl. oil, gas, etc304.8 kg (672.0 pounds)
Dry weight289.9 kg (639.0 pounds)

Other specs

CommentsAmphibian.
Wheelbase1,800 mm (70.9 inches)
Overall width1,600 mm (63.0 inches)
Overall height1,400 mm (55.1 inches)
Rear SuspensionIndependent coil springs and hydraulic dampers
Front SuspensionIndependent coil springs and hydraulic dampers
Fuel controlDouble Overhead Cams/Twin Cam (DOHC)
Valves per cylinder4
Top speed45.0 km/h (28.0 mph)
Capacity:1300.00 ccm (79.33 cubic inches)
ModelGibbs Quadski
Color optionsBlack
LightHigh beam, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system(optional), 6-speed, low fuel warnings
InstrumentsTank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, RPM/Gear display, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, 6-speed indicator light
StarterElectric
