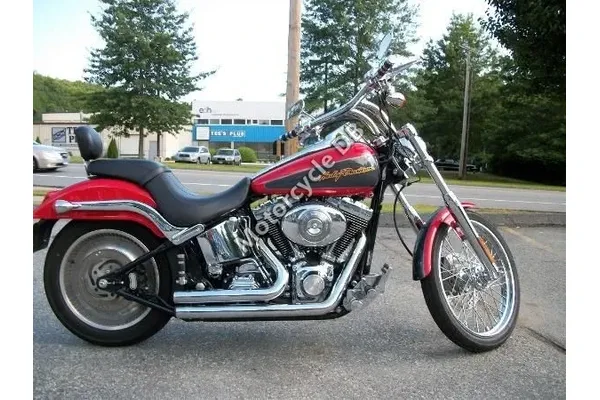

Harley-Davidson FXSTDI Softail Deuce - 2006 Specifications and Reviews

4 stars Average rating: 4 from 1 votes
.

General information

CategoryCustom / cruiser
Year2006
ModelHarley-Davidson FXSTDI Softail Deuce

Engine and Transmission Specifications

Exhaust systemChrome, over/under shotgun duals
Greenhouse gases116.0 CO
Fuel consumption5.00 litres/100 km (20.0 km/l or 47.04 mpg)
ClutchMulti-plate with diaphragm spring in oil bath
Transmission type,final driveBelt
Gearbox5-speed
Cooling systemAir
Fuel controlDOHC
Fuel systemInjection. Electronic Sequential Port Fuel Injection (ESPFI)
Valves per cylinder2
Bore x stroke95.3 x 101.6 mm (3.8 x 4.0 inches)
Compression8.9:1
Torque115.26 Nm (11.8 kgf-m or 85.0 ft.lbs) @ 3000
Engine typeV2, four-stroke
Capacity:1442.15 ccm (88.00 cubic inches)



Brakes, suspension, Frame and wheels

Rear brakesSingle disc
Front brakesSingle disc
Rear tyre dimensions160/70-B17
Front tyre dimensionsMH90-21
Trail127 mm (5.0 inches)
Rake (fork angle)32.0°

Physical measures and capacities

Fuel capacity18.54 litres (4.90 gallons)
Wheelbase1,692 mm (66.6 inches)
Ground clearance142 mm (5.6 inches)
Overall length2,423 mm (95.4 inches)
Weight incl. oil, gas, etc309.3 kg (682.0 pounds)
Dry weight295.3 kg (651.0 pounds)

Other specs

Color optionsVivid black, brilliant silver, black cherry, black pearl, deep cobalt, glacier white pearl, rich sunglo blue, brandy wine sunglo, two-tone rich sunglo blue and chopper blue, two-tone black cherry and black pearl, two-tone fire red pearl and vivid black, t
