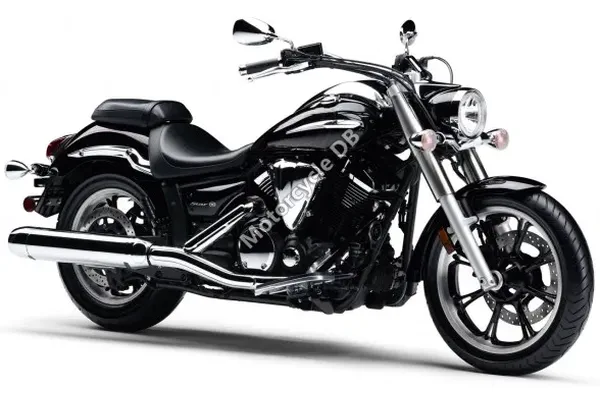

2010 Yamaha XVS 950A Midnight Star

Add/Upload more pictures of this motorcycle



2010 Yamaha XVS 950A Midnight Star specifications

General information
Model:Yamaha XVS 950A Midnight Star
Year:2010
Category:Custom / cruiser
Engine and transmission
Displacement:942.00 ccm (57.48 cubic inches)
Engine type:V2, four-stroke
Power:52.84
Compression:9.0:1
Bore x stroke:85.0 x 83.0 mm (3.3 x 3.3 inches)
Fuel system:Injection
Fuel control:SOHC
Ignition:TCI
Lubrication system:Wet sump
Cooling system:Air
Gearbox:5-speed
Transmission type,final drive:Belt
Clutch:Wet, multiple-disc
Brakes, suspension, Frame and wheels
Frame type:Steel double cradle
Trail:145 mm (5.7 inches)
Front suspension:Telescopic forks, 41 mm
Front suspension travel:135 mm (5.3 inches)
Rear suspension:Swingarm
Rear suspension travel:110 mm (4.3 inches)
Front tyre dimensions:130/70-M18
Rear tyre dimensions:170/70-B16
Front brakes:Single disc
Front brakes diameter:320 mm (12.6 inches)
Rear brakes:Single disc
Rear brakes diameter:298 mm (11.7 inches)
Physical measures and capacities
Weight incl. oil, gas, etc:278.0 kg (612.9 pounds)
Seat height:675 mm (26.6 inches) If adjustable, lowest setting.
Overall height:1,080 mm (42.5 inches)
Overall length:2,435 mm (95.9 inches)
Overall width:1,000 mm (39.4 inches)
Ground clearance:145 mm (5.7 inches)
Wheelbase:1,685 mm (66.3 inches)
Fuel capacity:17.00 litres (4.49 gallons)
Oil capacity:4.00 litres (0.26 quarts)
Other specs
Starter:Electric
Color options:Black, blue
