2024Benelli TRK 502X
48 fields on record
The 2024 Benelli TRK 502X is a versatile middleweight adventure tourer designed for riders seeking accessible off-road capability without compromising on-road comfort. Powered by a liquid-cooled 500cc parallel-twin engine producing 47.6 hp, it delivers balanced performance for mixed terrain exploration. Best suited for adventure enthusiasts and commuters wanting an affordable entry into adventure touring with genuine go-anywhere potential.
- Capacity
- 500.0 ccm
- Engine
- Parallel Twin, four-stroke
- Gearbox
- 6-speed
- Dry weight
- 213.0 kg
- Seat height
- 860 mm
- Power
- 47.6 HP (34.7 kW) @ 8500 RPM
How it rides
Editorial estimate from the spec sheet - not lab tested- Best for
- Designed as an affordable, do-it-all adventure-styled bike for mixed road riding, commuting, and light touring rather than serious off-roading.
- Built for
- A friendly, budget-conscious adventure tourer that prioritizes comfort and versatility over outright performance or hardcore off-road capability.
- Not ideal for
- Not ideal for riders seeking sharp sport performance, technical off-road trails, or high-speed touring at the top of the class.
Scores are derived from the spec sheet using the same model across every bike, so they compare like for like.
Will it fit you?
Worked out in your browser - nothing is sent to usEngine
- Capacity
- 500.0 ccm
- Power
- 47.6 HP (34.7 kW) @ 8500 RPM
- CO2 Emissions
- 108 CO2 g/km
- EPA Certificate No.
- RQJNC0.50MCA-004
- EPA Est. Fuel Consumption
- 4.62 L/100km (50.9 US mpg)
- EPA CO Emissions
- 2.4 CO g/km
- Torque
- 45.0 Nm (4.6 kgf-m) @ 5000 RPM
- Engine type
- Parallel Twin, four-stroke
- Fuel consumption
- 4.20 litres/100 km (23.8 km/l)
- Power/weight ratio
- 0.2235 HP/kg (dry)
- Bore x stroke
- 69.0 x 66.8 mm
- Compression
- 11.5:1
- Cooling system
- Liquid
- Fuel system
- Injection
- Starting
- Electric
- Ignition
- TLI
- Aspiration
- Naturally aspirated
- Valves per cylinder
- 4
- Lubrication system
- Pressure splash lubrication
Transmission
- Gearbox
- 6-speed
- Transmission type
- Manual
- Final drive
- Chain
- Clutch
- Wet multidisc
Dimensions & weight
- Wheelbase
- 1505 mm
- Overall length
- 2220 mm
- Overall width
- 915 mm
- Overall height
- 1480 mm
- Seat height
- 860 mm
- Dry weight
- 213.0 kg
- Wet weight
- 235.0 kg
- Fuel capacity
- 20.00 litres
- Ground clearance
- 210 mm
- Reserve fuel capacity
- 3.00 litres
Chassis & suspension
- Frame
- Arch bar truck
- Front suspension
- Telescopic fork
- Rear suspension
- Telescopic coil spring oil damped
- Front wheel travel
- 140 mm
- Rear wheel travel
- 45 mm
Brakes & wheels
- Front brakes
- Double disc. 4-piston, ABS
- Front brakes diameter
- 280 mm
- Rear brakes
- Single disc. Single piston calliper, ABS
- ABS
- Yes
- Front tyre
- 110/80-R9
- Rear tyre
- 150/70-R17
Other
- Color options
- White, grey
- Comments
- Windscreen. Chinese made bike.
- Fuel Tank Material
- Metal
Compiled from manufacturer documentation and user contributions, corrected on an ongoing basis. Spotted something wrong? Tell us.
What changed, year to year
Differences highlighted| Specification | 2023 | 2024 |
|---|---|---|
| Capacity | 500 cc | 500 cc |
| Dry weight | 213 kg | 213 kg |
| Seat height | 860 mm | 860 mm |
| Fuel capacity | 20 L | 20 L |
Illustrative - generated automatically by diffing the year records already on file, not a manufacturer-published changelog.
Rider Reviews
Common questions
What is the engine size of the Benelli TRK 502X?
The 2024 Benelli TRK 502X has a Capacity of 500.0 ccm (30.51 cubic inches).
What engine power does the Benelli TRK 502X have?
The 2024 Benelli TRK 502X has a Power of 47.6 HP (34.7 kW) @ 8500 RPM.
How many gears does the Benelli TRK 502X have?
The 2024 Benelli TRK 502X has a Gearbox of 6-speed.
What is the torque of the Benelli TRK 502X?
The 2024 Benelli TRK 502X has a Torque of 45.0 Nm (4.6 kgf-m or 33.2 ft.lbs) @ 5000 RPM.
How much does the Benelli TRK 502X weigh?
The 2024 Benelli TRK 502X has a Dry weight of 213.0 kg (469.6 pounds).
Shop this bike
Affiliate linksWe may earn a commission from qualifying eBay or Amazon purchases made through these links. As an Amazon Associate I earn from qualifying purchases.
Similar bikes
Same category, weighted similarity
2025 Benelli Trk 502 X
500 cc · 213 kg · 860 mm
2026 Benelli Trk 502 X
500 cc · 213 kg · 860 mm
2025 Brixton Crossfire 500 Storr
486 cc · 209 kg · 839 mm
2026 Brixton Crossfire 500 Storr
486 cc · 209 kg · 839 mm

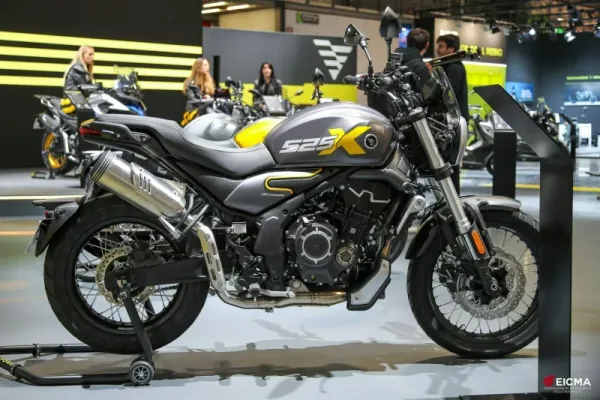

2025 Voge Trofeo 525ACX
