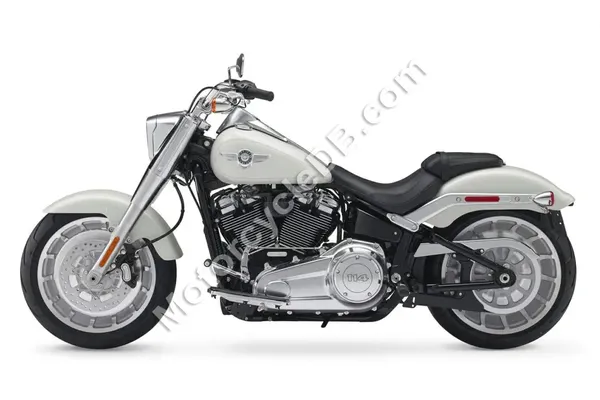

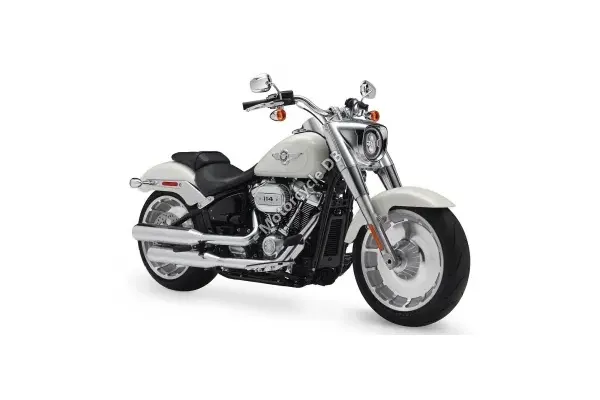

Harley-Davidson 115th Anniversary Fat Boy 114 (ANV) - 2018 Specifications and Reviews
2018
General information | |
| Category: | Custom / cruiser |
| Year: | 2018 |
| Model: | Harley-Davidson 115th Anniversary Fat Boy 114 (ANV) |
Engine and Transmission Specifications | |
| Exhaust system: | 2-into-2 shorty dual; catalyst in muffler |
| Greenhouse gases: | 129.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Fuel consumption: | 5.60 litres/100 km (17.9 km/l or 42.00 mpg) |
| Driveline: | Primary chain, 34/46 ratio |
| Clutch: | Multi-plate with diaphragm spring in oil bath |
| Transmission type,final drive: | Belt |
| Gearbox: | 6-speed |
| Cooling system: | Air |
| Fuel control: | Double Overhead Cams/Twin Cam (DOHC) |
| Fuel system: | Injection. Electronic Sequential Port Fuel Injection |
| Bore x Stroke: | 100.0 x 111.1 mm (3.9 x 4.4 inches) |
| Compression: | 10.0:1 |
| Torque: | 145.00 Nm (14.8 kgf-m or 107.0 ft.lbs) @ 3000 Revolutions">RPM |
| Power: | 86.00 Horsepower">HP (62.8 Kilowatt">kW)) @ 5020 Revolutions">RPM |
| Engine details: | Milwaukee-Eight® 107, optionally 114 Big Twin |
| Engine type: | V2, four-stroke |
Brakes, suspension, Frame and wheels | |
| Wheels: | Machined, Lakester cast aluminum |
| Rear brakes: | Single disc. ABS. 2-piston. |
| Front brakes: | Double disc. ABS. 4-piston. |
| Rear tyre: | 240/40-R18 |
| Front tyre: | 160/60-R18 |
| Rear Suspension: | Twin shocks |
| Front Suspension: | Telescopic fork |
| Trail: | 104 mm (4.1 inches) |
| Rake (fork angle): | 30.0° |
Physical measures and capacities | |
| Oil capacity: | 4.70 litres (0.31 quarts) |
| Fuel capacity: | 18.93 litres (5.00 gallons) |
| Wheelbase: | 1,665 mm (65.6 inches) |
| Ground clearance: | 115 mm (4.5 inches) |
| Overall length: | 2,370 mm (93.3 inches) |
| Seat height: | 675 mm (26.6 inches) If adjustable, lowest setting. |
| Power/weight ratio: | 0.2829 HP/kg |
| Weight incl. oil, gas, etc: | 317.0 kg (698.9 pounds) |
| Dry weight: | 304.0 kg (670.2 pounds) |
Other specs | |
| Light: | High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system (optional), 6-speed, low fuel warnings |
| Instruments: | Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, RPM/gear display, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, 6-speed indicator light |
| Starter: | Electric |
| Color options: | Vivid Black, Black Tempest, Industrial Gray, Bonneville Salt Pearl, Wicked Red/Twisted Cherry, Legend Blue/Vivid Black, Legend Blue Denim |
