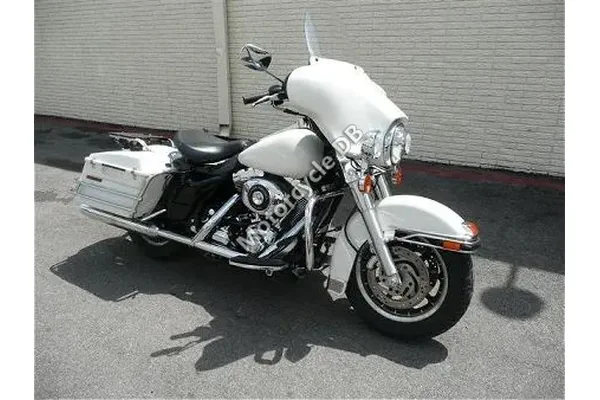

Harley-Davidson FLHTI Electra Glide Standard - 2006 Specifications and Reviews
2006
General information | |
| Category: | Custom / cruiser |
| Year: | 2006 |
| Model: | Harley-Davidson FLHTI Electra Glide Standard |
Engine and Transmission Specifications | |
| Clutch: | Multi-plate with diaphragm spring in oil bath |
| Transmission typefinal drive: | Belt |
| Gearbox: | 5-speed |
| Fuel control: | DOHC |
| Fuel system: | Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
| Bore x stroke: | 95.3 x 101.6 mm (3.8 x 4.0 inches) |
| Compression: | 8.9:1 |
| Torque: | 116.61 |
| Stroke: | 4 |
| Engine type: | V2 |
| Capacity: | 1442.15 ccm (88.00 cubic inches) |
Physical measures and capacities | |
| Wheelbase: | 1,613 mm (63.5 inches) |
| Ground clearance: | 130 mm (5.1 inches) |
| Overall length: | 2,380 mm (93.7 inches) |
| Weight incl. oil, gas, etc: | 357.9 kg (789.0 pounds) |
| Dry weight: | 343.8 kg (758.0 pounds) |
Harley-Davidson FLHTI Electra Glide Standard dimensions and frame | |
| Exhaust system: | Chrome, cross-over duals |
| Rear brakes: | Single disc |
| Front brakes: | Double disc |
| Rear tyre dimensions: | MU85-B16 |
| Front tyre dimensions: | MT90-B16 |
Speed and acceleration | |
| Color options: | Vivid black, fire red pearl, rich sunglo blue |
