Cruisers

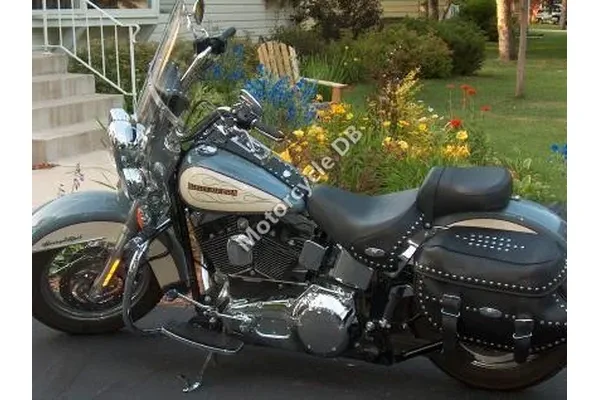

2002Harley-Davidson FLSTC Heritage Softail Classic

25 fields on record

The 2002 Harley-Davidson FLSTC Heritage Softail Classic is a heavyweight cruiser that appeals to riders seeking authentic retro styling with modern reliability. Known for its classic aesthetics, comfortable low-slung seating, and torquey 1449cc V-twin engine, it delivers smooth cruising performance ideal for laid-back highway riding and weekend excursions.

Capacity: 1449.0 ccm
Engine: V-Twin, four-stroke
Gearbox: 5-speed
Dry weight: 335.0 kg
Seat height: 644 mm
Power: 67.0 HP (49.3 kW)

⇄ Compare with another bike All model years ⚠ Recalls listed (1)

What’s new for the 2002 Harley-Davidson FLSTC Heritage Softail Classic

vs the 2001

Spec	2001	2002
Power	63.0 HP (46.3 kW)	67.0 HP (49.3 kW)
Top speed	158.0 km/h (98.2 mph)	not listed

Other years 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012

How it rides

Editorial estimate from the spec sheet - not lab tested

Off-road & trail5%

Cornering30%

City riding45%

Daily riding60%

Touring75%

Two-up75%

Track10%

Best for: Built for laid-back boulevard cruising and classic-styled long-distance touring rather than speed or sport riding.
Built for: A traditional, heavyweight American cruiser with big V-twin torque, classic styling, and a relaxed, unhurried riding character.
Not ideal for: Not a good fit for riders wanting sharp cornering ability, high-speed performance, or any off-road capability.

Scores are derived from the spec sheet using the same model across every bike, so they compare like for like.

Will it fit you?

Worked out in your browser - nothing is sent to us

Your height

Inseam (optional)

Units

At 644mm, a rider of 68.9" with a 31" (estimated) inseam will reach the ground with both feet flat on the 2002 Harley-Davidson FLSTC Heritage Softail Classic, with a cramped knee angle of around 70 degrees and an upright riding position.

Assumes about 30mm of suspension sag once seated. This is an approximation from category-typical geometry, not a measurement of this bike or of you - sit on one before you buy.

More bikes at 750 mm or under — Short Kings →

Find bikes that fit your height →

Full specifications

Engine

Capacity: 1449.0 ccm
Power: 67.0 HP (49.3 kW)
Torque: 106.0 Nm (10.8 kgf-m)
Engine type: V-Twin, four-stroke
Power/weight ratio: 0.2000 HP/kg (dry)
Bore x stroke: 95.3 x 101.6 mm
Compression: 8.8:1
Cooling system: Air
Fuel system: Carburettor
Starting: Electric

Transmission

Gearbox: 5-speed
Transmission type: Manual
Final drive: Belt

Dimensions & weight

Wheelbase: 1630 mm
Overall length: 2391 mm
Seat height: 644 mm
Dry weight: 335.0 kg
Fuel capacity: 18.90 litres
Ground clearance: 129 mm
Reserve fuel capacity: 1.90 litres

Brakes & wheels

Front brakes: Single disc
Front brakes diameter: 292 mm
Rear brakes: Single disc
Rear brakes diameter: 292 mm

Compiled from manufacturer documentation and user contributions, corrected on an ongoing basis. Spotted something wrong? Tell us.

What changed, year to year

Differences highlighted

Specification	2000	2002	2003	2006	2009	2012
Capacity	1449 cc	1449 cc	1449 cc	1442 cc	1584 cc	1688 cc
Dry weight	335 kg	335 kg	335 kg	326 kg	326 kg	331 kg
Seat height	644 mm	644 mm	697 mm	648 mm	697 mm	648 mm
Fuel capacity	19 L	18.9 L	19.7 L	18.9 L	18.9 L	18.9 L

Illustrative - generated automatically by diffing the year records already on file, not a manufacturer-published changelog.

Safety Recalls

⚠ 1 recall may apply

EQUIPMENT:OTHER:LABELSApr 2005 · 05V151000

CERTAIN SOFTAIL MOTORCYCLES FAIL TO COMPLY WITH THE REQUIREMENTS OF PART 567, 'CERTIFICATION.' THE VIN/CERTIFICATION LABEL CONTAINS INCORRECT TIRE SIZE AND INFLATION PRESSURES FOR THE FRONT WHEEL. THE LABEL STATES THE TIRE SIZE IS MT90B21 AND THE INFLATION PRESSURE AS 30 PSI, WHEREAS THE CORRECT TIRE SIZE IS MT90B16, AND THE CORRECT INFLATION PRESSURE IS 36 PSI.

Risk: THE CERTIFICATION LABEL IS INCORRECT GIVING IMPROPER INFORMATION.

Remedy: HARLEY- DAVIDSON WILL MAIL INSTRUCTIONS ALONG WITH CORRECTED FEDERAL CERTIFICATION LABEL. IF AN OWNER SO DESIRES, A DEALER CAN INSTALL THE LABEL FOR THEM. THE RECALL BEGAN ON JUNE 6, 2005. OWNERS MAY CONTACT HARLEY-DAVIDSON AT 1-414-343-4056.

These recalls cover some 2002 bikes of this model. Whether one applies to a specific bike, and whether the repair has already been done, depends on its VIN — check your VIN with NHTSA or ask a dealer.

Source: NHTSA. View all Harley-Davidson recalls →
