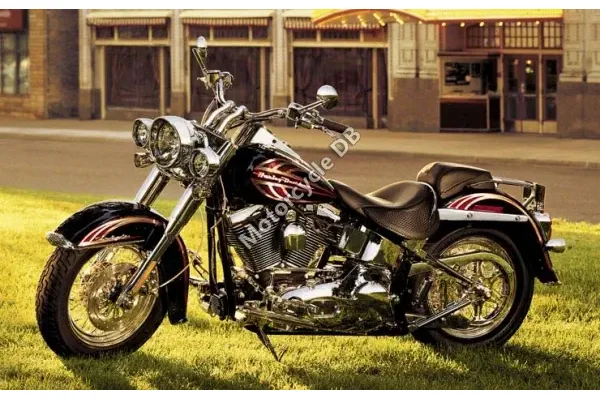

Harley-Davidson FLSTN Softail Deluxe - 2006 Specifications and Reviews

2006

General information
Category	Custom / cruiser
Year	2006
Model	Harley-Davidson FLSTN Softail Deluxe
Engine and Transmission Specifications
Exhaust system	Chrome, over/under shotgun with shorty duals
Greenhouse gases	116.0 CO
Fuel consumption	5.00 litres/100 km (20.0 km/l or 47.04 mpg)
Clutch	Multi-plate clutch with diaphragm spring in oil bath
Transmission type,final drive	Belt
Gearbox	5-speed
Cooling system	Air
Fuel control	DOHC
Fuel system	Carburettor
Valves per cylinder	2
Bore x stroke	95.3 x 101.6 mm (3.8 x 4.0 inches)
Compression	8.9:1
Torque	115.26 Nm (11.8 kgf-m or 85.0 ft.lbs) @ 3000
Engine type	V2, four-stroke
Capacity:	1442.15 ccm (88.00 cubic inches)

Brakes, suspension, Frame and wheels
Rear brakes diameter	292 mm (11.5 inches)
Rear brakes	Single disc
Front brakes diameter	292 mm (11.5 inches)
Front brakes	Single disc
Rear tyre dimensions	MU85-B16
Front tyre dimensions	MT90-B16
Rake (fork angle)	32.0°
Physical measures and capacities
Fuel capacity	18.92 litres (5.00 gallons)
Wheelbase	1,638 mm (64.5 inches)
Ground clearance	122 mm (4.8 inches)
Overall length	2,405 mm (94.7 inches)
Alternate seat height	673 mm (26.5 inches) If adjustable, highest setting.
Seat height	622 mm (24.5 inches) If adjustable, lowest setting.
Weight incl. oil, gas, etc	328.4 kg (724.0 pounds)
Dry weight	314.3 kg (693.0 pounds)
Other specs
Color options	Vivid black, black cherry, black pearl, deep cobalt, brandy wine sunglo, two-tone glacier white pearl and vivid black, two-tone glacier white pearl and deep cobalt.
