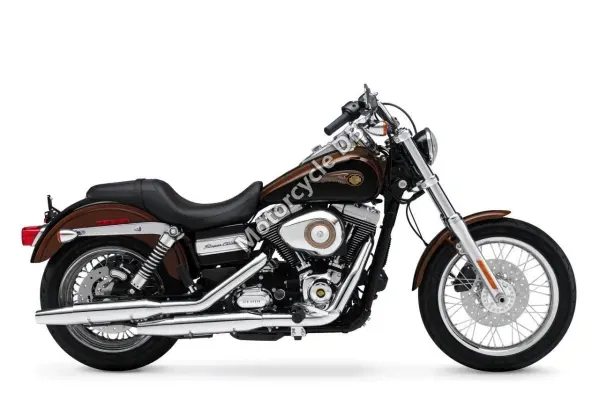

Harley-Davidson FXDC Dyna Super Glide Custom - 2012 Specifications and Reviews

Not Rated stars Average rating: Not Rated from 0 votes
.

General information

Category:Custom / cruiser
Year:2012
Model:Harley-Davidson FXDC Dyna Super Glide Custom

Engine and Transmission Specifications

Exhaust system:Chrome, staggered shorty exhaust with dual mufflers
Greenhouse gases:126.9 CO
Fuel consumption:5.47 litres/100 km (18.3 km/l or 43.00 mpg)
Driveline:Primary Drive Chain, 34/46 ratio. Final Drive Belt, 32/66 ratio.
Clutch:Multi-plate with diaphragm spring in oil bath
Transmission type,final drive:Belt
Gearbox:6-speed
Cooling system:Air
Lubrication system:Pressurized, dry-sump
Fuel control:DOHC
Fuel system:Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Bore x stroke:95.3 x 111.3 mm (3.8 x 4.4 inches)
Compression:9.2:1
Torque:124.75 Nm (12.7 kgf-m or 92.0 ft.lbs) @ 3000
Engine details:Air-cooled, Twin Cam 96
Engine type:V2, four-stroke
Capacity:1573.25 ccm (96.00 cubic inches)


Brakes, suspension, Frame and wheels

Wheels:Steel Laced
Rear brakes diameter:292 mm (11.5 inches)
Rear brakes:Single disc. 2-piston torque-free floating. Optional ABS.
Front brakes diameter:300 mm (11.8 inches)
Front brakes:Single disc. 4-piston fixed. Optional ABS.
Rear tyre dimensions:160/70-V17
Front tyre dimensions:100/90-H19
Rear suspension travel:79 mm (3.1 inches)
Rear suspension:Coil-over shock
Front suspension travel:127 mm (5.0 inches)
Front suspension:49 mm with polished aluminum fork triple clamp and dual-rate springs
Trail:119 mm (4.7 inches)
Rake (fork angle):29.0°
Frame type:Mild steel, tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded


Physical measures and capacities

Oil capacity:2.80 litres (0.18 quarts)
Fuel capacity:18.93 litres (5.00 gallons)
Wheelbase:1,631 mm (64.2 inches)
Ground clearance:117 mm (4.6 inches)
Overall length:2,360 mm (92.9 inches)
Seat height:668 mm (26.3 inches) If adjustable, lowest setting.
Weight incl. oil, gas, etc:308.0 kg (679.0 pounds)
Dry weight:293.9 kg (648.0 pounds)

Other specs

Comments:French brand.
Starter:Electric & kick
Wheelbase:1,285 mm (50.6 inches)
Overall width:685 mm (27.0 inches)
Overall height:1,150 mm (45.3 inches)
Power/weight ratio:0.0472 HP/kg
Rear tyre:3.00-12
Front tyre:2.50-12
Ignition:CDI
Torque:4.00 Nm (0.4 kgf-m or 3.0 ft.lbs) @ 5500 Revolutions">RPM
Power:4.15 Horsepower">HP (3.0 Kilowatt">kW)) @ 8000 Revolutions">RPM
Capacity:49.20 ccm (3.00 cubic inches)
Model:Goes G 55 R Sport
Color options:Vivid Black, Big Blue Pearl, Ember Red Sunglo/Merlot Sunglo, Midnight Pearl/Brilliant Silver Pearl, Tequila Sunrise/H-D Orange
Factory warranty:24 months, unlimited mileage.
Seat:One-piece, two-up Dyna classic seat
Electrical:Sealed, maintenance-free, 12V, 19-amp/hour, 270 cca
Light:55-watt low beam, 60-watt high beam
Instruments:Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, RPM/Gear display, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, 6-speed indicator light
