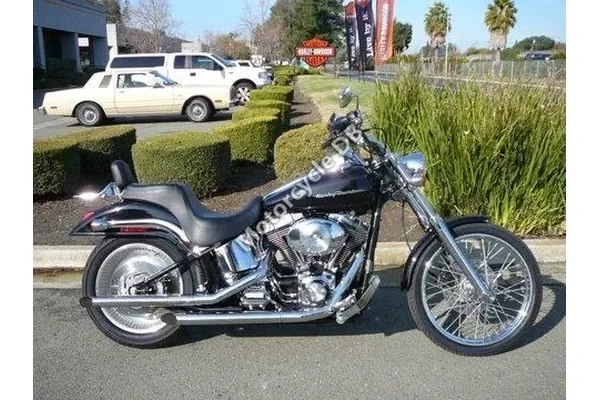

2002Harley-Davidson FXSTDI Softail Deuce

31 fields on record

The 2002 Harley-Davidson FXSTDI Softail Deuce is a classic cruiser suited for riders seeking authentic V-twin character and low-slung styling. Known for its 1450cc fuel-injected engine delivering substantial torque and timeless design, it appeals to cruiser enthusiasts who prioritize commanding presence and traditional Harley heritage over sportiness.

Capacity: 1450.0 ccm
Engine: V-Twin, four-stroke
Gearbox: 5-speed
Dry weight: 292.7 kg
Seat height: 719 mm
Power: 67.0 HP (49.3 kW)

⇄ Compare with another bike All model years

Other years 2002 2003 2004 2005 2006

How it rides

Editorial estimate from the spec sheet - not lab tested

Off-road & trail5%

Cornering30%

City riding45%

Daily riding55%

Touring55%

Two-up50%

Track5%

Best for: Built for laid-back boulevard cruising and style-focused riding rather than outright performance or cornering agility.
Built for: A classic American custom cruiser with big V-twin torque, chrome styling, and a relaxed, thumping ride that prioritizes presence over speed.
Not ideal for: Not a good fit for riders wanting sharp handling, off-road capability, or a lightweight, flickable machine for tight cornering.

Scores are derived from the spec sheet using the same model across every bike, so they compare like for like.

Will it fit you?

Worked out in your browser - nothing is sent to us

Your height

Inseam (optional)

Units

At 719mm, a rider of 68.9" with a 31" (estimated) inseam will reach the ground with both feet flat on the 2002 Harley-Davidson FXSTDI Softail Deuce, with a cramped knee angle of around 80 degrees and an upright riding position.

Assumes about 30mm of suspension sag once seated. This is an approximation from category-typical geometry, not a measurement of this bike or of you - sit on one before you buy.

More bikes at 750 mm or under — Short Kings →

Find bikes that fit your height →

Full specifications

Engine

Capacity: 1450.0 ccm
Power: 67.0 HP (49.3 kW)
Torque: 106.0 Nm (10.8 kgf-m)
Engine type: V-Twin, four-stroke
Power/weight ratio: 0.2289 HP/kg (dry)
Bore x stroke: 95.3 x 101.6 mm
Compression: 8.9:1
Cooling system: Air
Fuel system: Injection
Valves per cylinder: 2

Transmission

Gearbox: 5-speed
Transmission type: Manual
Final drive: Belt
Clutch: Multi-plate clutch with diaphragm spring in oil bath

Dimensions & weight

Wheelbase: 1690 mm
Overall length: 2422 mm
Seat height: 719 mm
Dry weight: 292.7 kg
Wet weight: 309.6 kg
Fuel capacity: 18.50 litres
Ground clearance: 141 mm
Reserve fuel capacity: 1.90 litres

Chassis & suspension

Rake (fork angle): 32.0°
Trail: 127 mm

Brakes & wheels

Front brakes: Single disc
Front brakes diameter: 292 mm
Rear brakes: Single disc
Rear brakes diameter: 292 mm
Front tyre: 90/90-21
Rear tyre: 160/70-17

Compiled from manufacturer documentation and user contributions, corrected on an ongoing basis. Spotted something wrong? Tell us.

What changed, year to year

Differences highlighted

Specification	2002	2003	2004	2005	2006
Capacity	1450 cc	1449 cc	1449 cc	1449 cc	1442 cc
Dry weight	293 kg	305 kg	292 kg	292 kg	295 kg
Seat height	719 mm	696 mm	660 mm	660 mm	—
Fuel capacity	18.5 L	20 L	18.9 L	18.5 L	18.5 L
