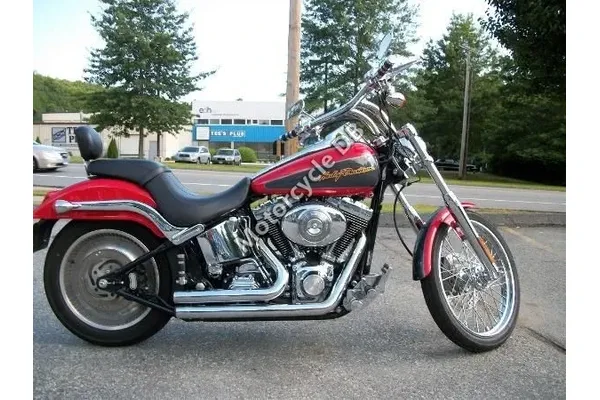

Harley-Davidson FXSTDI Softail Deuce - 2006 Specifications and Reviews

4 stars Average rating: 4 from 1 votes
.

General information

Category:Custom / cruiser
Year:2006
Model:Harley-Davidson FXSTDI Softail Deuce

Engine and Transmission Specifications

Exhaust system:Chrome, over/under shotgun duals
Greenhouse gases:116.0 CO
Fuel consumption:5.00 litres/100 km (20.0 km/l or 47.04 mpg)
Clutch:Multi-plate with diaphragm spring in oil bath
Transmission type,final drive:Belt
Gearbox:5-speed
Cooling system:Air
Fuel control:DOHC
Fuel system:Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Valves per cylinder:2
Bore x stroke:95.3 x 101.6 mm (3.8 x 4.0 inches)
Compression:8.9:1
Torque:115.26 Nm (11.8 kgf-m or 85.0 ft.lbs) @ 3000
Engine type:V2, four-stroke
Capacity:1442.15 ccm (88.00 cubic inches)


Brakes, suspension, Frame and wheels

Rear brakes:Single disc
Front brakes:Single disc
Rear tyre dimensions:160/70-B17
Front tyre dimensions:MH90-21
Trail:127 mm (5.0 inches)
Rake (fork angle):32.0°

Physical measures and capacities

Fuel capacity:18.54 litres (4.90 gallons)
Wheelbase:1,692 mm (66.6 inches)
Ground clearance:142 mm (5.6 inches)
Overall length:2,423 mm (95.4 inches)
Weight incl. oil, gas, etc:309.3 kg (682.0 pounds)
Dry weight:295.3 kg (651.0 pounds)


Other specs

Color options:Vivid black, brilliant silver, black cherry, black pearl, deep cobalt, glacier white pearl, rich sunglo blue, brandy wine sunglo, two-tone rich sunglo blue and chopper blue, two-tone black cherry and black pearl, two-tone fire red pearl and vivid black, t
