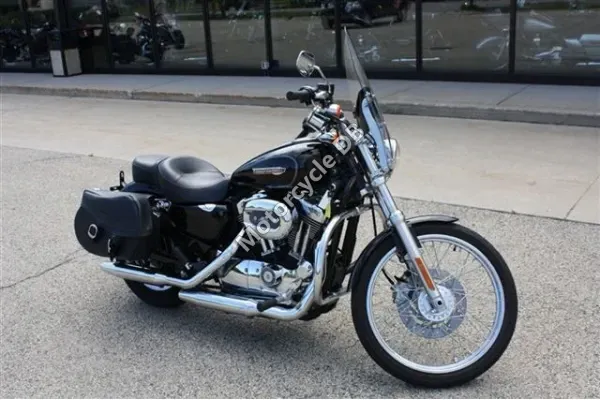

Harley-Davidson XL 1200C Sportster 1200 Custom - 2010 Specifications and Reviews
General information | |
| Category | Custom / cruiser |
| Year | 2010 |
| Model | Harley-Davidson XL 1200C Sportster 1200 Custom |
Engine and Transmission Specifications | |
| Exhaust system | Chrome, staggered shorty exhaust with dual mufflers |
| Clutch | 9-plate, wet |
| Transmission type,final drive | Belt |
| Gearbox | 5-speed |
| Cooling system | Air |
| Lubrication system | Dry sump |
| Fuel control | OHV |
| Fuel system | Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
| Valves per cylinder | 2 |
| Bore x stroke | 88.9 x 96.8 mm (3.5 x 3.8 inches) |
| Compression | 9.7:1 |
| Torque | 98.00 Nm (10.0 kgf-m or 72.3 ft.lbs) @ 3200 |
| Engine type | V2, four-stroke |
| Capacity: | 1202.00 ccm (73.35 cubic inches) |
Brakes, suspension, Frame and wheels | |
| Rear brakes diameter | 292 mm (11.5 inches) |
| Rear brakes | Single disc. Single piston |
| Front brakes diameter | 292 mm (11.5 inches) |
| Front brakes | Single disc. Dual piston |
| Rear tyre dimensions | 150/80-16 |
| Front tyre dimensions | MH90-21 |
| Rear suspension travel | 54 mm (2.1 inches) |
| Rear suspension | Coil-over, preload dual adjustments |
| Front suspension travel | 145 mm (5.7 inches) |
| Front suspension | 39mm |
| Trail | 119 mm (4.7 inches) |
| Rake (fork angle) | 30.0° |
| Frame type | Mild steel tubular frame; circular sections; cast junctions |
| | |
Physical measures and capacities | |
| Oil capacity | 2.50 litres (0.17 quarts) |
| Fuel capacity | 17.00 litres (4.49 gallons) |
| Wheelbase | 1,520 mm (59.8 inches) |
| Ground clearance | 135 mm (5.3 inches) |
| Overall length | 2,275 mm (89.6 inches) |
| Seat height | 710 mm (28.0 inches) If adjustable, lowest setting. |
| Dry weight | 255.0 kg (562.2 pounds) |
| | |
Other specs | |
| Color options | Vivid Black, Red Hot Sunglo, Scarlet Red/Vivid Black, Flame Blue Pearl/Brilliant Silver Pearl |
| Starter | Electric |
