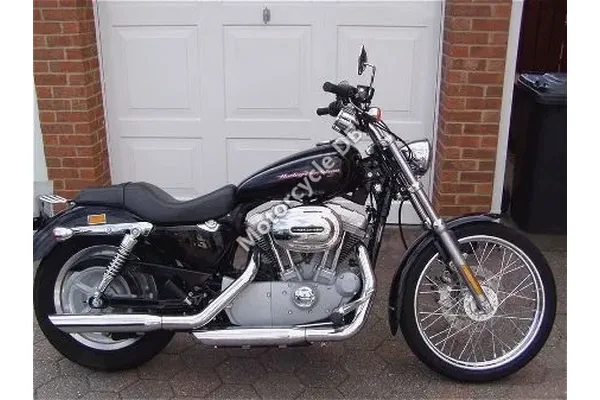

Harley-Davidson XL 883 Sportster - 2005 Specifications and Reviews

2005
Not Rated stars Average rating: Not Rated from 0 votes
.

General information

Category:Custom / cruiser
Year:2005
Model:Harley-Davidson XL 883 Sportster

Engine and Transmission Specifications

Clutch:Multi-plate clutch with diaphragm spring in oil bath.
Transmission typefinal drive:Belt
Gearbox:5-speed
Cooling system:Air
Valves per cylinder:2
Fuel system:Carburettor
Bore x stroke:76.2 x 96.8 mm (3.0 x 3.8 inches)
Compression:9.0:1
Torque:69.00
Stroke:4
Engine type:V2
Capacity:883.00 ccm (53.88 cubic inches)


Physical measures and capacities

Wheelbase:1,520 mm (59.8 inches)
Ground clearance:141 mm (5.6 inches)
Overall length:2,260 mm (89.0 inches)
Seat height:693 mm (27.3 inches) If adjustable, lowest setting.
Dry weight:251.0 kg (553.4 pounds)

Harley-Davidson XL 883 Sportster dimensions and frame

Exhaust system:Staggered shorty duals
Rear brakes diameter:292 mm (11.5 inches)
Rear brakes:Single disc
Front brakes diameter:292 mm (11.5 inches)
Front brakes:Single disc
Rear tyre dimensions:150/80-16
Front tyre dimensions:100/90-19
Rake (fork angle):29.6°

Speed and acceleration

Color options:Vivid black, brilliant silver pearl, sierra red pearl, chopper blue pearl
Fuel capacity:12.90 litres (3.41 gallons)
