Cruisers

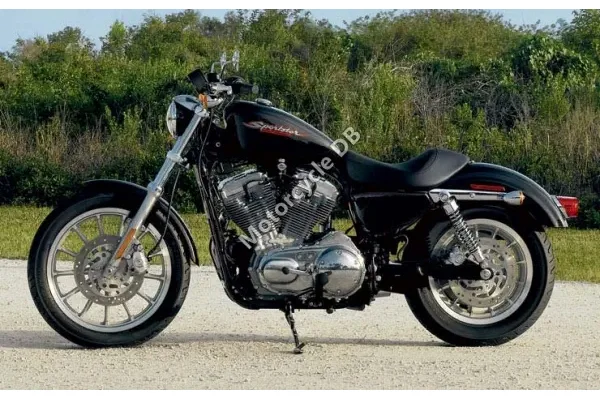

2007Harley-Davidson XL883R Sportster R

33 fields on record

The 2007 Harley-Davidson XL883R Sportster R is an air-cooled cruiser designed for riders seeking classic styling with manageable performance. Its 883cc V-twin engine delivers approachable torque and excellent fuel economy, making it ideal for both new and experienced riders. Known for its iconic Harley character and customization potential, the Sportster R represents accessible entry into the cruiser lifestyle.

Capacity: 882.7 ccm
Engine: V-Twin, four-stroke
Gearbox: 5-speed
Dry weight: 257.6 kg
Seat height: 759 mm
Power: 56.5 HP (41.6 kW)

⇄ Compare with another bike All model years ⚠ Recalls listed (3)

How it rides

Editorial estimate from the spec sheet - not lab tested

Off-road & trail5%

Cornering45%

City riding60%

Daily riding60%

Touring35%

Two-up30%

Track15%

Best for: Built as a street-oriented custom cruiser with a mild performance edge, ideal for weekend rides, boulevard cruising, and short spirited jaunts rather than outright speed or distance touring.
Built for: Delivers classic Harley V-twin charm with punchy low-rpm torque, a raw air-cooled soundtrack, and a stripped-down, flat-track-inspired attitude.
Not ideal for: Not the right choice for riders seeking high-speed touring comfort, long-distance wind protection, or any genuine off-road capability.

Scores are derived from the spec sheet using the same model across every bike, so they compare like for like.

Will it fit you?

Worked out in your browser - nothing is sent to us

Your height

Inseam (optional)

Units

At 759mm, a rider of 68.9" with a 31" (estimated) inseam will reach the ground with both feet flat on the 2007 Harley-Davidson XL883R Sportster R, with a cramped knee angle of around 85 degrees and an upright riding position.

Assumes about 30mm of suspension sag once seated. This is an approximation from category-typical geometry, not a measurement of this bike or of you - sit on one before you buy.

More bikes at 751-820 mm — Middle Ground →

Find bikes that fit your height →

Full specifications

Engine

Capacity: 882.7 ccm
Power: 56.5 HP (41.6 kW)
CO2 Emissions: 91 CO2 g/km
Torque: 74.6 Nm (7.6 kgf-m) @ 3500 RPM
Engine type: V-Twin, four-stroke
Fuel consumption: 3.90 litres/100 km (25.6 km/l)
Power/weight ratio: 0.2193 HP/kg (dry)
Bore x stroke: 76.2 x 96.8 mm
Compression: 8.9:1
Cooling system: Air
Fuel system: Injection
Starting: Electric

Transmission

Gearbox: 5-speed
Transmission type: Manual
Final drive: Belt
Clutch: Multi-plate with diaphragm spring in oil bath

Dimensions & weight

Wheelbase: 1524 mm
Overall length: 2289 mm
Seat height: 759 mm
Dry weight: 257.6 kg
Wet weight: 266.7 kg
Fuel capacity: 12.50 litres
Ground clearance: 142 mm

Chassis & suspension

Rear suspension: PRICING
Rake (fork angle): 29.6°

Brakes & wheels

Front brakes: Single disc. Dual-piston
Front brakes diameter: 292 mm
Rear brakes: Single disc. Single-piston
Rear brakes diameter: 292 mm
Front tyre: 100/90-H19
Rear tyre: 150/80-B16

Other

Color options: Vivid black, pewter pearl (new), mirage orange pearl

Compiled from manufacturer documentation and user contributions, corrected on an ongoing basis. Spotted something wrong? Tell us.

Safety Recalls

⚠ 3 recalls may apply

ENGINE AND ENGINE COOLING:EXHAUST SYSTEM:MANIFOLD/HEADER/MUFFLER/TAIL PIPEJul 2007 · 07V296000

CERTAIN MOTORCYCLES WERE BUILT WITH A CONDITION WHEREBY THE PANT LEG OF SOME RIDERS CAN HAVE DIRECT CONTACT WITH THE EXHAUST PIPE.

Risk: THIS CONDITION COULD CAUSE THE PANT LEG TO CHAR OR BURN, WHICH COULD LEAD TO THE POSSIBILITY OF INJURY TO THE RIDER.

Remedy: DEALERS WILL ADD A NEW EXHAUST SHIELD WHICH PROVIDES ADDITIONAL COVERAGE OFTHE EXHAUST PIPE. THE RECALL BEGAN ON JULY 12, 2007. OWNERS MAY CONTACT HARLEY-DAVIDSON AT 1-414-343-4056.

TIRESFeb 2007 · 07V025000

CERTAIN SPORTSTER AND DYNA MODEL MOTORCYCLES WERE BUILT WITH AN INCORRECT FRONT TIRE.

Risk: THIS INCORRECT TIRE COULD CAUSE PERFORMANCE ISSUES, WHICH COULD RESULT IN A CRASH.

Remedy: DEALERS WILL INSPECT THE FRONT TIRE AND REPLACE IT IF NECESSARY. THE RECALL BEGAN ON MARCH 5, 2007. OWNERS MAY CONTACT HARLEY-DAVIDSON AT 1-414-343-4056.

ELECTRICAL SYSTEM:ALTERNATOR/GENERATOR/REGULATORDec 2006 · 06V476000

ON CERTAIN MOTORCYCLES, AS A RESULT OF A GREATER BODY THICKNESS THAN USED IN PREVIOUS MODEL YEARS, THE VOLTAGE REGULATOR MAY CONTACT THE FRONT FENDER UNDER CERTAIN CONDITIONS. IN SOME CASES THIS CONTACT MAY ALLOW THE FRONT FENDER TO CATCH ON THE TOP SIDE OF THE REGULATOR BODY WHICH COULD IMPEDE THE OPERATOR'S ABILITY TO STEER THE VEHICLE.

Risk: THIS COULD RESULT IN A CRASH WHICH COULD CAUSE INJURY OR DEATH TO THE RIDER.

Remedy: ON MOTORCYCLES WHICH DO NOT HAVE ACCESSORY ENGINE GUARDS, DEALERS WILL INSTALL AN INTERMEDIATE MOUNTING BRACKET THAT WILL RELOCATE THE VOLTAGE REGULATOR TO A POSITION WHICH PROVIDES MORE CLEARANCE FROM THE FRONT FENDER. ON VEHICLES WITH AN ACCESSORY ENGINE GUARDS, DEALERS WILL INSTALL THE THINNNER DIMENSION VOLTAGE REGULATOR TO AVOIDE THE FRONT FENDER CLEARANCE PROBLEM. THE RECALL BEGAN ON JANUARY 22, 2007. A SECOND CUSTOMER LETTER REFLECTING THE ABOVE REMEDY WILL BE SENT TO OWNERS ON MARCH 16, 2007. OWNERS MAY CONTACT HARLEY-DAVIDSON AT 1-414-343-4056.

These recalls cover some 2007 bikes of this model. Whether one applies to a specific bike, and whether the repair has already been done, depends on its VIN — check your VIN with NHTSA or ask a dealer.

Source: NHTSA. View all Harley-Davidson recalls →
