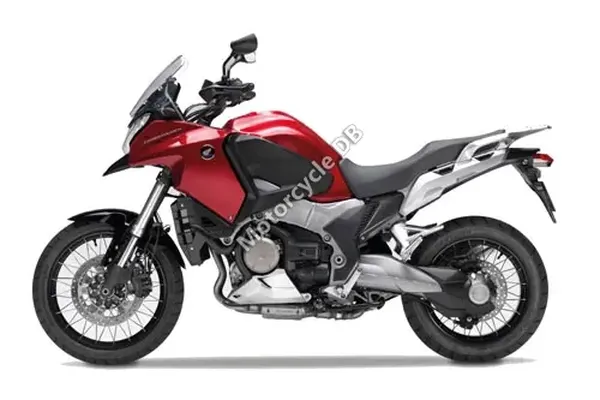

Honda VFR1200X Crosstourer - 2014 Specifications and Reviews

The 2014 Honda VFR1200X Crosstourer is a sport-touring motorcycle designed for adventurous riders seeking versatility and comfort on mixed terrain. Powered by a 1237cc V4 engine delivering 127 horsepower, it combines aggressive styling with practical features for long-distance travel. Known for its smooth power delivery and capable handling across pavement and light off-road conditions.

Not Rated stars Average rating: Not Rated from 0 votes
.

General information

CategorySport touring
Year2014
ModelHonda VFR1200X Crosstourer



Engine and Transmission Specifications

Greenhouse gases119.9 CO
Fuel consumption5.17 litres/100 km (19.3 km/l or 45.50 mpg)
ClutchWet multiplate (* Wet multiplate, hydraulic 2-clutch)
Transmission type,final driveChain
Gearbox6-speed
Cooling systemLiquid
IgnitionComputer-controlled digital transistorised with electronic advance
Fuel controlSOHC
Fuel systemInjection. PGM-FI
Valves per cylinder4
Bore x stroke81.0 x 60.0 mm (3.2 x 2.4 inches)
Compression12.0:1
Torque126.00 Nm (12.8 kgf-m or 92.9 ft.lbs) @ 6500
Power127.40
Engine details76 degree cyclinder angle
Engine typeV4, four-stroke
Capacity:1237.00 ccm (75.48 cubic inches)

Brakes, suspension, Frame and wheels

Rear brakes diameter276 mm (10.9 inches)
Rear brakesSingle disc. Combined ABS
Front brakes diameter310 mm (12.2 inches)
Front brakesDouble disc. Combined ABS
Rear tyre dimensions150/70-R17
Front tyre dimensions110/80-R19
Rear suspensionPro-Link with gas-charged damper, preload and stepless rebound damping adjustment
Front suspension43mm inverted telescopic forks with hydraulic damping, preload and rebound damping adjustment
Trail107 mm (4.2 inches)
Rake (fork angle)28.0°
Frame typeDiamond; aluminium twin-spar

Physical measures and capacities

Fuel capacity21.50 litres (5.68 gallons)
Wheelbase1,595 mm (62.8 inches)
Ground clearance180 mm (7.1 inches)
Overall width915 mm (36.0 inches)
Overall length2,285 mm (90.0 inches)
Overall height1,335 mm (52.6 inches)
Seat height850 mm (33.5 inches) If adjustable, lowest setting.
Weight incl. oil, gas, etc275.0 kg (606.3 pounds)

Other specs

CommentsModel ID: VFR1200F with Dual Clutch Automatic Transmission
Factory warrantyOne year. Unlimited milage. Transferable.
Wheelbase1,544 mm (60.8 inches)
Rear tyre190/55-ZR17
Front tyre120/70-ZR17
Rear wheel travel130 mm (5.1 inches)
Rear SuspensionPro Arm single-side swingarm with Pro-Link¿ single gas-charged shock with remote spring-preload adjustability and rebound-damping adjustability
Front wheel travel109 mm (4.3 inches)
Front Suspension43mm cartridge fork with spring-preload adjustability
Emission detailsMeets current California Air Resources Board (CARB) and EPA standards.
Valves per cylinder4
Bore x Stroke81.0 x 60.0 mm (3.2 x 2.4 inches)
Compression12.0:1
ModelHonda VFR1200F DCT
Color optionsMatt Titanium Blade Metallic, Camo
StarterElectric

Rider Reviews

Add a Comment


Please Login or Register if you would like to leave a comment.

⚠ Safety Recalls (3)

AIR BAGS:FRONTAL:PASSENGER SIDE:INFLATOR MODULE Jun 2019 · 19V502000

Honda (American Honda Motor Co.) is recalling certain 2009-2014 Acura TSX, 2011-2014 TSX Sport Wagon, 2010-2013 ZDX, 2008-2012 Honda Accord, 2010-2011 Accord Crosstour, 2006-2011 Civic and Civic Hybrid, 2008-2010 Civic GX NGV, 2012-2015 Crosstour, 2007-2011 CR-V, 2009-2013 Fit, 2014 Fit EV, 2010-2014 Insight, and 2009-2015 Pilot vehicles. The vehicles are equipped with passenger frontal air bag inflators assembled as a recall remedy part or replacement service part, that may explode due to propellant degradation occurring after long-term exposure to high absolute humidity, temperature and temperature cycling.

Risk: An inflator explosion may result in sharp metal fragments striking the driver or other occupants resulting in serious injury or death.

Remedy: Honda will notify owners, and dealers will replace the passenger frontal air bag inflator, free of charge. The recall began August 12, 2019. Owners may contact Honda customer service at 1-888-234-2138. Honda's numbers for this recall are F5F and Q5E.

AIR BAGS:FRONTAL:PASSENGER SIDE:INFLATOR MODULE May 2019 · 19V378000

Honda (American Honda Motor Co.) is recalling certain 2009-2014 Acura TSX, 2011-2013 TSX Sport Wagon, and 2010-2012 ZDX and 2008-2012 Honda Accord, 2010-2011 Accord Crosstour, 2006-2011 Civic, Civic Hybrid and Civic NGV, 2012-2014 Crosstour, 2007-2011 CR-V, 2009-2013 Fit, 2010-2013 Insight, and 2009-2015 Pilot vehicles. The front passenger air bag inflator may have been installed incorrectly during replacement.

Risk: An incorrectly installed air bag inflator may not properly deploy the passenger frontal air bag in the event of a crash, increasing the risk of injury.

Remedy: Honda will notify owners, and dealers will inspect the inflator installation and, if necessary, replace the passenger frontal air bag module assembly, free of charge. The recall began July 5, 2019. Owners may contact Honda customer service at 1-888-234-2138. Honda's numbers for this recall are M4O, P4R, T4Q, and W4P.

AIR BAGS:FRONTAL:PASSENGER SIDE:INFLATOR MODULE Sep 2018 · 18V661000

Honda (American Honda Motor Co.) is recalling certain 2014 Honda Insight and Acura TSX and TSX Wagon, 2014-2015 Honda Crosstour and Pilot vehicles nationwide, as well as certain 2014 Honda FCX Clarity and Fit EV vehicles in Florida, Hawaii, Puerto Rico, Texas, Alabama, Georgia, Louisiana, Mississippi, South Carolina, California, American Samoa, Guam, the Northern Mariana Islands (Saipan) and the U.S. Virgin Islands. Honda is also recalling certain 2011-2013 Acura TSX, TSX Wagon and ZDX, Honda Crosstour, Insight, Fit and Pilot vehicles, 2011-2012 Honda Accord and 2011 Honda Civic NGV, Civic, Civic Hybrid and CR-V vehicles in Arizona, Arkansas, Delaware, the District of Columbia, Illinois, Indiana, Kansas, Kentucky, Maryland, Missouri, Nebraska, Nevada, New Jersey, New Mexico, North Carolina, Ohio, Oklahoma, Pennsylvania, Tennessee, Virginia and West Virginia. Lastly, Honda is recalling certain 2010-2013 Acura TSX and ZDX, Honda Crosstour, Fit, Insight and Pilot, 2011-2013 TSX Wagon, 2010-2012 Honda Accord and 2010-2011 Honda Civic NGV, Civic, Civic Hybrid and CR-V vehicles in Alaska, Colorado, Connecticut, Idaho, Iowa, Maine, Massachusetts, Michigan, Minnesota, Montana, New Hampshire, New York, North Dakota, Oregon, Rhode Island, South Dakota, Utah, Vermont, Washington, Wisconsin and Wyoming. These vehicles are equipped with certain air bag air bag inflators assembled as part of the frontal air bag modules, and used as original equipment or replacement equipment (such as after a vehicle crash necessitating replacement of the original air bags), may explode due to propellant degradation occurring after long-term exposure to higher absolute humidity, temperature and temperature cycling.

Risk: An inflator explosion may result in sharp metal fragments striking the driver or other occupants resulting in serious injury or death.

Remedy: Honda will notify owners, and dealers will replace the passenger frontal air bag inflator, free of charge. The recall began November 6, 2018. Owners may contact Honda customer service at 1-888-234-2138. Honda's numbers for this recall are M2J and S2K.

Source: NHTSA. View all Honda recalls →
