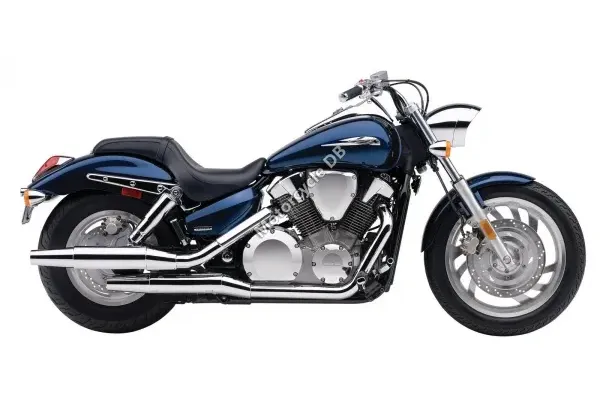

Honda VTX1300T - 2012 Specifications and Reviews
General information | |
| Category: | Custom / cruiser |
| Year: | 2012 |
| Model: | Honda VTX1300T |
Engine and Transmission Specifications | |
| Emission details: | Meets current EPA standards. California version meets current CARB standards and may differ slightly due to emissions equipment. |
| Transmission type,final drive: | Shaft drive (cardan) |
| Gearbox: | 5-speed |
| Cooling system: | Liquid |
| Ignition: | Digital with three-dimensional mapping, two spark plugs per cylinder |
| Fuel control: | SOHC |
| Fuel system: | Carburettor. Single 38mm constant-velocity carburetor |
| Valves per cylinder: | 3 |
| Bore x stroke: | 89.5 x 104.3 mm (3.5 x 4.1 inches) |
| Compression: | 9.2:1 |
| Engine details: | 52 degree V-twin |
| Engine type: | V2, four-stroke |
| Capacity: | 1312.00 ccm (80.06 cubic inches) |
Brakes, suspension, Frame and wheels | |
| Rear brakes diameter: | 296 mm (11.7 inches) |
| Rear brakes: | Single disc. Twin-piston caliper |
| Front brakes diameter: | 336 mm (13.2 inches) |
| Front brakes: | Double disc. Twin-piston caliper |
| Rear tyre dimensions: | 170/80-15 |
| Front tyre dimensions: | 140/80-17 |
| Rear suspension travel: | 94 mm (3.7 inches) |
| Rear suspension: | Rear: Dual shocks with five-position spring-preload adjustability |
| Front suspension travel: | 130 mm (5.1 inches) |
| Front suspension: | 41mm fork |
| Trail: | 144 mm (5.7 inches) |
| Rake (fork angle): | 32.0° |
Physical measures and capacities | |
| Fuel capacity: | 18.17 litres (4.80 gallons) |
| Wheelbase: | 1,669 mm (65.7 inches) |
| Seat height: | 696 mm (27.4 inches) If adjustable, lowest setting. |
| Weight incl. oil, gas, etc: | 339.3 kg (748.0 pounds) |
Other specs | |
| Wheelbase: | 1,544 mm (60.8 inches) |
| Ground clearance: | 125 mm (4.9 inches) |
| Overall width: | 740 mm (29.1 inches) |
| Overall length: | 2,250 mm (88.6 inches) |
| Overall height: | 1,220 mm (48.0 inches) |
| Wheels: | Die cast aluminium |
| Rear tyre: | 190/55-ZR17 |
| Front tyre: | 120/70-ZR17 |
| Rear wheel travel: | 130 mm (5.1 inches) |
| Rear Suspension: | Pro Arm single-side swingarm with Pro-Link single gas-charged shock with remote spring-preload adjustability and rebound-damping adjustability |
| Front wheel travel: | 119 mm (4.7 inches) |
| Front Suspension: | 43mm cartridge fork with spring-preload adjustability |
| Clutch: | Electronic Dual Clutch |
| Valves per cylinder: | 4 |
| Bore x Stroke: | 81.0 x 60.0 mm (3.2 x 2.4 inches) |
| Compression: | 12.0:1 |
| Torque: | 129.00 Nm (13.2 kgf-m or 95.2 ft.lbs) @ 8750 Revolutions">RPM |
| Capacity: | 1237.00 ccm (75.48 cubic inches) |
| Model: | Honda VFR1200FD Dual Clutch Transmission |
| Color options: | Black, Titanium, Dark Red |
| Factory warranty: | One Year. Unlimited-mileage limited warranty extended coverage available with a Honda Protection Plan. |
| Starter: | Electric |
