Naked Motorcycles
2005KTM 990 Super Duke Orange
37 fields on record
The 2005 KTM 990 Super Duke Orange is a lightweight naked bike that appeals to aggressive riders seeking raw performance and handling precision. Powered by a potent 999cc V-twin producing 118 horsepower, it's renowned for its sharp agility, distinctive orange aesthetics, and uncompromising sportiness that defined a generation of supernaked motorcycles.
- Capacity
- 999.0 ccm
- Engine
- V -Twin twin, four-stroke
- Gearbox
- 6-speed
- Dry weight
- 184.0 kg
- Seat height
- 855 mm
- Power
- 118.0 HP
How it rides
Editorial estimate from the spec sheet - not lab tested- Best for
- Built as a street-focused naked streetfighter, it excels at spirited backroad blasts and canyon carving rather than long-distance cruising.
- Built for
- It rewards an assertive, engaged riding style with a raw, muscular V-twin character and razor-sharp cornering manners.
- Not ideal for
- It is not a good fit for beginners, taller-distance tourers, or anyone wanting a plush, relaxed two-up traveling companion.
Scores are derived from the spec sheet using the same model across every bike, so they compare like for like.
Will it fit you?
Worked out in your browser - nothing is sent to usEngine
- Capacity
- 999.0 ccm
- Power
- 118.0 HP
- Torque
- 100.0 Nm (10.2 kgf-m)
- Engine type
- V -Twin twin, four-stroke
- Power/weight ratio
- 0.6413 HP/kg
- Bore x stroke
- 101.0 x 62.4 mm
- Compression
- 11.5:1
- Cooling system
- Liquid
- Fuel system
- Carburettor
- Starting
- Electric
- Ignition
- Kokusan digital 4K-3A
- Lubrication system
- Pressure lubrication
Transmission
- Gearbox
- 6-speed
- Transmission type
- Manual
- Final drive
- Chain
- Clutch
- Wet multi-disc clutch, operated hydraulically
Dimensions & weight
- Wheelbase
- 1438 mm
- Overall width
- 990 mm
- Overall height
- 990 mm
- Seat height
- 855 mm
- Dry weight
- 184.0 kg
- Fuel capacity
- 15.00 litres
- Ground clearance
- 165 mm
Chassis & suspension
- Frame
- Chromium-molybdenum, powder-coated
- Front suspension
- WP-USD 48 mm (1.89´)
- Rear suspension
- WP - Monoshock
- Rear wheel travel
- 335 mm
- Rake (fork angle)
- 23.5°
- Trail
- 103 mm
Brakes & wheels
- Front brakes
- Double disc. 4-piston caliper
- Front brakes diameter
- 320 mm
- Rear brakes
- Single disc. 1-piston caliper
- Rear brakes diameter
- 240 mm
- Front tyre
- 120/70-ZR17
- Rear tyre
- 180/55-ZR17
Other
- Color options
- Orange
Compiled from manufacturer documentation and user contributions, corrected on an ongoing basis. Spotted something wrong? Tell us.
Rider Reviews
Common questions
What is the engine size of the KTM 990 Super Duke Orange?
The 2005 KTM 990 Super Duke Orange has a Capacity of 999.0 ccm (60.96 cubic inches).
What engine power does the KTM 990 Super Duke Orange have?
The 2005 KTM 990 Super Duke Orange has a Power of 118.0 HP.
How many gears does the KTM 990 Super Duke Orange have?
The 2005 KTM 990 Super Duke Orange has a Gearbox of 6-speed.
What is the torque of the KTM 990 Super Duke Orange?
The 2005 KTM 990 Super Duke Orange has a Torque of 100.0 Nm (10.2 kgf-m or 73.8 ft.lbs).
How much does the KTM 990 Super Duke Orange weigh?
The 2005 KTM 990 Super Duke Orange has a Dry weight of 184.0 kg (405.7 pounds).
Shop this bike
Affiliate linksWe may earn a commission from qualifying eBay or Amazon purchases made through these links. As an Amazon Associate I earn from qualifying purchases.
Similar bikes
Same category, weighted similarity

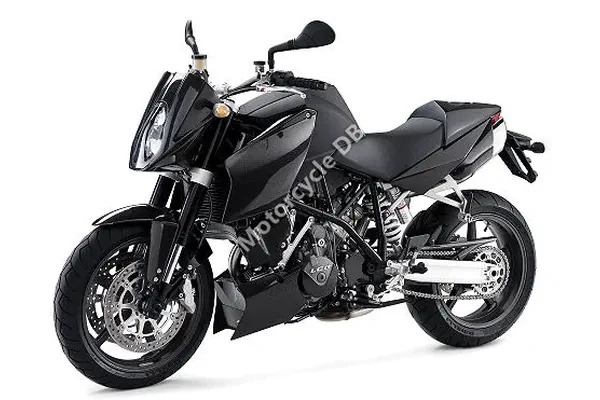

2005 KTM 990 Super Duke Black
999 cc · 184 kg · 855 mm
2006 KTM 990 Superduke Orange
999 cc · 184 kg · 855 mm

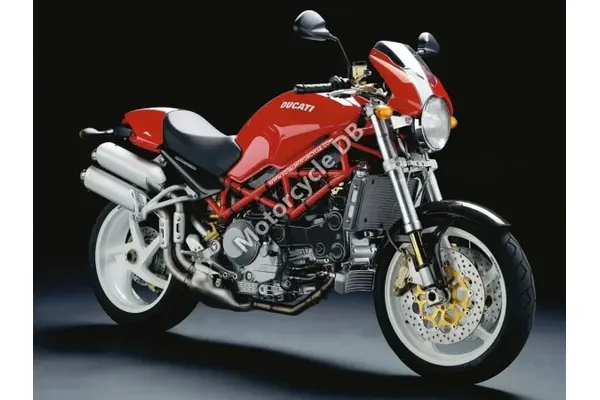

2005 Ducati Monster S4R
996 cc · 181 kg · 800 mm

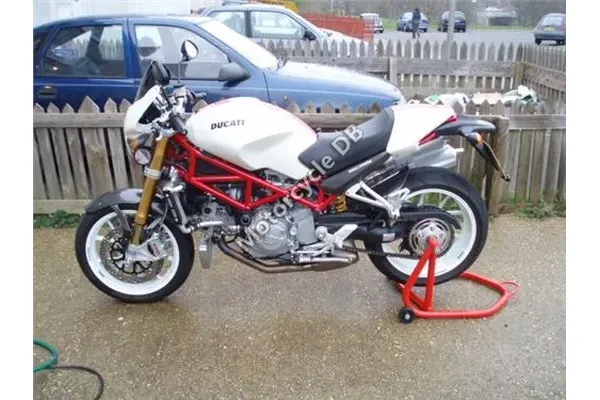

2006 Ducati Monster S4R
996 cc · 181 kg · 800 mm

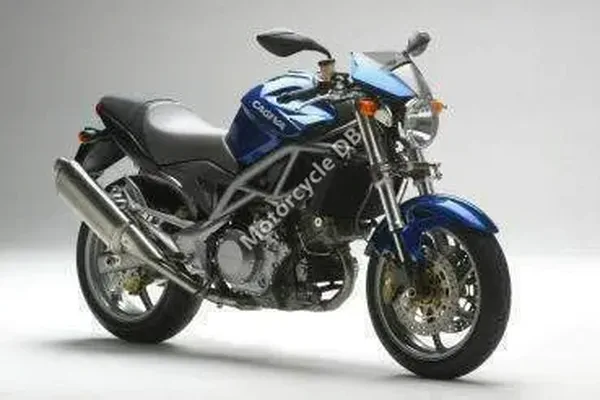

2005 Cagiva Raptor 1000
995 cc · 192 kg · 805 mm

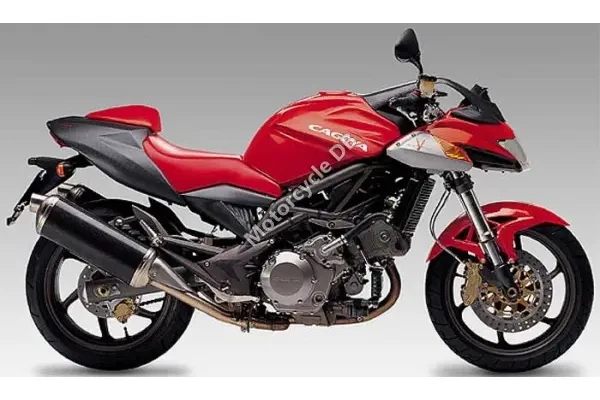

2005 Cagiva V Raptor 1000
