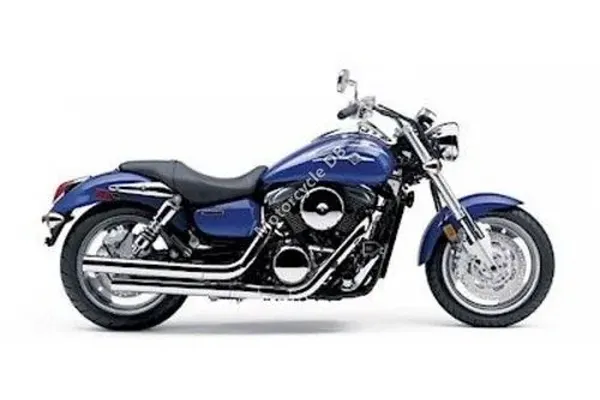

Kawasaki Vulcan 1600 Mean Streak - 2005 Specifications and Reviews

Not Rated stars Average rating: Not Rated from 0 votes

General information

Category:Custom / cruiser
Model:Kawasaki Vulcan 1600 Mean Streak

Engine and Transmission Specifications

Transmission type,final drive:Shaft drive (cardan)
Cooling system:Liquid
Ignition:TCBI with Digital Advance and Kawasaki Throttle Responsive Ignition Control (K-TRIC)
Fuel control:SOHC
Fuel system:Carburettor. Keihin CVK40
Valves per cylinder:4
Bore x stroke:102.0 x 95.0 mm (4.0 x 3.7 inches)
Engine type:V2, four-stroke
Capacity:1550.00 ccm (94.58 cubic inches)

Brakes, suspension, Frame and wheels

Rear brakes diameter:300 mm (11.8 inches)
Rear brakes:Single disc
Front brakes diameter:300 mm (11.8 inches)
Front brakes:Double disc
Rear tyre dimensions:170/60-R17
Front tyre dimensions:130/70-R17
Rear suspension:Dual hydraulic air shocks
Front suspension:43mm inverted hydraulic telescopic cartridge-style fork
Rake (fork angle):32.0°
Frame type:High-tensile steel, double cradle

Physical measures and capacities

Fuel capacity:17.03 litres (4.50 gallons)
Wheelbase:1,704 mm (67.1 inches)
Ground clearance:124 mm (4.9 inches)
Overall width:851 mm (33.5 inches)
Overall height:1,100 mm (43.3 inches)
Seat height:701 mm (27.6 inches) If adjustable, lowest setting.
Dry weight:288.9 kg (637.0 pounds)

Other specs

Color options:Red, Black
