Category: | Enduro / offroad |
Year: | 2008 |

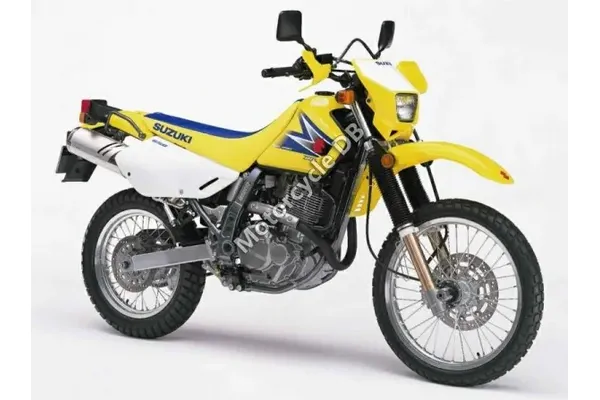

Model: | Suzuki DR650SE |
Engine and Transmission Specifications |
Transmission typefinal drive: | Chain |
Gearbox: | 5-speed |
Cooling system: | Oil & air |
Lubrication system: | Wet sump |
Starter: | Electric |
Ignition: | Digital/CDI |
Fuel control: | SOHC |
Fuel system: | Carburettor. Mikuni BST40 |
Bore x stroke: | 100.0 x 82.0 mm (3.9 x 3.2 inches) |
Compression: | 9.5:1 |
Stroke: | 4 |
Engine type: | Single cylinder |
Capacity: | 644.00 ccm (39.30 cubic inches) |
Physical measures and capacities |
Wheelbase: | 1,490 mm (58.7 inches) |
Ground clearance: | 265 mm (10.4 inches) |
Overall width: | 865 mm (34.1 inches) |
Overall length: | 2,255 mm (88.8 inches) |
Overall height: | 1,195 mm (47.0 inches) |
Seat height: | 885 mm (34.8 inches) If adjustable, lowest setting. |
Dry weight: | 147.0 kg (324.1 pounds) |
|
Suzuki DR650SE dimensions and frame |
Rear brakes: | Single disc |
Front brakes: | Single disc |
Rear tyre dimensions: | 120/90-S17 |
Front tyre dimensions: | 90/90-S21 |
Rear suspension: | Link-type, fully adjustable spring preload, gas/oil damped, adjustable compression damping, 10.2 inches of travel, (low seat setting 8.7 in. of travel) |
Front suspension: | Telescopic, leading axle, oil damped, 10.2 inches of travel, (low seat setting 8.7 in. of travel) |
Frame type: | Http |
Speed and acceleration |
Color options: | Black, Blue |
Fuel capacity: | 13.00 litres (3.43 gallons) |
