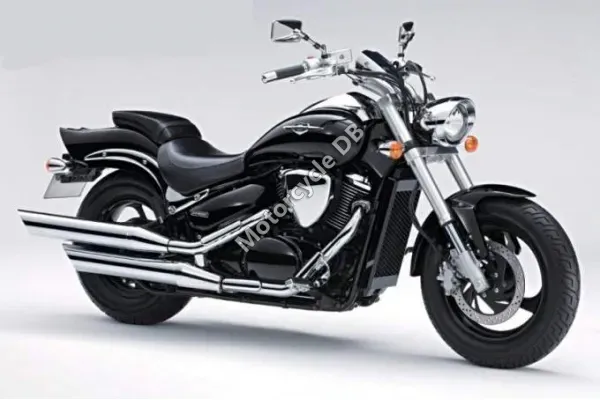

Suzuki Intruder M800Z - 2009 Specifications and Reviews
2009
General information | |
| Category: | Custom / cruiser |
| Year: | 2009 |
| Model: | Suzuki Intruder M800Z |
Engine and Transmission Specifications | |
| Transmission typefinal drive: | Shaft drive (cardan) |
| Gearbox: | 5-speed |
| Cooling system: | Liquid |
| Lubrication system: | Wet sump |
| Starter: | Electric |
| Ignition: | Electronic ignition (Transistorised) |
| Fuel control: | SOHC |
| Fuel system: | Injection |
| Bore x stroke: | 83.0 x 74.4 mm (3.3 x 2.9 inches) |
| Compression: | 9.4:1 |
| Stroke: | 4 |
| Engine type: | V2 |
| Capacity: | 805.00 ccm (49.12 cubic inches) |
Physical measures and capacities | |
| Wheelbase: | 1,655 mm (65.2 inches) |
| Overall width: | 920 mm (36.2 inches) |
| Overall length: | 2,395 mm (94.3 inches) |
| Overall height: | 1,125 mm (44.3 inches) |
| Seat height: | 700 mm (27.6 inches) If adjustable, lowest setting. |
| Dry weight: | 247.0 kg (544.5 pounds) |
Suzuki Intruder M800Z dimensions and frame | |
| Rear brakes: | Expanding brake (drum brake) |
| Front brakes: | Single disc |
| Rear tyre dimensions: | 170/80-M15 |
| Front tyre dimensions: | 130/90-M16 |
| Rear suspension: | Link type, coil spring, oil damped |
| Front suspension: | Inverted telescopic, coil spring, oil damped |
Speed and acceleration | |
| Fuel capacity: | 15.50 litres (4.10 gallons) |
