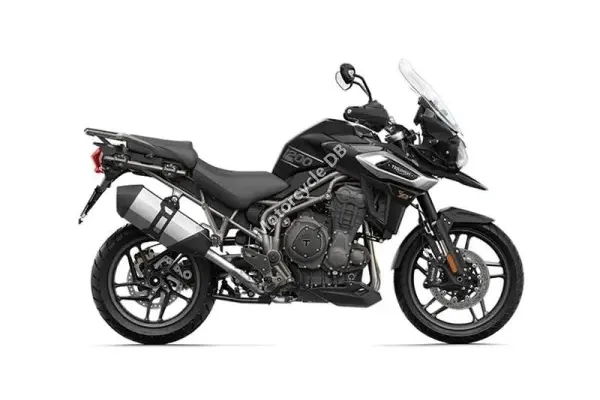

Triumph Tiger 1200 XR - 2018 Specifications and Reviews

2018
Not Rated stars Average rating: Not Rated from 0 votes
.

General information

Category:Allround
Year:2018
Model:Triumph Tiger 1200 XR

Engine and Transmission Specifications

Exhaust system:Stainless steel 3 into 1 . side mounted stainless steel silencer
Greenhouse gases:113.7 CO2 g/km. (CO2 - Carbon dioxide emission)
Fuel consumption:4.90 litres/100 km (20.4 km/l or 48.00 mpg)
Clutch:Wet, multi-plate hydraulically operated
Transmission type,final drive:Shaft drive (cardan)
Gearbox:6-speed
Cooling system:Liquid
Fuel control:Double Overhead Cams/Twin Cam (DOHC)
Fuel system:Injection
Valves per cylinder:4
Bore x Stroke:85.0 x 71.4 mm (3.3 x 2.8 inches)
Compression:11.0:1
Torque:122.00 Nm (12.4 kgf-m or 90.0 ft.lbs) @ 7600 Revolutions">RPM
Power:139.00 Horsepower">HP (101.5 Kilowatt">kW)) @ 9350 Revolutions">RPM
Engine type:In-line three, four-stroke

Brakes, suspension, Frame and wheels

Wheels:Cast aluminium alloy 10-spoke
Rear brakes diameter:282 mm (11.1 inches)
Rear brakes:Single disc. Nissin 2-piston sliding caliper. Switchable ABS.
Front brakes diameter:305 mm (12.0 inches)
Front brakes:Double disc. Floating discs, radially mounted monobloc Brembo calipers, 4-piston, switchable ABS.
Rear tyre:170/60-R17
Front tyre:120/70-R19
Rear wheel travel:193 mm (7.6 inches)
Rear Suspension:WP monoshock, rebound damping adjustment
Front wheel travel:190 mm (7.5 inches)
Front Suspension:WP 48 mm upside down forks, rebound and compression damping adjustment on fork caps
Trail:100 mm (3.9 inches)
Rake (fork angle):23.2°
Frame type:Tubular steel trellis frame


Physical measures and capacities

Oil capacity:4.00 litres (0.26 quarts)
Fuel capacity:20.00 litres (5.28 gallons)
Wheelbase:1,530 mm (60.2 inches)
Overall width:830 mm (32.7 inches)
Overall length:2,248 mm (88.5 inches)
Overall height:1,470 mm (57.9 inches)
Alternate seat height:855 mm (33.7 inches) If adjustable, highest setting.
Seat height:835 mm (32.9 inches) If adjustable, lowest setting.
Power/weight ratio:0.5744 HP/kg
Dry weight:242.0 kg (533.5 pounds)


Other specs

Comments:Windscreen. Traction control. Cruise control. Ride By Wire. Electrically Adjustable Screen. Road and Rain riding modes.
Instruments:LCD instrument pack with digital speedometer, analogue tachometer, gear position indicator, fuel gauge, range to empty, service indicator, clock, air temperature, frost warning, hazard warning lights, trip computer, Tyre pressure monitoring system
Starter:Electric
Color options:Jet Black, Crystal White
