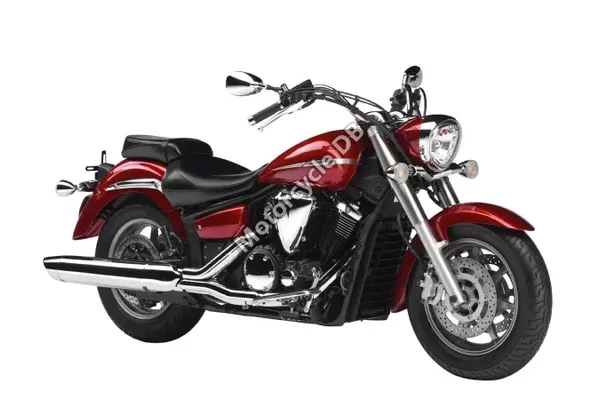

Yamaha V Star 1300 - 2012 Specifications and Reviews
General information | |
| Category | Custom / cruiser |
| Year | 2012 |
| Model | Yamaha V Star 1300 |
Engine and Transmission Specifications | |
| Emission details | Oxygen sensor and catalyst |
| Greenhouse gases | 129.9 CO |
| Fuel consumption | 5.60 litres/100 km (17.9 km/l or 42.00 mpg) |
| Clutch | Multiplate wet |
| Transmission type,final drive | Belt |
| Gearbox | 5-speed |
| Cooling system | Liquid |
| Ignition | TCI: Transistor Controlled Ignition |
| Fuel control | SOHC |
| Fuel system | Injection |
| Valves per cylinder | 4 |
| Bore x stroke | 100.0 x 83.0 mm (3.9 x 3.3 inches) |
| Compression | 9.5:1 |
| Engine details | 60-degree V-twin. Ceramic composite cylinder sleeves contain 100mm forged pistons. Hydraulic cam chain tensioner. |
| Engine type | V2, four-stroke |
| Capacity: | 1311.05 ccm (80.00 cubic inches) |
| | |
Brakes, suspension, Frame and wheels | |
| Wheels | 7-spoke aluminum |
| Rear brakes diameter | 298 mm (11.7 inches) |
| Rear brakes | Single disc. Hudraulic |
| Front brakes diameter | 298 mm (11.7 inches) |
| Front brakes | Double disc. Hydraulic |
| Rear tyre dimensions | 170/70-B16 |
| Front tyre dimensions | 130/90-M16 |
| Rear suspension travel | 109 mm (4.3 inches) |
| Rear suspension | Single shock |
| Front suspension travel | 135 mm (5.3 inches) |
| Front suspension | Telescopic fork |
| Trail | 102 mm (4.0 inches) |
| Rake (fork angle) | 29.0° |
| Frame type | Double Cradle |
| | |
Physical measures and capacities | |
| Fuel capacity | 18.55 litres (4.90 gallons) |
| Wheelbase | 1,689 mm (66.5 inches) |
| Overall width | 1,001 mm (39.4 inches) |
| Overall length | 2,489 mm (98.0 inches) |
| Overall height | 1,146 mm (45.1 inches) |
| Seat height | 691 mm (27.2 inches) If adjustable, lowest setting. |
| Weight incl. oil, gas, etc | 303.0 kg (668.0 pounds) |
Other specs | |
| Light | None |
| Ground clearance | 99 mm (3.9 inches) |
| Rear tyre | 18/9-8 |
| Front tyre | 18/7-8 |
| Rear wheel travel | 127 mm (5.0 inches) |
| Rear Suspension | Swingarm |
| Front wheel travel | 127 mm (5.0 inches) |
| Front Suspension | Independent double wishbone |
| Driveline | CVT |
| Valves per cylinder | 2 |
| Bore x Stroke | 47.0 x 51.0 mm (1.9 x 2.0 inches) |
| Compression | 10.2:1 |
| Model | Yamaha Raptor 90 |
| Color options | Cany red |
| Factory warranty | 1 Year (Limited Factory Warranty) |
| Starter | Electric |
