Cruisers
2002Yamaha XVS 1100 Drag Star
28 fields on record
The 2002 Yamaha XVS 1100 Drag Star is a classic cruiser designed for riders seeking low-seat comfort and relaxed riding position. Its fuel-efficient 1063cc V-twin engine delivers abundant torque for smooth acceleration, while the affordable price and reliable engineering made it popular with beginner and experienced cruiser enthusiasts alike. Known for its authentic styling and easy handling, it remains a favorite for those wanting accessible, no-nonsense cruising.
- Capacity
- 1063.0 ccm
- Engine
- V -Twin twin, four-stroke
- Gearbox
- Not on record
Know it? Add it → - Dry weight
- 259.0 kg
- Seat height
- 710 mm
- Power
- 62.0 HP
What’s new for the 2002 Yamaha XVS 1100 Drag Star
vs the 2001| Spec | 2001 | 2002 |
|---|---|---|
| Engine capacity | 1063.00 ccm (64.86 cubic inches) | 1063.0 ccm (64.87 cubic inches) |
| Power | 62.00 HP | 62.0 HP |
| Torque | 85.00 | 85.0 Nm (8.7 kgf-m or 62.7 ft.lbs) @ 2500 RPM |
| Top speed | 170.0 km/h (105.6 mph) | not listed |
| Weight | 261.0 kg (575.4 pounds) | 259.0 kg (571.0 pounds) |
| Seat height | 690 mm (27.2 inches) | 710 mm (28.0 inches) |
| Fuel capacity | 17.00 litres (4.49 gallons) | not listed |
| Gearbox | 5-speed | not listed |
| Wheelbase | 1,640 mm (64.6 inches) | 1640 mm (64.6 inches) |
| Cooling | — | Air |
| Compression | — | 8.3:1 |
How it rides
Editorial estimate from the spec sheet - not lab tested- Best for
- Built for relaxed boulevard cruising and weekend rides where style and a classic V-twin feel matter more than outright speed.
- Built for
- A laid-back, torque-rich cruiser with classic Drag Star styling that rewards smooth, unhurried riding over aggressive cornering or acceleration.
- Not ideal for
- Not suited for riders seeking sharp handling, high-speed touring comfort, or any serious off-road capability.
Scores are derived from the spec sheet using the same model across every bike, so they compare like for like.
Will it fit you?
Worked out in your browser - nothing is sent to usEngine
- Capacity
- 1063.0 ccm
- Power
- 62.0 HP
- Torque
- 85.0 Nm (8.7 kgf-m) @ 2500 RPM
- Engine type
- V -Twin twin, four-stroke
- Power/weight ratio
- 0.2394 HP/kg
- Bore x stroke
- 95.0 x 75.0 mm
- Compression
- 8.3:1
- Cooling system
- Air
- Fuel system
- Carburettor
- Starting
- Electric
Transmission
- Transmission type
- Manual
- Final drive
- Shaft
Dimensions & weight
- Wheelbase
- 1640 mm
- Overall length
- 2405 mm
- Overall width
- 895 mm
- Overall height
- 1095 mm
- Seat height
- 710 mm
- Dry weight
- 259.0 kg
- Ground clearance
- 145 mm
Chassis & suspension
- Front wheel travel
- 140 mm
- Rear wheel travel
- 113 mm
Brakes & wheels
- Front brakes
- Dual disc
- Front brakes diameter
- 298 mm
- Rear brakes
- Single disc
- Rear brakes diameter
- 282 mm
- Front tyre
- 110/90-18 61S
- Rear tyre
- 170/80-15 M/C 77S
Compiled from manufacturer documentation and user contributions, corrected on an ongoing basis. Spotted something wrong? Tell us.
What changed, year to year
Differences highlighted| Specification | 1999 | 2000 | 2001 | 2002 | 2003 |
|---|---|---|---|---|---|
| Capacity | 1063.00 ccm (64.86 cubic inches) | 1063.00 ccm (64.86 cubic inches) | 1063.00 ccm (64.86 cubic inches) | 1063.00 ccm (64.86 cubic inches) | 1063.00 ccm (64.86 cubic inches) |
| Dry weight | — | 261.0 kg (575.4 pounds) | 261.0 kg (575.4 pounds) | 259.0 kg (571.0 pounds) | 261.0 kg (575.4 pounds) |
| Seat height | 690 mm (27.2 inches) | 690 mm (27.2 inches) | 690 mm (27.2 inches) | 710 mm (28.0 inches) | 690 mm (27.2 inches) |
| Fuel capacity | 17.00 litres (4.49 gallons) | 17.00 litres (4.49 gallons) | 17.00 litres (4.49 gallons) | — | 17.00 litres (4.49 gallons) |
| Color options | — | Black, red | — | — | Black, Gray, Red |
Illustrative - generated automatically by diffing the year records already on file, not a manufacturer-published changelog.
Rider Reviews
Common questions
What is the engine size of the Yamaha XVS 1100 Drag Star?
The 2002 Yamaha XVS 1100 Drag Star has a Capacity of 1063.0 ccm (64.87 cubic inches).
What engine power does the Yamaha XVS 1100 Drag Star have?
The 2002 Yamaha XVS 1100 Drag Star has a Power of 62.0 HP.
What is the torque of the Yamaha XVS 1100 Drag Star?
The 2002 Yamaha XVS 1100 Drag Star has a Torque of 85.0 Nm (8.7 kgf-m or 62.7 ft.lbs) @ 2500 RPM.
How much does the Yamaha XVS 1100 Drag Star weigh?
The 2002 Yamaha XVS 1100 Drag Star has a Dry weight of 259.0 kg (571.0 pounds).
Shop this bike
Affiliate linksWe may earn a commission from qualifying eBay or Amazon purchases made through these links. As an Amazon Associate I earn from qualifying purchases.
Similar bikes
Same category, weighted similarity

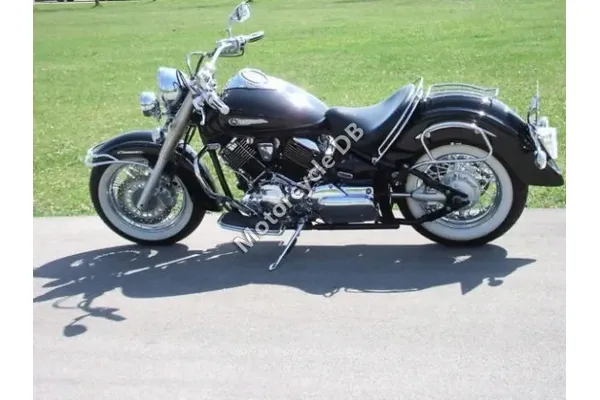

2002 Yamaha XVS 1100 A Drag Star Classic
1063 cc · 272 kg · 710 mm

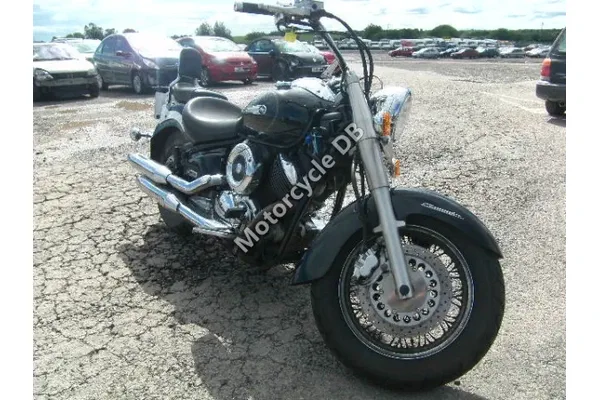

2001 Yamaha XVS 1100 A Drag Star Classic
1063 cc · 265 kg · 710 mm

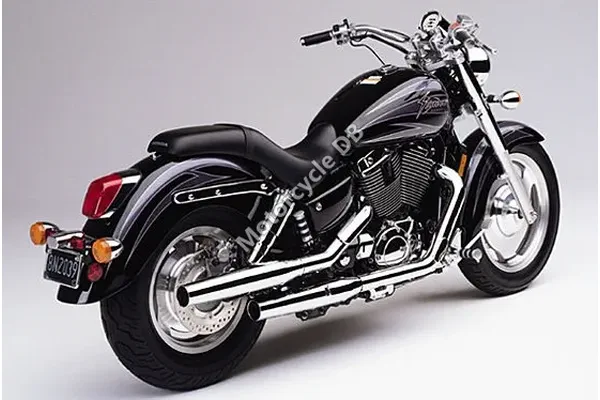

2002 Honda VT 1100 C2 Shadow Sabre
1099 cc · 261 kg · 730 mm
2001 G&G G&g Spartaco 1100
1064 cc · 700 mm

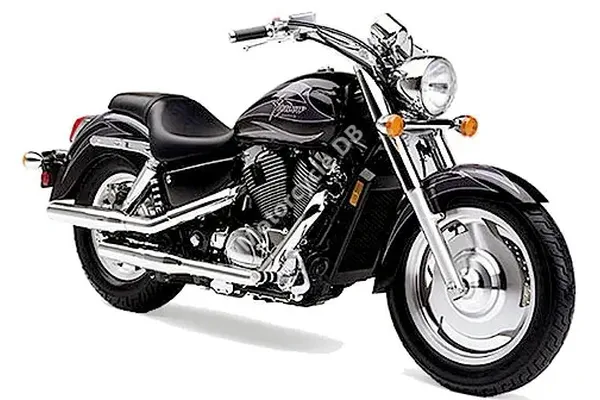

2003 Honda VT 1100 C2 Shadow
1099 cc · 261 kg · 730 mm

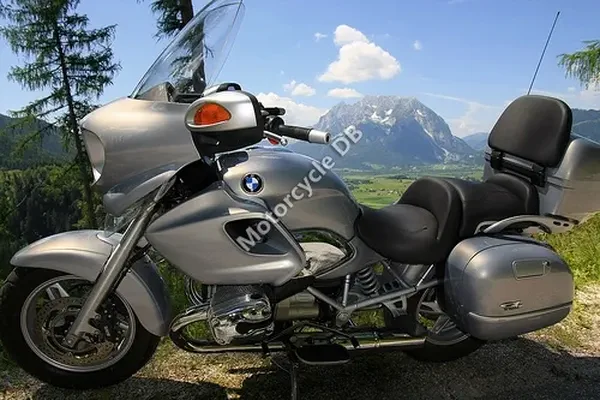

2002 BMW R 1200 Avantgarde C
