Cruisers

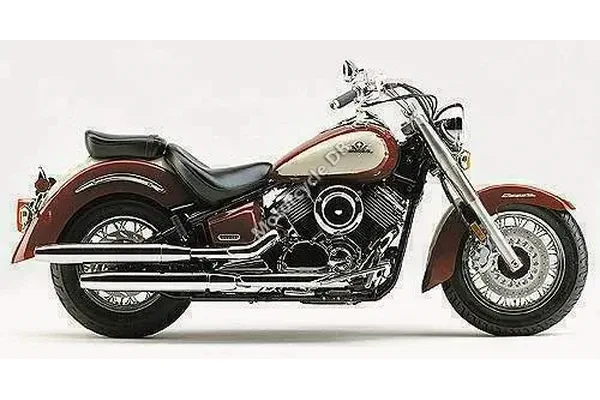

2003Yamaha XVS 1100 Drag Star

33 fields on record

The 2003 Yamaha XVS 1100 Drag Star is a custom cruiser ideal for riders seeking classic styling with manageable power. Its 1063cc V-twin engine delivers smooth torque at low RPMs, while the low 690mm seat height and relaxed geometry suit both beginners and experienced cruiser enthusiasts. Best known for affordable retro-cruiser aesthetics and reliable, accessible performance.

Capacity: 1063.0 ccm
Engine: V-Twin, four-stroke
Gearbox: 5-speed
Dry weight: 261.0 kg
Seat height: 690 mm
Power: 62.0 HP (45.6 kW) @ 5750 RPM

⇄ Compare with another bike All model years

What’s new for the 2003 Yamaha XVS 1100 Drag Star

vs the 2002

Spec	2002	2003
Seat height	710 mm (28.0 inches)	690 mm (27.2 inches)

Other years 1999 2000 2001 2002 2003

How it rides

Editorial estimate from the spec sheet - not lab tested

Off-road & trail5%

Cornering35%

City riding55%

Daily riding60%

Touring50%

Two-up50%

Track10%

Best for: Built for relaxed boulevard cruising and weekend rides where style and a classic V-twin feel matter more than outright speed.
Built for: A laid-back, torque-rich cruiser with classic Drag Star styling that rewards smooth, unhurried riding over aggressive cornering or acceleration.
Not ideal for: Not suited for riders seeking sharp handling, high-speed touring comfort, or any serious off-road capability.

Scores are derived from the spec sheet using the same model across every bike, so they compare like for like.

Will it fit you?

Worked out in your browser - nothing is sent to us

Your height

Inseam (optional)

Units

At 690mm, a rider of 68.9" with a 31" (estimated) inseam will reach the ground with both feet flat on the 2003 Yamaha XVS 1100 Drag Star, with a cramped knee angle of around 75 degrees and an upright riding position.

Assumes about 30mm of suspension sag once seated. This is an approximation from category-typical geometry, not a measurement of this bike or of you - sit on one before you buy.

More bikes at 750 mm or under — Short Kings →

Find bikes that fit your height →

Full specifications

Engine

Capacity: 1063.0 ccm
Power: 62.0 HP (45.6 kW) @ 5750 RPM
Torque: 85.4 Nm (8.7 kgf-m) @ 2500 RPM
Engine type: V-Twin, four-stroke
Power/weight ratio: 0.2375 HP/kg (dry)
Bore x stroke: 95.0 x 75.0 mm
Compression: 8.3:1
Cooling system: Air
Fuel system: Carburettor
Starting: Electric
Valves per cylinder: 2

Transmission

Gearbox: 5-speed
Transmission type: Manual
Final drive: Shaft

Dimensions & weight

Wheelbase: 1640 mm
Overall length: 2405 mm
Overall width: 895 mm
Overall height: 1095 mm
Seat height: 690 mm
Dry weight: 261.0 kg
Wet weight: 278.0 kg
Fuel capacity: 17.00 litres
Ground clearance: 145 mm

Chassis & suspension

Front wheel travel: 140 mm
Rear wheel travel: 113 mm

Brakes & wheels

Front brakes: Dual disc
Front brakes diameter: 298 mm
Rear brakes: Single disc
Rear brakes diameter: 282 mm
Front tyre: 110/90-18 61S
Rear tyre: 170/80-15 M/C 77S

Other

Color options: Black, Gray, Red

Compiled from manufacturer documentation and user contributions, corrected on an ongoing basis. Spotted something wrong? Tell us.

What changed, year to year

Differences highlighted

Specification	1999	2000	2001	2002	2003
Capacity	1063 cc	1063 cc	1063 cc	1063 cc	1063 cc
Dry weight	261 kg	261 kg	261 kg	259 kg	261 kg
Seat height	690 mm	690 mm	690 mm	710 mm	690 mm
Fuel capacity	17 L	17 L	17 L	17 L	17 L
