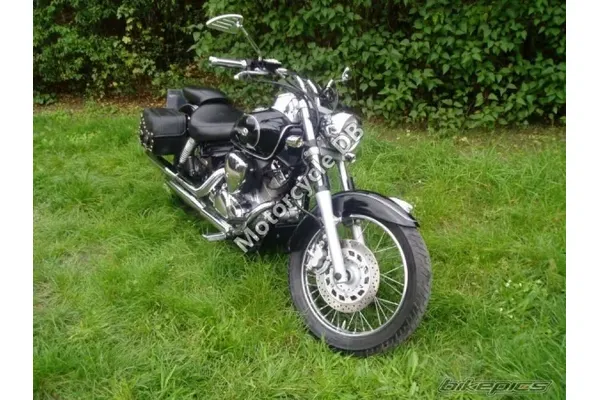

Yamaha XVS 125 Drag Star - 2002 Specifications and Reviews
The 2002 Yamaha XVS 125 Drag Star is an entry-level cruiser designed for new and smaller-framed riders seeking authentic custom styling on a manageable platform. Its air-cooled V-twin engine delivers accessible performance while the low seat height and lightweight frame make it approachable for beginning riders. Best known for delivering classic cruiser aesthetics in an affordable, learner-friendly package.
General information | |
| Category | Custom / cruiser |
| Year | 2002 |
| Model | Yamaha XVS 125 Drag Star |
Engine and Transmission Specifications | |
| Cooling system | Air |
| Fuel control | SOHC |
| Valves per cylinder | 2 |
| Bore x stroke | 41.0 x 47.0 mm (1.6 x 1.9 inches) |
| Compression | 11.0:1 |
| Torque | 9.40 |
| Power | 13.00 |
| Stroke | 4 |
| Engine type | V2 |
| Capacity: | 124.00 ccm (7.57 cubic inches) |
Physical measures and capacities | |
| Wheelbase | 1,530 mm (60.2 inches) |
| Ground clearance | 150 mm (5.9 inches) |
| Overall width | 910 mm (35.8 inches) |
| Overall length | 2,320 mm (91.3 inches) |
| Overall height | 1,075 mm (42.3 inches) |
| Seat height | 670 mm (26.4 inches) If adjustable, lowest setting. |
| Dry weight | 144.0 kg (317.5 pounds) |
| | |
Yamaha XVS 125 Drag Star dimensions and frame | |
| Rear brakes diameter | 130 mm (5.1 inches) |
| Rear brakes | Expanding brake |
| Front brakes diameter | 282 mm (11.1 inches) |
| Front brakes | Single disc |
| Rear tyre dimensions | 130/90-15 M/C 66P |
| Front tyre dimensions | 80/100-47P |
| Rear suspension travel | 100 mm (3.9 inches) |
| Front suspension travel | 140 mm (5.5 inches) |
Speed and acceleration | |
| Power/weight ratio | 0.0903 HP/kg |
