Adventure Motorcycles
2005Aprilia Caponord Rally Raid
36 fields on record
The 2005 Aprilia Caponord Rally Raid is a versatile adventure tourer powered by a 997cc V2 four-stroke engine producing 98 horsepower and 95 Nm of torque. Designed for riders seeking long-distance comfort with off-road capability, it combines a liquid-cooled six-speed transmission with advanced fuel injection and twin-spark ignition. The Caponord excels as an all-rounder, equally competent on highways and rough terrain.
- Capacity
- 997.0 ccm
- Engine
- V-Twin, four-stroke
- Gearbox
- 6-speed
- Dry weight
- Not on record
Know it? Add it → - Seat height
- 860 mm
- Power
- 98.0 HP (72.1 kW) @ 8250 RPM
What’s new for the 2005 Aprilia Caponord Rally Raid
vs the 2004| Spec | 2004 | 2005 |
|---|---|---|
| Torque | 95.0 Nm (9.7 kgf-m or 70.1 ft.lbs) | 95.0 Nm (9.7 kgf-m or 70.1 ft.lbs) @ 6250 RPM |
| Front suspension | Marzocchi 50 mm hydraulic telescopic fork | Marzocchi 50 mm hydraulic telescopic fork. Piston and cartridge motocross type fork hydraulics. Compression adjustment (on RH leg) and rebound adjustment (on LH leg). |
| Rear suspension | Aluminium alloy swing-arm | Aluminium alloy swing-arm. New rising rate linkage with APS (Aprilia Progressive System). Sachs hydraulic monoshock with mechanical compression and rebound adjustment and hydraulic preload adjustment.Separate nitrogen reservoir. |
How it rides
Editorial estimate from the spec sheet - not lab tested- Best for
- Designed as a long-distance adventure tourer with genuine off-road capability, blending V-twin torque with a rally-raid inspired chassis for mixed-surface journeys.
- Built for
- A rugged, go-anywhere personality with strong V-twin torque, plush long-travel suspension, and rally styling that favors stability and endurance over outright sharpness.
- Not ideal for
- Not ideal for shorter riders or those seeking a nimble, lightweight machine for tight city streets or aggressive track riding.
Scores are derived from the spec sheet using the same model across every bike, so they compare like for like.
Will it fit you?
Worked out in your browser - nothing is sent to usEngine
- Capacity
- 997.0 ccm
- Power
- 98.0 HP (72.1 kW) @ 8250 RPM
- Torque
- 95.0 Nm (9.7 kgf-m) @ 6250 RPM
- Engine type
- V-Twin, four-stroke
- Bore x stroke
- 97.0 x 67.5 mm
- Compression
- 10.4:1
- Cooling system
- Liquid
- Fuel system
- Injection
- Starting
- Electric
- Ignition
- Digital electronic ignition with TSI (Twin Spark Ignition) with two spark plugs per cylinder. Ignition timing integrated in the injection control system.
- Valves per cylinder
- 4
- Lubrication system
- Dry sump with separate oil reservoir.
Transmission
- Gearbox
- 6-speed
- Transmission type
- Manual
- Final drive
- Chain
- Clutch
- Multiple disk in oil bath with patented PPC power-assisted hydraulic control.
Dimensions & weight
Chassis & suspension
- Frame
- Sloping parallel twin spar frame in aluminium-magnesium alloy.
- Front suspension
- Marzocchi 50 mm hydraulic telescopic fork. Piston and cartridge motocross type fork hydraulics. Compression adjustment (on RH leg) and rebound adjustment (on LH leg).
- Rear suspension
- Aluminium alloy swing-arm. New rising rate linkage with APS (Aprilia Progressive System). Sachs hydraulic monoshock with mechanical compression and rebound adjustment and hydraulic preload adjustment.Separate nitrogen reservoir.
- Front wheel travel
- 200 mm
- Rear wheel travel
- 200 mm
- Rake (fork angle)
- 27.8°
- Trail
- 129 mm
Brakes & wheels
- Front brakes
- Double disc
- Front brakes diameter
- 300 mm
- Rear brakes
- Single disc
- Rear brakes diameter
- 272 mm
- Front tyre
- 110/80-19.
- Rear tyre
- 150/70-17.
Compiled from manufacturer documentation and user contributions, corrected on an ongoing basis. Spotted something wrong? Tell us.
What changed, year to year
Differences highlighted| Specification | 2004 | 2005 | 2006 |
|---|---|---|---|
| Capacity | 998 cc | 997 cc | 998 cc |
| Dry weight | — | — | 215 kg |
| Seat height | 860 mm | 860 mm | 860 mm |
| Fuel capacity | 25 L | 25 L | 25 L |
Illustrative - generated automatically by diffing the year records already on file, not a manufacturer-published changelog.
Rider Reviews
Common questions
What is the engine size of the Aprilia Caponord Rally Raid?
The 2005 Aprilia Caponord Rally Raid has a Capacity of 997.0 ccm (60.84 cubic inches).
What engine power does the Aprilia Caponord Rally Raid have?
The 2005 Aprilia Caponord Rally Raid has a Power of 98.0 HP (72.1 kW) @ 8250 RPM.
How many gears does the Aprilia Caponord Rally Raid have?
The 2005 Aprilia Caponord Rally Raid has a Gearbox of 6-speed.
What is the torque of the Aprilia Caponord Rally Raid?
The 2005 Aprilia Caponord Rally Raid has a Torque of 95.0 Nm (9.7 kgf-m or 70.1 ft.lbs) @ 6250 RPM.
Shop this bike
Affiliate linksWe may earn a commission from qualifying eBay or Amazon purchases made through these links. As an Amazon Associate I earn from qualifying purchases.
Similar bikes
Same category, weighted similarity

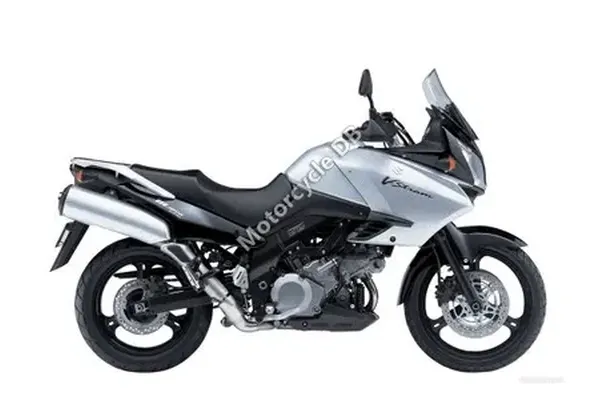

2005 Suzuki V-Strom 1000
996 cc · 208 kg · 840 mm

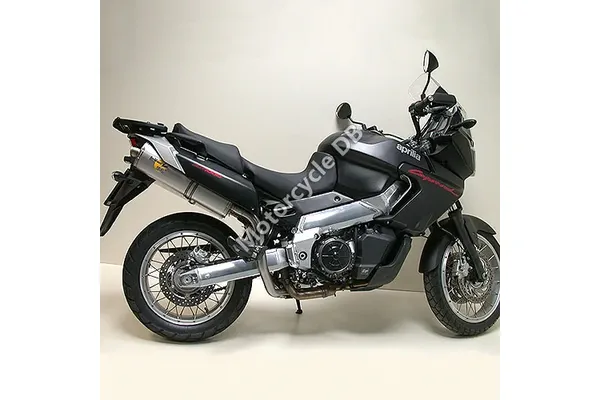

2008 Aprilia ETV 1000 Caponord
998 cc · 215 kg · 820 mm

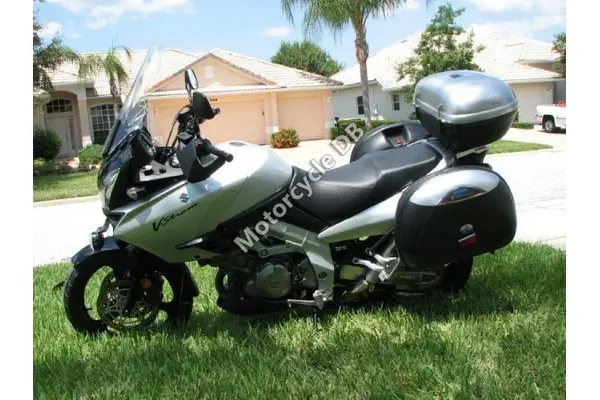

2004 Suzuki V-Strom 1000
996 cc · 207 kg · 840 mm

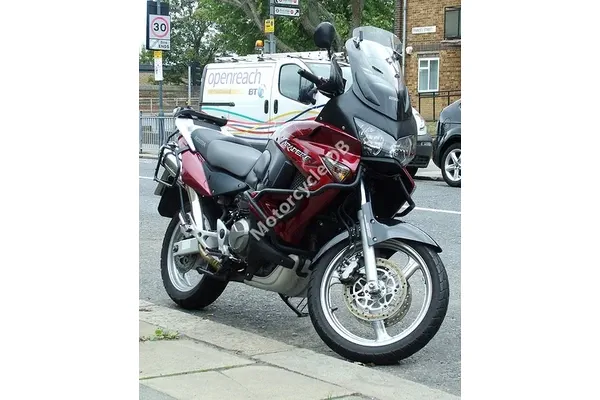

2008 Honda XL1000V Varadero
996 cc · 244 kg · 838 mm

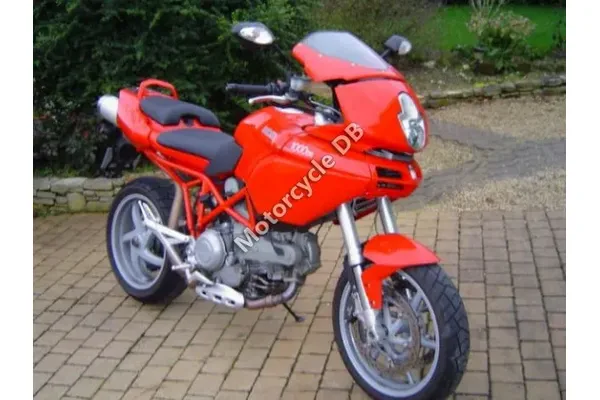

2004 Ducati Multistrada 1000 DS
992 cc · 198 kg · 850 mm

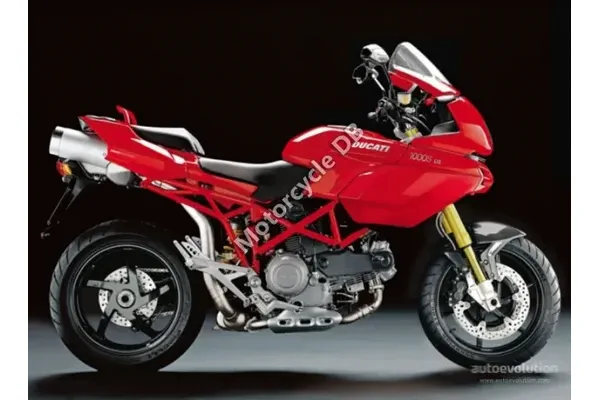

2003 Ducati Multistrada 1000 DS
