2025Benelli TRK 902 Xplorer
36 fields on record

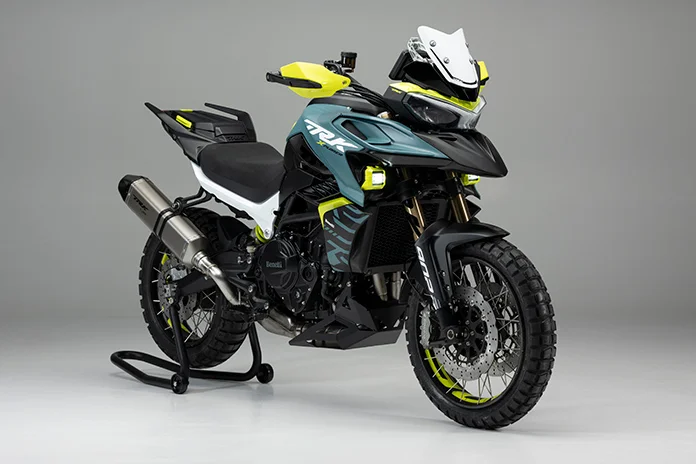

The 2025 Benelli TRK 902 Xplorer is the adventure version of Benelli's biggest TRK, aimed at riders who mix touring with gravel and light trails. It shares the 904cc parallel twin, making 70.0 kW (about 94 hp) and 90 Nm, but adds a 19-inch front wheel, longer-travel suspension and 215 mm of ground clearance. The seat sits at 840 mm and the tank holds 20 litres.
- Capacity
- 904.0 ccm
- Engine
- Parallel Twin, four-stroke
- Gearbox
- 6-speed
- Dry weight
- 235.0 kg
- Seat height
- 840 mm
- Power
- 93.9 HP (70.0 kW) @ 9000 RPM
How it rides
Editorial estimate from the spec sheet - not lab tested- Best for
- Built for long road journeys with the ability to handle gravel and light trails along the way.
- Built for
- An adventure bike from Benelli with a 904cc engine; its character is strong and confident, with 94 hp on tap.
- Not ideal for
- Not for riders who want a low, light city bike or serious competition off-road riding.
Scores are derived from the spec sheet using the same model across every bike, so they compare like for like.
Will it fit you?
Worked out in your browser - nothing is sent to usEngine
- Capacity
- 904.0 ccm
- Power
- 93.9 HP (70.0 kW) @ 9000 RPM
- Torque
- 90.0 Nm (9.2 kgf-m) @ 6500 RPM
- Engine type
- Parallel Twin, four-stroke
- Emission details
- Euro 5+
- Power/weight ratio
- 0.3996 HP/kg (dry)
- Bore x stroke
- 92.0 x 68.0 mm
- Cooling system
- Liquid
- Fuel system
- Injection
- Valves per cylinder
- 4
Transmission
- Gearbox
- 6-speed
- Transmission type
- Manual
- Final drive
- Chain
Dimensions & weight
- Wheelbase
- 1543 mm
- Overall length
- 2260 mm
- Overall width
- 945 mm
- Overall height
- 1350 mm
- Seat height
- 840 mm
- Dry weight
- 235.0 kg
- Fuel capacity
- 20.00 litres
- Ground clearance
- 215 mm
- Reserve fuel capacity
- 3.00 litres
Chassis & suspension
- Front suspension
- Upside-down telescopic fork
- Rear suspension
- Monoshock
- Front wheel travel
- 170 mm
- Rear wheel travel
- 170 mm
Brakes & wheels
- Front brakes
- Double disc
- Front brakes diameter
- 320 mm
- Rear brakes
- Single disc
- Rear brakes diameter
- 260 mm
- ABS
- Yes
- Front tyre
- 110/80-19
- Front Wheel
- 19.0 in
- Rear tyre
- 150/70-17
- Rear Wheel
- 17.0 in
Specs last verified against published sources: .
Compiled from manufacturer documentation and user contributions, corrected on an ongoing basis. Spotted something wrong? Tell us.
What changed, year to year
Differences highlighted| Specification | 2025 | 2026 |
|---|---|---|
| Capacity | 904 cc | 904 cc |
| Dry weight | 235 kg | 235 kg |
| Seat height | 840 mm | 840 mm |
| Fuel capacity | 20 L | 20 L |
Illustrative - generated automatically by diffing the year records already on file, not a manufacturer-published changelog.
Rider Reviews
Common questions
What is the engine size of the Benelli TRK 902 Xplorer?
The 2025 Benelli TRK 902 Xplorer has a Capacity of 904.0 ccm (55.17 cubic inches).
What engine power does the Benelli TRK 902 Xplorer have?
The 2025 Benelli TRK 902 Xplorer has a Power of 93.9 HP (70.0 kW) @ 9000 RPM.
How many gears does the Benelli TRK 902 Xplorer have?
The 2025 Benelli TRK 902 Xplorer has a Gearbox of 6-speed.
What is the torque of the Benelli TRK 902 Xplorer?
The 2025 Benelli TRK 902 Xplorer has a Torque of 90.0 Nm (9.2 kgf-m or 66.4 ft.lbs) @ 6500 RPM.
How much does the Benelli TRK 902 Xplorer weigh?
The 2025 Benelli TRK 902 Xplorer has a Dry weight of 235.0 kg (518.1 pounds).
