Cruisers
2010Harley-Davidson Sportster XL 883N Iron 883
36 fields on record
The 2010 Harley-Davidson Sportster XL 883N Iron 883 is a stripped-down custom cruiser ideal for riders seeking authentic, minimalist styling and accessible performance. Known for its blacked-out aesthetic, lightweight 883cc V-twin engine, and nimble handling, the Iron 883 delivers classic cruiser character with modern fuel injection reliability in an affordable package.
- Capacity
- 883.0 ccm
- Engine
- V-Twin, four-stroke
- Gearbox
- 5-speed
- Dry weight
- 251.0 kg
- Seat height
- 735 mm
- Power
- 53.0 HP (39.0 kW)
How it rides
Editorial estimate from the spec sheet - not lab tested- Best for
- Built primarily for stylish, laid-back cruising and short-to-medium rides where image and sound matter as much as outright performance.
- Built for
- A classic blacked-out Sportster with punchy low-end V-twin torque, a raw mechanical feel, and unmistakable cruiser attitude.
- Not ideal for
- Not a good match for riders seeking sharp cornering ability, long-distance touring comfort, or any kind of off-road capability.
Scores are derived from the spec sheet using the same model across every bike, so they compare like for like.
Will it fit you?
Worked out in your browser - nothing is sent to usEngine
- Capacity
- 883.0 ccm
- Power
- 53.0 HP (39.0 kW)
- Torque
- 70.0 Nm (7.1 kgf-m) @ 3750 RPM
- Engine type
- V-Twin, four-stroke
- Power/weight ratio
- 0.2112 HP/kg (dry)
- Bore x stroke
- 76.2 x 96.8 mm
- Compression
- 9.0:1
- Cooling system
- Air
- Fuel system
- Injection
- Starting
- Electric
Transmission
- Gearbox
- 5-speed
- Transmission type
- Manual
- Final drive
- Belt
- Clutch
- Multi-plate, wet
Dimensions & weight
- Wheelbase
- 1510 mm
- Overall length
- 2245 mm
- Seat height
- 735 mm
- Dry weight
- 251.0 kg
- Fuel capacity
- 12.50 litres
- Ground clearance
- 120 mm
- Oil capacity
- 2.50 litres
Chassis & suspension
- Frame
- Mild steel, tubular frame; circular sections; cast junctions
- Front suspension
- 39mm fork
- Rear suspension
- Coil-over, preload dual adjustment
- Front wheel travel
- 92 mm
- Rear wheel travel
- 41 mm
- Rake (fork angle)
- 29.6°
- Trail
- 117 mm
Brakes & wheels
- Front brakes
- Single disc. Dual piston
- Front brakes diameter
- 292 mm
- Rear brakes
- Single disc. Single piston
- Rear brakes diameter
- 292 mm
- Front tyre
- 100/90-19
- Rear tyre
- 150/80-16
Other
- Color options
- Black Denim, Brilliant Silver Denim
Compiled from manufacturer documentation and user contributions, corrected on an ongoing basis. Spotted something wrong? Tell us.
Rider Reviews
Common questions
What is the engine size of the Harley-Davidson Sportster XL 883N Iron 883?
The 2010 Harley-Davidson Sportster XL 883N Iron 883 has a Capacity of 883.0 ccm (53.88 cubic inches).
What engine power does the Harley-Davidson Sportster XL 883N Iron 883 have?
The 2010 Harley-Davidson Sportster XL 883N Iron 883 has a Power of 53.0 HP (39.0 kW).
How many gears does the Harley-Davidson Sportster XL 883N Iron 883 have?
The 2010 Harley-Davidson Sportster XL 883N Iron 883 has a Gearbox of 5-speed.
What is the torque of the Harley-Davidson Sportster XL 883N Iron 883?
The 2010 Harley-Davidson Sportster XL 883N Iron 883 has a Torque of 70.0 Nm (7.1 kgf-m or 51.6 ft.lbs) @ 3750 RPM.
How much does the Harley-Davidson Sportster XL 883N Iron 883 weigh?
The 2010 Harley-Davidson Sportster XL 883N Iron 883 has a Dry weight of 251.0 kg (553.4 pounds).
Shop this bike
Affiliate linksWe may earn a commission from qualifying eBay or Amazon purchases made through these links. As an Amazon Associate I earn from qualifying purchases.
Similar bikes
Same category, weighted similarity

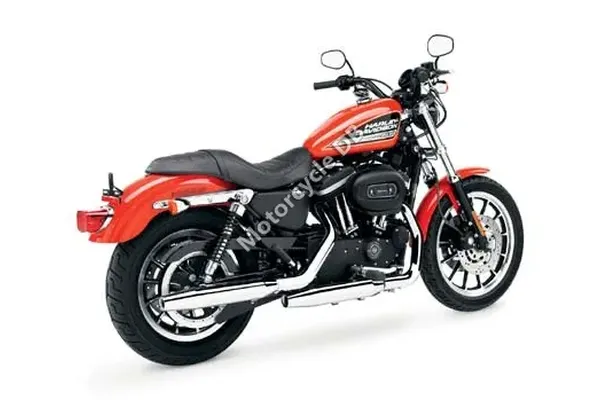

2010 Harley-Davidson XL 883R Sportster 883R
