Enduro Bikes
1984Honda XL 125 R
25 fields on record

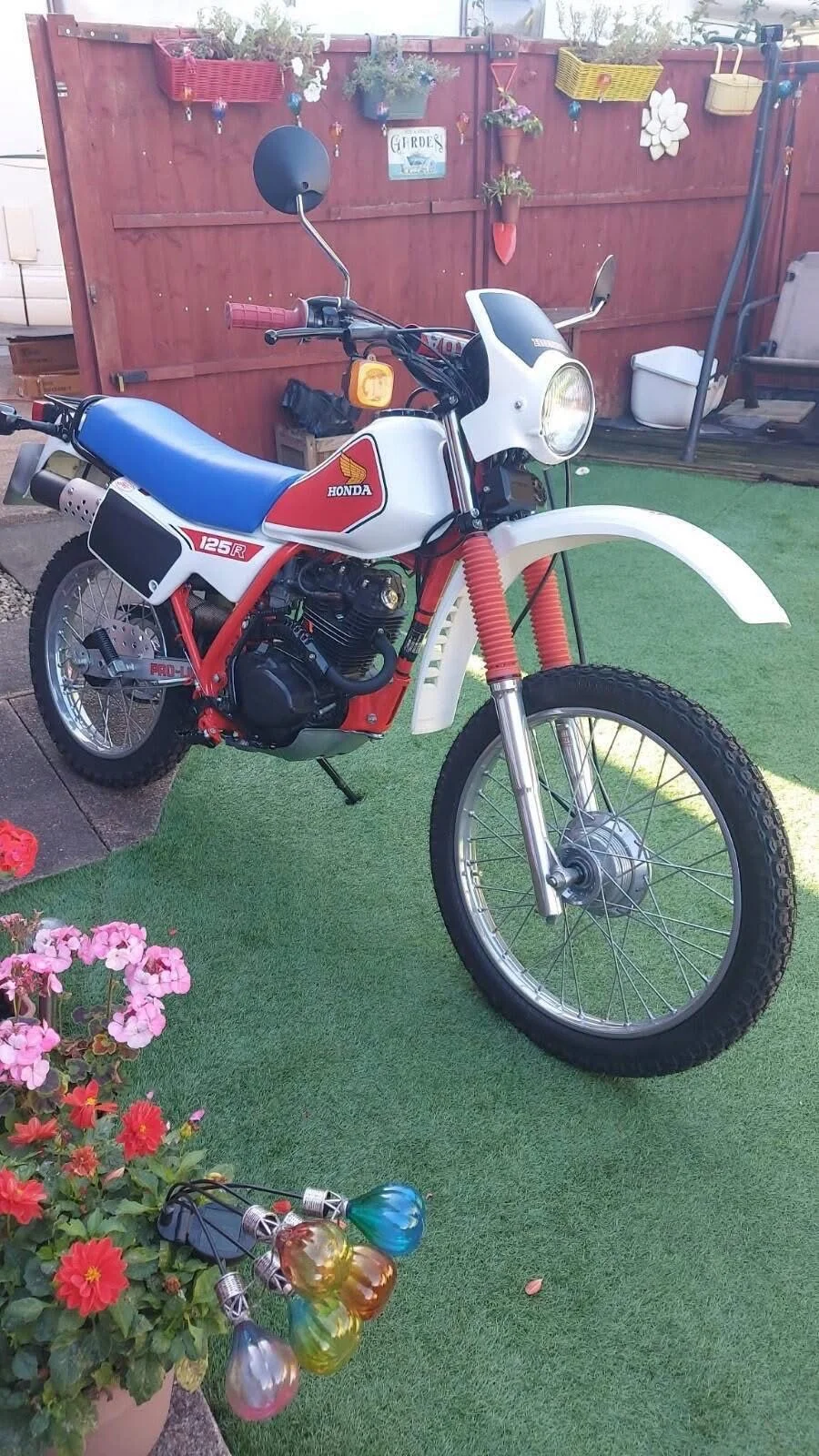

The 1984 Honda XL 125 R is a 124cc air-cooled single-cylinder trail bike, built on the XL125S it replaced with Honda's Pro-Link single-shock rear suspension. A 21-inch front and 18-inch rear wheel give it full-size off-road stance, and with 12 PS, a six-speed gearbox, an 840 mm seat and 106 kg dry it was a popular learner and green-lane bike.
- Capacity
- 124.0 ccm
- Engine
- Single, four-stroke
- Gearbox
- 6-speed
- Dry weight
- 106.0 kg
- Seat height
- 840 mm
- Power
- 11.8 HP (8.8 kW) @ 9000 RPM
Will it fit you?
Worked out in your browser - nothing is sent to usEngine
- Capacity
- 124.0 ccm
- Power
- 11.8 HP (8.8 kW) @ 9000 RPM
- Torque
- 9.8 Nm (1.0 kgf-m) @ 7500 RPM
- Engine type
- Single, four-stroke
- Power/weight ratio
- 0.1113 HP/kg (dry)
- Bore x stroke
- 56.5 x 49.5 mm
- Compression
- 9.4:1
- Cooling system
- Air
- Valves per cylinder
- 2
Transmission
- Gearbox
- 6-speed
- Transmission type
- Manual
- Final drive
- Chain
Dimensions & weight
- Wheelbase
- 1355 mm
- Overall length
- 2130 mm
- Seat height
- 840 mm
- Dry weight
- 106.0 kg
- Fuel capacity
- 8.00 litres
- Ground clearance
- Not on record - add it
Chassis & suspension
- Rear suspension
- Pro-Link single shock
Brakes & wheels
- Front brakes
- Expanding brake
- Rear brakes
- Expanding brake
- Front tyre
- 2.75-21
- Front Wheel
- 21.0 in
- Rear tyre
- 4.10-18
- Rear Wheel
- 18.0 in
Compiled from manufacturer documentation and user contributions, corrected on an ongoing basis. Spotted something wrong? Tell us.
Rider Reviews
Common questions
What is the engine size of the Honda XL 125 R?
The 1984 Honda XL 125 R has a Capacity of 124.0 ccm (7.57 cubic inches).
What engine power does the Honda XL 125 R have?
The 1984 Honda XL 125 R has a Power of 11.8 HP (8.8 kW) @ 9000 RPM.
How many gears does the Honda XL 125 R have?
The 1984 Honda XL 125 R has a Gearbox of 6-speed.
What is the torque of the Honda XL 125 R?
The 1984 Honda XL 125 R has a Torque of 9.8 Nm (1.0 kgf-m or 7.2 ft.lbs) @ 7500 RPM.
How much does the Honda XL 125 R weigh?
The 1984 Honda XL 125 R has a Dry weight of 106.0 kg (233.7 pounds).
