Supermotos

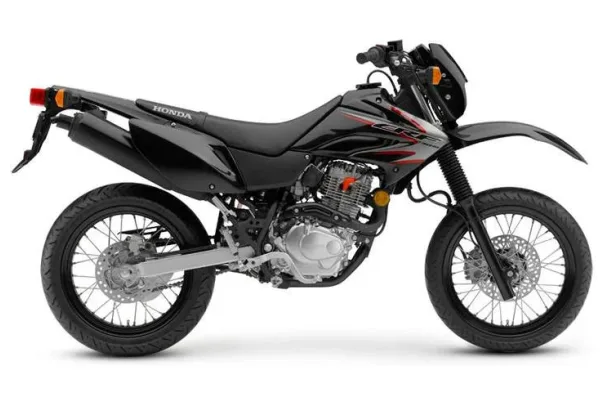

2011Honda XR 230 Motard
34 fields on record
The 2011 Honda XR 230 Motard is a lightweight super motard designed for beginner and intermediate riders seeking playful urban riding and light off-road capability. Its air-cooled 223cc single-cylinder engine delivers modest torque with excellent fuel efficiency, while the compact frame and nimble handling make it ideal for trick riding and tight maneuvering in city environments.
- Capacity
- 223.0 ccm
- Engine
- Single, four-stroke
- Gearbox
- 6-speed
- Wet weight
- 125.0 kg
- Seat height
- 800 mm
- Power
- 22.3 HP (16.4 kW)
How it rides
Editorial estimate from the spec sheet - not lab tested- Best for
- It's built for tossing around city streets and tight, twisty backroads rather than for outright speed or long-distance travel.
- Built for
- Playful, flickable, and forgiving, it rewards a rider who enjoys momentum-based fun over raw horsepower.
- Not ideal for
- It's not the right choice for riders wanting sustained highway speeds, heavy touring loads, or serious off-road capability.
Scores are derived from the spec sheet using the same model across every bike, so they compare like for like.
Will it fit you?
Worked out in your browser - nothing is sent to usEngine
- Capacity
- 223.0 ccm
- Power
- 22.3 HP (16.4 kW)
- Torque
- 18.0 Nm (1.8 kgf-m) @ 5500 RPM
- Engine type
- Single, four-stroke
- Power/weight ratio
- 0.1784 HP/kg (wet)
- Bore x stroke
- 65.5 x 66.2 mm
- Compression
- 9.0:1
- Cooling system
- Air
- Fuel system
- Carburettor
- Starting
- Electric
- Ignition
- CDI
- Lubrication system
- Pumping spray
Transmission
- Gearbox
- 6-speed
- Transmission type
- Manual
- Final drive
- Chain
- Clutch
- Wet, multiplate
Dimensions & weight
- Wheelbase
- 1340 mm
- Overall length
- 2015 mm
- Overall width
- 815 mm
- Overall height
- 1080 mm
- Seat height
- 800 mm
- Wet weight
- 125.0 kg
- Fuel capacity
- 8.70 litres
- Ground clearance
- 236 mm
- Dry weight
- Not on record - add it
Chassis & suspension
- Front suspension
- Telescopic fork
- Rear suspension
- Pro-Link swing arm
- Rake (fork angle)
- 23.0°
- Trail
- 63 mm
Brakes & wheels
- Front brakes
- Single disc
- Rear brakes
- Single disc
- Front tyre
- 110/70-17
- Rear tyre
- 130/70-17
Other
- Color options
- Yellow/black, grey/black
Compiled from manufacturer documentation and user contributions, corrected on an ongoing basis. Spotted something wrong? Tell us.
Rider Reviews
Common questions
What is the engine size of the Honda XR 230 Motard?
The 2011 Honda XR 230 Motard has a Capacity of 223.0 ccm (13.61 cubic inches).
What engine power does the Honda XR 230 Motard have?
The 2011 Honda XR 230 Motard has a Power of 22.3 HP (16.4 kW).
How many gears does the Honda XR 230 Motard have?
The 2011 Honda XR 230 Motard has a Gearbox of 6-speed.
What is the torque of the Honda XR 230 Motard?
The 2011 Honda XR 230 Motard has a Torque of 18.0 Nm (1.8 kgf-m or 13.3 ft.lbs) @ 5500 RPM.
How much does the Honda XR 230 Motard weigh?
The 2011 Honda XR 230 Motard has a Wet weight of 125.0 kg (275.6 pounds).
