2027KTM 690 Rally

Rate this bike

29 fields on record

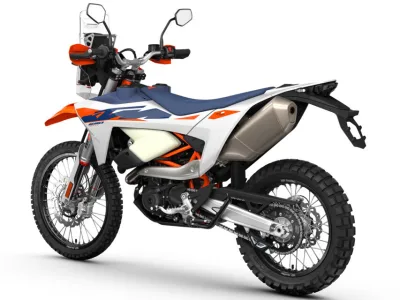

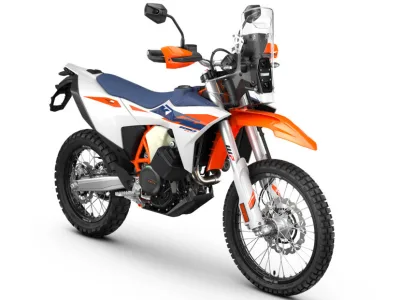

The 2027 KTM 690 Rally is a rally-raid-focused adventure machine built around KTM's 693cc single-cylinder LC4 engine, producing 78 hp and 73 Nm. Designed for long-distance off-road travel, it carries a 20-litre twin-tank fuel system, long-travel WP suspension (265mm front, 250mm rear) and a tall 935mm seat height suited to serious off-road riders. Spoked 21/18-inch wheels and Continental TKC 80 tyres carry over the rally heritage of KTM's factory Dakar machines into a street-legal package.

Capacity: 692.7 ccm
Engine: Single, four-stroke
Gearbox: 6-speed
Dry weight: 161.5 kg
Seat height: 935 mm
Power: 77.9 HP

⇄ Compare with another bike All model years

How it rides

Editorial estimate from the spec sheet - not lab tested

Off-road & trail95%

Cornering55%

City riding25%

Daily riding40%

Touring80%

Two-up15%

Track20%

Best for: Long-distance off-road rally riding and adventure touring
Built for: Purpose-built rally-raid machine with twin-tank long-range fuel capacity and race-proven ergonomics
Not ideal for: Riders wanting a comfortable daily commuter or a passenger-friendly tourer

Scores are derived from the spec sheet using the same model across every bike, so they compare like for like.

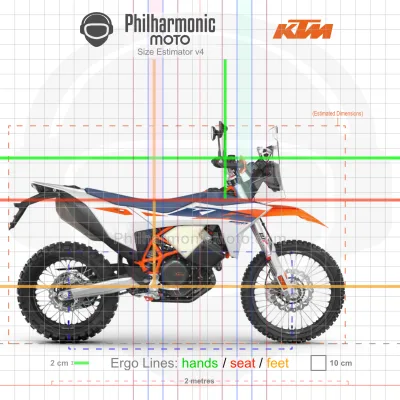

Will it fit you?

Worked out in your browser - nothing is sent to us

Your height

Inseam (optional)

Units

At 935mm, a rider of 68.9" with a 31" (estimated) inseam will not reach the ground comfortably on the 2027 KTM 690 Rally, with a moderate knee angle of around 105 degrees and a slightly forward riding position.

Assumes about 30mm of suspension sag once seated. This is an approximation from category-typical geometry, not a measurement of this bike or of you - sit on one before you buy.

More bikes at over 900 mm — Sky High →

Find bikes that fit your height →

Full specifications

Engine

Capacity: 692.7 ccm
Power: 77.9 HP
Torque: 73.0 Nm (7.4 kgf-m)
Engine type: Single, four-stroke
Power/weight ratio: 0.4824 HP/kg (dry)
Cooling system: Liquid

Transmission

Gearbox: 6-speed
Transmission type: Manual
Final drive: Chain

Dimensions & weight

Wheelbase: 1506 mm
Seat height: 935 mm
Dry weight: 161.5 kg
Wet weight: 177.0 kg
Fuel capacity: 20.00 litres
Ground clearance: 265 mm

Chassis & suspension

Front suspension: 48mm inverted fork, adjustable compression and rebound, 265mm travel
Rear suspension: Mono-shock, fully adjustable, 250mm travel
Front wheel travel: 265 mm
Rear wheel travel: 250 mm

Brakes & wheels
