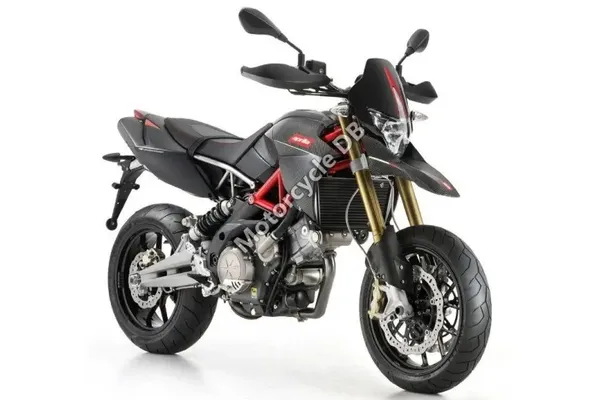

Aprilia Dorsoduro 750 Factory - 2013 Specifications and Reviews
General information | |
| Category | Super motard |
| Year | 2013 |
| Model | Aprilia Dorsoduro 750 Factory |
Engine and Transmission Specifications | |
| Exhaust system | Two in one system in 100% stainless steel with three-way catalytic converter and Lambda probe. |
| Driveline | Primary drive: Spur gears. Transmission ratio 38/71 (1.87). Final drive: Chain. Transmission ratio 16/46. |
| Clutch | Hydraulically operated multi-plate wet clutch. |
| Transmission type,final drive | Chain |
| Gearbox | 6-speed |
| Cooling system | Liquid |
| Lubrication system | Wet sump. |
| Ignition | Digital electronic, integrated in the fuel injection system. |
| Fuel control | DOHC |
| Fuel system | Injection. Integrated engine management system. Electronic fuel injection with ride-by-wire electronic throttle control. |
| Valves per cylinder | 4 |
| Bore x stroke | 92.0 x 56.4 mm (3.6 x 2.2 inches) |
| Compression | 11.0:1 |
| Torque | 82.00 Nm (8.4 kgf-m or 60.5 ft.lbs) @ 4500 |
| Power | 90.25 |
| Engine details | Aprilia V90 longitudinal 90° V twin. Ride-by-Wire System. |
| Engine type | V2, four-stroke |
| Capacity: | 749.90 ccm (45.76 cubic inches) |
Brakes, suspension, Frame and wheels | |
| Wheels | Aluminium alloy. Front: 3.50 x 17´. Rear: 6.00 x 17´. |
| Rear brakes diameter | 240 mm (9.4 inches) |
| Rear brakes | Single disc. Bremo. Wave stainless steel floating disc. |
| Front brakes diameter | 320 mm (12.6 inches) |
| Front brakes | Double disc. Bremo. Wave stainless steel floating disc. |
| Rear tyre dimensions | 180/55-17. |
| Front tyre dimensions | 120/70-17. |
| Rear suspension travel | 160 mm (6.3 inches) |
| Rear suspension | Aluminium alloy swingarm Gas-operated shock absorber with piggy back, with adjustable spring preload and compression and rebound damping. Wheel travel 160 mm |
| Front suspension travel | 160 mm (6.3 inches) |
| Front suspension | 43 mm upside-down fork. 160 mm wheel travel. |
| Trail | 108 mm (4.3 inches) |
| Rake (fork angle) | 26.0° |
| Frame type | Modular steel trellis secured to aluminium side plates by high strength bolts. Detachable rear frame. |
| | |
Physical measures and capacities | |
| Fuel capacity | 12.00 litres (3.17 gallons) |
| Wheelbase | 1,505 mm (59.3 inches) |
| Overall width | 905 mm (35.6 inches) |
| Overall length | 2,216 mm (87.2 inches) |
| Overall height | 1,185 mm (46.7 inches) |
| Seat height | 870 mm (34.3 inches) If adjustable, lowest setting. |
| Power/weight ratio | 0.4878 HP/kg |
| Dry weight | 185.0 kg (407.9 pounds) |
Other specs | |
| Color options | Nero Vulcano (black) |
| Starter | Electric |
