Enduro Bikes

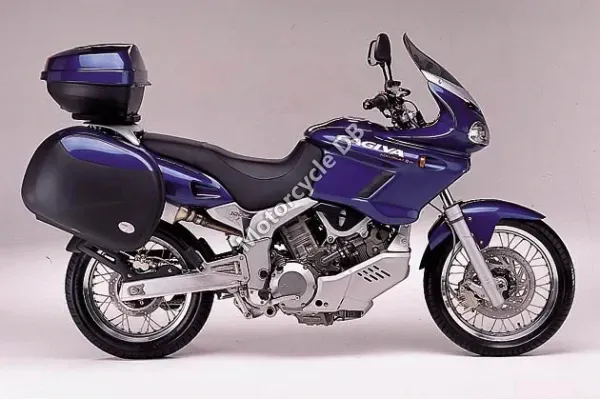

2003Cagiva Navigator 1000

37 fields on record

The 2003 Cagiva Navigator 1000 is a large-capacity enduro designed for experienced adventure riders seeking serious off-road capability. Its 996cc V-twin engine delivers substantial power for tackling challenging terrain, while the 210kg weight and 800mm seat height make it manageable despite its size. Best suited for long-distance exploration and technical riding, it combines rugged performance with practical fuel range.

Capacity: 996.0 ccm
Engine: V-Twin
Gearbox: 6-speed
Dry weight: 210.0 kg
Seat height: 800 mm
Power: 119.5 HP (87.9 kW)

⇄ Compare with another bike All model years

Other years 2003 2004 2005 2006

How it rides

Editorial estimate from the spec sheet - not lab tested

Off-road & trail35%

Cornering75%

City riding65%

Daily riding68%

Touring65%

Two-up60%

Track45%

Best for: Built as a sport-adventure crossover, it favors spirited road riding and light touring over serious off-road use.
Built for: The Navigator delivers a characterful, torque-rich V2 engine feel with sporty handling wrapped in an adventure-style body.
Not ideal for: It is not a good fit for riders seeking genuine off-road capability or a dedicated long-distance touring platform with wind protection and luggage capacity.

Scores are derived from the spec sheet using the same model across every bike, so they compare like for like.

Will it fit you?

Worked out in your browser - nothing is sent to us

Your height

Inseam (optional)

Units

At 800mm, a rider of 68.9" with a 31" (estimated) inseam will reach the ground with both feet flat on the 2003 Cagiva Navigator 1000, with a cramped knee angle of around 70 degrees and a slightly forward riding position.

Assumes about 30mm of suspension sag once seated. This is an approximation from category-typical geometry, not a measurement of this bike or of you - sit on one before you buy.

More bikes at 751-820 mm — Middle Ground →

Find bikes that fit your height →

Full specifications

Engine

Capacity: 996.0 ccm
Power: 119.5 HP (87.9 kW)
Engine type: V-Twin
Power/weight ratio: 0.5690 HP/kg
Bore x stroke: 98.0 x 66.0 mm
Compression: 11.3:1
Cooling system: Liquid
Fuel system: Injection
Starting: Electric
Ignition: Electronic
Valves per cylinder: 4
Lubrication system: Oil cooler
Torque: Not on record - add it

Transmission

Gearbox: 6-speed
Transmission type: Manual
Final drive: Chain

Dimensions & weight

Wheelbase: 1530 mm
Overall length: 2168 mm
Overall width: 825 mm
Overall height: 850 mm
Seat height: 800 mm
Dry weight: 210.0 kg
Fuel capacity: 20.00 litres
Ground clearance: 150 mm

Chassis & suspension

Frame: High strength steel tubes trellis type
Front suspension: Telescopic hydraulic fork with advanced axle
Rear suspension: Marzocchi progressive type with single hydraulic shock absorber; spring preload and rebound adjustment
Front wheel travel: 150 mm
Rear wheel travel: 160 mm
Trail: 80 mm
