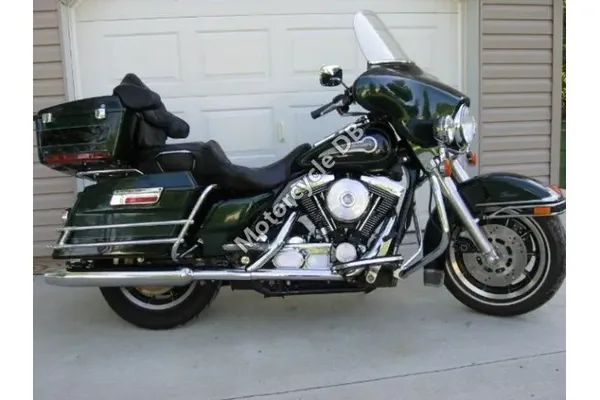

1997Harley-Davidson Electra Glide Ultra Classic

19 fields on record

The 1997 Harley-Davidson Electra Glide Ultra Classic is a full-featured touring cruiser designed for long-distance comfortable riding. Its 1338cc V-twin engine delivers smooth, low-end torque ideal for highway cruising at modest speeds. Known for its extensive comfort features, windscreen, and saddlebags, this bike suits riders seeking classic American cruiser styling with practical touring capabilities.

Capacity: 1338.0 ccm
Engine: V -Twin twin, four-stroke
Gearbox: 5-speed
Dry weight: 340.0 kg
Seat height: 692 mm
Power: 59.0 HP

⇄ Compare with another bike All model years

What’s new for the 1997 Harley-Davidson Electra Glide Ultra Classic

vs the 1992

Spec	1992	1997
Engine capacity	1337.00 ccm (81.58 cubic inches)	1338.0 ccm (81.65 cubic inches)
Power	64.00 HP	59.0 HP
Torque	—	102.0 Nm (10.4 kgf-m or 75.2 ft.lbs) @ 3000 RPM
Top speed	150.0 km/h (93.2 mph)	145.0 km/h (90.1 mph)
Seat height	—	692 mm (27.2 inches)
Fuel capacity	19.00 litres (5.02 gallons)	not listed
Compression	8.5:1	not listed

Other years 1990 1991 1992 1997 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2014 2015 2016 2017 2018 2019

How it rides

Editorial estimate from the spec sheet - not lab tested

Off-road & trail5%

Cornering30%

City riding30%

Daily riding55%

Touring98%

Two-up95%

Track5%

Best for: Built for effortless long-distance highway touring with a passenger and full luggage rather than for spirited riding.
Built for: A classic American cruiser-tourer that rewards relaxed, unhurried riding with a torquey V-twin, plush comfort, and long-haul stability.
Not ideal for: Not for riders seeking agile cornering, off-road capability, or a lightweight bike for weaving through dense city traffic.

Scores are derived from the spec sheet using the same model across every bike, so they compare like for like.

Will it fit you?

Worked out in your browser - nothing is sent to us

Your height

Inseam (optional)

Units

At 692mm, a rider of 68.9" with a 31" (estimated) inseam will reach the ground with both feet flat on the 1997 Harley-Davidson Electra Glide Ultra Classic, with a cramped knee angle of around 75 degrees and an upright riding position.

Assumes about 30mm of suspension sag once seated. This is an approximation from category-typical geometry, not a measurement of this bike or of you - sit on one before you buy.

More bikes at 750 mm or under — Short Kings →

Find bikes that fit your height →

Full specifications

Engine

Capacity: 1338.0 ccm
Power: 59.0 HP
Torque: 102.0 Nm (10.4 kgf-m) @ 3000 RPM
Engine type: V -Twin twin, four-stroke
Power/weight ratio: 0.1735 HP/kg
Cooling system: Air
Starting: Electric
Valves per cylinder: 2

Transmission

Gearbox: 5-speed
Transmission type: Manual
Final drive: Belt
Clutch: Multi-plate with diaphragm spring in oil bath

Performance

Top speed: 145.0 km/h (90.1 mph)

Dimensions & weight

Seat height: 692 mm
Dry weight: 340.0 kg
Wet weight: 347.0 kg
Fuel capacity: Not on record - add it

Brakes & wheels

Front brakes: Dual disc
Rear brakes: Single disc

Compiled from manufacturer documentation and user contributions, corrected on an ongoing basis. Spotted something wrong? Tell us.

What changed, year to year

Differences highlighted

Specification	1990	1997	2002	2008	2014	2019
Capacity	1337.00 ccm (81.58 cubic inches)	1338.00 ccm (81.64 cubic inches)	1449.00 ccm (88.42 cubic inches)	1449.00 ccm (88.42 cubic inches)	1687.97 ccm (103.00 cubic inches)	1746.0 ccm (106.54 cubic inches)
Dry weight	—	340.0 kg (749.6 pounds)	350.0 kg (771.6 pounds)	350.0 kg (771.6 pounds)	400.1 kg (882.0 pounds)	398.0 kg (877.4 pounds)
Seat height	—	692 mm (27.2 inches)	692 mm (27.2 inches)	692 mm (27.2 inches)	693 mm (27.3 inches)	740 mm (29.1 inches)
Fuel capacity	19.00 litres (5.02 gallons)	—	18.90 litres (4.99 gallons)	18.90 litres (4.99 gallons)	22.71 litres (6.00 gallons)	22.71 litres (6.00 US gallons)
Color options	—	—	—	—	Sand Pearl/Canyon Brown Pearl, Birch White/Midnight Pearl, Red Sunglo/Blackened Cayenne Sunglo, Big Blue Pearl/Vivid Black,Midnight Pearl, Candy Orange,Blackened Cayenne Sunglo, Vivid Black	Vivid Black, Twisted Cherry, Midnight Blue//Barracuda Silver, Wicked Red/Barracuda Silver, Kinetic Green
