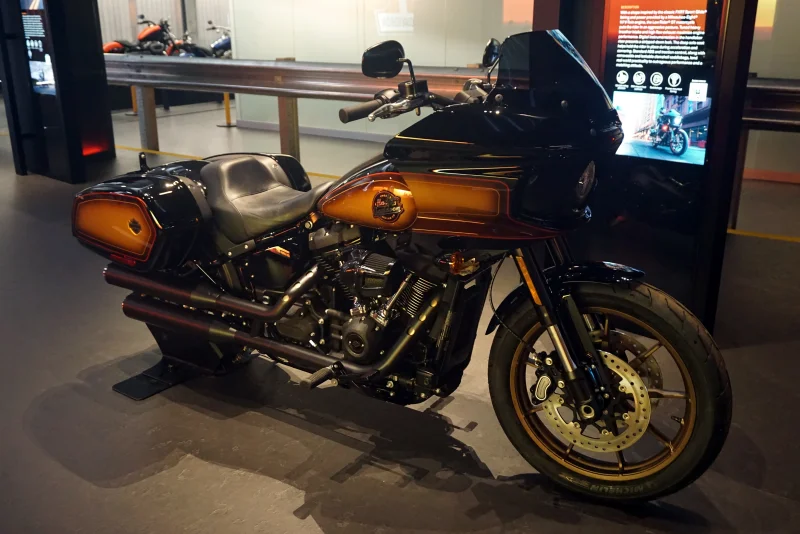

Harley-Davidson Low Rider ST - 2025 Specifications and Reviews The 2025 Harley-Davidson Low Rider St combines classic cruiser styling with modern performance, designed for experienced riders seeking a manageable yet powerful machine. Its low 686mm seat height and compact 323kg weight make it accessible for various body types, while the responsive handling and refined Milwaukee-Eight engine deliver confident cornering and acceleration. Known for blending heritage aesthetics with contemporary technology, this model excels as an everyday cruiser for those prioritizing agility without sacrificing iconic Harley character.
Color Options Vivid Black, Brilliant Red, Billiard Gray, iron Horse Metallic, Midnight Firestorm Price US$ 24199. MSRP depends on country, taxes, accessories, etc. Category Custom / cruiser Model Harley-Davidson Low Rider ST
Engine and Transmission Specifications Starting Electric Emission 116.0 CO2 g/km. (CO2 - Carbon dioxide emission) Fuel Consumption 5.00 litres/100 km (20.0 km/l or 47.04 mpg) Clutch Multi-plate with diaphragm spring in oil bath Final Drive Belt (final drive) Gearbox 6-speed Cooling System Air Fuel Control Double Overhead Cams/Twin Cam (DOHC) Induction Injection. Electronic Sequential Port Fuel Injection Bore x Stroke 103.5 x 114.3 mm (4.1 x 4.5 inches) Compression Ratio 10.3:1 Max Torque 173.6 Nm (17.7 kgf-m or 128.0 ft.lbs) @ 4000 RPM Max Power 114.0 HP (83.2 kW)) @ 5000 RPM Engine Details Milwaukee-Eight® 117 Capacity: 1923.0 ccm (117.34 cubic inches) Physical measures and capacities Fuel Capacity 18.90 litres (4.99 US gallons) Wheelbase 1615 mm (63.6 inches) Ground Clearance 145 mm (5.7 inches) Overall Width 889 mm (35.0 inches) Overall Length 2365 mm (93.1 inches) Seat Height 686 mm (27.0 inches) If adjustable, lowest setting. Power/Weight Ratio 0.3621 HP/kg Wet Weight 323.0 kg (712.0 pounds) Dry Weight 314.8 kg (694.0 pounds) Harley-Davidson Low Rider ST dimensions and frame Wheels Dark bronze, Radiate cast aluminum wheel. Michelin® Scorcher® ´31´ tires. Rear Brakes Single disc. ABS. 2-piston Front Brakes Single disc. ABS. 4-piston Rear Tyre 180/70-B16 Front Tyre 110/90-B19 Rear Suspension Hidden, free piston, coil-over monoshock; 56 mm stroke; hydraulic preload adjustment Front Suspension Single cartridge 43 mm inverted with aluminum fork triple clamps; triple rate spring Trail 145 mm (5.7 inches) Other specs Maintenance Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. Insurance costs Compare US insurance quotes from the nation's top providers. Update specs Report missing specs or required updates. Carrying Capacity 1.9 cu ft saddle bags. Lighting All LED, low beam, high beam and signature position lamp, LED Zeppelin tail lamp, Incandescent bullet turn signals Instruments Digital tachometer, speedometer, gear, odometer, fuel level, clock, trip and range indication Oil capacity 4.70 litres (4.97 US quarts) Rake (fork angle) 28.0° Exhaust system 2-into-2 offset shotgun; catalyst in muffler Driveline Chain 34/46 ratio primary drive Engine type V2, four-stroke Model year 2025
Rider Fit Visualizer
Calculated in your browser only - your height/inseam are never sent to our servers.
Feet:
On the ground
On the pegs
At 686mm, a rider of 68.9" with a 31" (estimated) inseam will reach the ground with both feet flat on the 2025 Harley-Davidson Low Rider ST, with a cramped knee angle of around 75 degrees and an upright riding position.
Data quality: measured .
Assumes about 30mm of suspension sag once seated (a typical street-bike rule of thumb - stiffer or softer suspension will vary).
This is an approximation from category-typical geometry and generic body proportions, not a measurement of this specific bike or you - sit on it before you buy.
Find bikes that fit your height →
