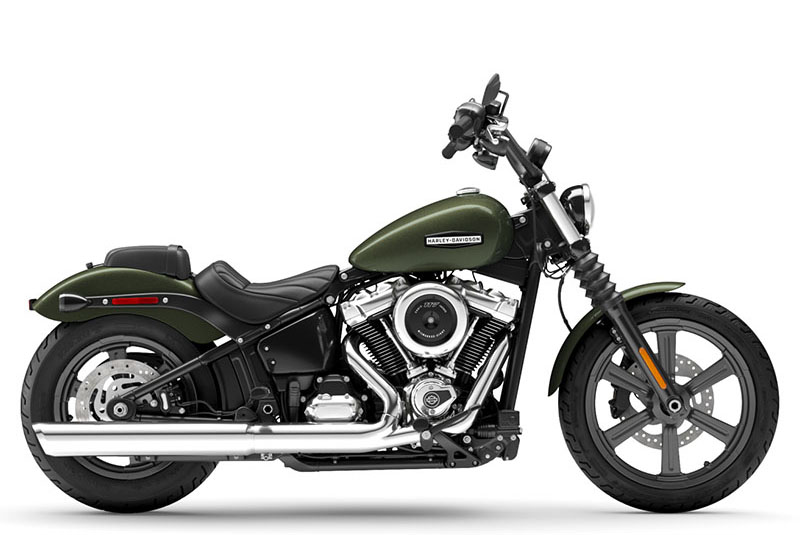

Harley-Davidson Street Bob 117 - 2026 Specifications and Reviews
The 2026 Harley-Davidson Street Bob 117 is a classic cruiser built for riders seeking stripped-down style and authentic V-twin character. Powered by the Milwaukee-Eight 117 engine delivering 98 horsepower and strong low-end torque, it excels at relaxed highway cruising with impressive handling. Known for its minimalist design, quality construction, and legendary Harley heritage, the Street Bob appeals to experienced riders who value timeless appeal over modern gadgetry.
2026
General information | |
| Color Options | Billiard Gray, Vivid Black, Centerline, Iron Horse Metallic, Purple Abyss Denim |
| Price | US$ 17199. MSRP depends on country, taxes, accessories, etc. |
| Category | Custom / cruiser |
| Model | Harley-Davidson Street Bob 117 |
| | |
Engine and Transmission Specifications | |
| Starting | Electric |
| Emission | 116.0 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Fuel Consumption | 5.00 litres/100 km (20.0 km/l or 47.04 mpg) |
| Clutch | Multi-plate with diaphragm spring in oil bath |
| Final Drive | Belt (final drive) |
| Gearbox | 6-speed |
| Cooling System | Air |
| Fuel Control | Double Overhead Cams/Twin Cam (DOHC) |
| Induction | Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
| Bore x Stroke | 102.0 x 114.3 mm (4.0 x 4.5 inches) |
| Compression Ratio | 10.3:1 |
| Max Torque | 162.7 Nm (16.6 kgf-m or 120.0 ft.lbs) @ 2500 RPM |
| Engine Details | Milwaukee-Eight® 117 engine |
| Capacity: | 1917.4 ccm (117.00 cubic inches) |
Physical measures and capacities | |
| Fuel Capacity | 13.20 litres (3.49 US gallons) |
| Wheelbase | 1630 mm (64.2 inches) |
| Ground Clearance | 125 mm (4.9 inches) |
| Overall Length | 2320 mm (91.3 inches) |
| Seat Height | 655 mm (25.8 inches) If adjustable, lowest setting. |
| Power/Weight Ratio | 0.3424 HP/kg |
| Wet Weight | 297.1 kg (655.0 pounds) |
| Dry Weight | 286.2 kg (631.0 pounds) |
Harley-Davidson Street Bob 117 dimensions and frame | |
| Wheels | Black, Annihilator cast aluminum wheels. Dunlop® Harley-Davidson Series, bias blackwal tires. |
| Rear Brakes | Single disc. Optional ABS. 2-piston |
| Front Brakes | Single disc. Optional ABS. 4-piston fixed. |
| Rear Tyre | 150/80-B16 |
| Front Tyre | 100/90-B19 |
| Rear Suspension | Hidden, free piston, coil-over monoshock; 43mm stroke; cam-style preload adjustment |
| Front Suspension | Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; gaiter covers |
| Trail | 157 mm (6.2 inches) |
Other specs | |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Fork tube size | 49 mm (1.9 inches) |
| Sprockets | 34/46 (front/rear) |
| Update specs | Report missing specs or required updates. |
| Lighting | All LED. |
| Instruments | 2.14 inch LCD display with speedometer, gear, odometer, fuel level, clock, trip, range and tachometer indication |
| Oil capacity | 4.70 litres (4.97 US quarts) |
| Rake (fork angle) | 30.0° |
| Exhaust system | 2-into-2 offset shotgun; catalyst in muffler |
| Driveline | Chain 34/46 ratio primary drive |
| Power | 98.0 HP (71.5 kW)) @ 4600 RPM |
| Engine type | V2, four-stroke |
| Year | 2025 |
