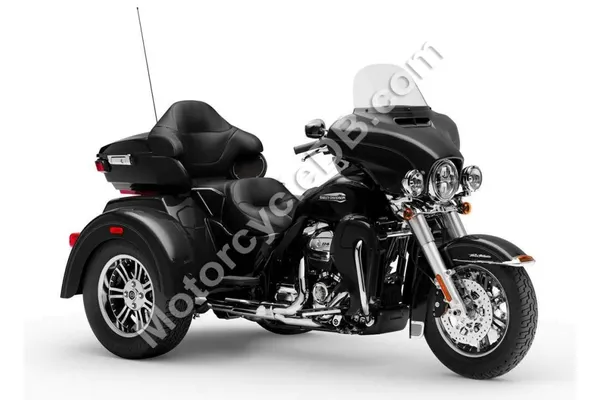

Harley-Davidson Tri Glide Ultra - 2018 Specifications and Reviews
General information | |
| Category: | Touring |
| Year: | 2018 |
| Model: | Harley-Davidson Tri Glide Ultra |
Engine and Transmission Specifications | |
| Exhaust system: | Chrome, 2-1-2 dual exhaust with tapered mufflers |
| Greenhouse gases: | 153.1 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Fuel consumption: | 6.60 litres/100 km (15.2 km/l or 35.64 mpg) |
| Driveline: | Chain, 34/46 ratio primary drive |
| Clutch: | Multi-plate with diaphragm spring in oil bath |
| Transmission type,final drive: | Belt |
| Gearbox: | 6-speed |
| Cooling system: | Air |
| Fuel control: | Double Overhead Cams/Twin Cam (DOHC) |
| Fuel system: | Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
| Bore x Stroke: | 100.0 x 111.1 mm (3.9 x 4.4 inches) |
| Compression: | 10.0:1 |
| Torque: | 152.00 Nm (15.5 kgf-m or 112.1 ft.lbs) @ 3250 Revolutions">RPM |
| Power: | 87.00 Horsepower">HP (63.5 Kilowatt">kW)) @ 5450 Revolutions">RPM |
| Engine details: | Twin-Cooled™ Milwaukee-Eight® 107 |
| Engine type: | V2, four-stroke |
Brakes, suspension, Frame and wheels | |
| Wheels: | Black, 7-spoke Cast Aluminum. Two rear wheels. |
| Rear brakes: | Single disc |
| Front brakes: | Double disc. 6 piston. |
| Rear tyre: | 205/65-R15 |
| Front tyre: | MT90-B16 |
| Front Suspension: | Telescopic fork |
| Trail: | 100 mm (3.9 inches) |
| Rake (fork angle): | 26.0° |
Physical measures and capacities | |
| Oil capacity: | 4.70 litres (0.31 quarts) |
| Fuel capacity: | 22.71 litres (6.00 gallons) |
| Wheelbase: | 1,670 mm (65.7 inches) |
| Ground clearance: | 125 mm (4.9 inches) |
| Overall length: | 2,675 mm (105.3 inches) |
| Seat height: | 735 mm (28.9 inches) If adjustable, lowest setting. |
| Power/weight ratio: | 0.1593 HP/kg |
| Weight incl. oil, gas, etc: | 564.0 kg (1,243.4 pounds) |
| Dry weight: | 546.0 kg (1,203.7 pounds) |
Other specs | |
| Comments: | Trike. Windshield. Cruise control. Alarm. Foot actuated dual parking brake. |
| Carrying capacity: | Trunk and top box |
| Light: | High Beam, running lights, front fender running lights, directional light bar, low oil pressure, engine diagnostics, cruise control, speakers, accessory, security system (optional), 6 speed, low fuel warning, reverse enabled |
| Instruments: | Large speedometer and tachometer with wide numbers; large fuel and volt gauges with wide numbers; display features odometer, trip A, trip B, range to empty, and gear indicator; and larger telltale indicators, including new reverse indicator light |
| Starter: | Electric |
| Color options: | Vivid Black, Black Tempest, Silver Fortune/Sumatra Brown, Twisted Cherry/Silver Fortune, Wicked Red/Twisted Cherry, Legend Blue/Vivid Black |
