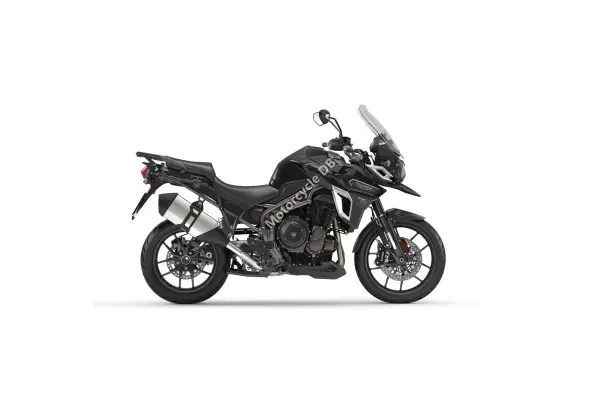

Triumph Tiger 1200 XRX - 2018 Specifications and Reviews
General information | |
| Category | Allround |
| Year | 2018 |
| Model | Triumph Tiger 1200 XRX |
Engine and Transmission Specifications | |
| Exhaust system | Stainless steel 3 into 1 side mounted stainless steel silencer |
| Greenhouse gases | 113.7 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Fuel consumption | 4.90 litres/100 km (20.4 km/l or 48.00 mpg) |
| Clutch | Wet, multi-plate hydraulically operated, torque assist |
| Transmission type,final drive | Shaft drive (cardan) |
| Gearbox | 6-speed |
| Cooling system | Liquid |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Fuel system | Injection |
| Valves per cylinder | 4 |
| Bore x Stroke | 85.0 x 71.4 mm (3.3 x 2.8 inches) |
| Compression | 11.0:1 |
| Torque | 123.00 Nm (12.5 kgf-m or 90.7 ft.lbs) @ 7600 Revolutions">RPM |
| Power | 139.00 Horsepower">HP (101.5 Kilowatt">kW)) @ 9350 Revolutions">RPM |
| Engine type | In-line three, four-stroke |
Brakes, suspension, Frame and wheels | |
| Wheels | Cast aluminum alloy 10-spoke |
| Rear brakes diameter | 282 mm (11.1 inches) |
| Rear brakes | Single disc. Nissin 2-piston sliding caliper, Switchable ABS |
| Front brakes diameter | 305 mm (12.0 inches) |
| Front brakes | Double disc. Floating discs, radially mounted monobloc Brembo calipers, 4-piston, switchable ABS. |
| Rear tyre | 170/60-R17 |
| Front tyre | 120/70-R19 |
| Rear wheel travel | 193 mm (7.6 inches) |
| Rear Suspension | WP monoshock, electronically adjustable semi active damping, |
| Front wheel travel | 190 mm (7.5 inches) |
| Front Suspension | WP 48 mm upside down forks, electronically adjustable damping, |
| Trail | 99 mm (3.9 inches) |
| Rake (fork angle) | 23.1° |
| Frame type | Tubular steel trellis frame. Single-sided, cast aluminium alloy swing arm with shaft drive. |
Physical measures and capacities | |
| Oil capacity | 4.00 litres (0.26 quarts) |
| Fuel capacity | 20.00 litres (5.28 gallons) |
| Wheelbase | 1,520 mm (59.8 inches) |
| Overall width | 885 mm (34.8 inches) |
| Overall length | 2,248 mm (88.5 inches) |
| Overall height | 1,470 mm (57.9 inches) |
| Alternate seat height | 855 mm (33.7 inches) If adjustable, highest setting. |
| Seat height | 835 mm (32.9 inches) If adjustable, lowest setting. |
| Power/weight ratio | 0.5696 HP/kg |
| Dry weight | 244.0 kg (538.0 pounds) |
Other specs | |
| Comments | Windscreen. Auxiliary lights. Engine protection bars. Hand guards. Sump guard. Advanced On Board computer. Cruise Control. Semi Active Suspension. |
| Factory warranty | 24 months unlimited mileage |
| Instruments | LCD instrument pack with digital speedometer, analogue tachometer, gear position indicator, fuel gauge, range to empty, service indicator, clock, air temperature, frost warning, hazard warning lights, trip computer, Tyre pressure monitoring system |
| Starter | Electric |
| Color options | Jet Black, Crystal White, Matt Cobalt Blue |
