Adventure Motorcycles

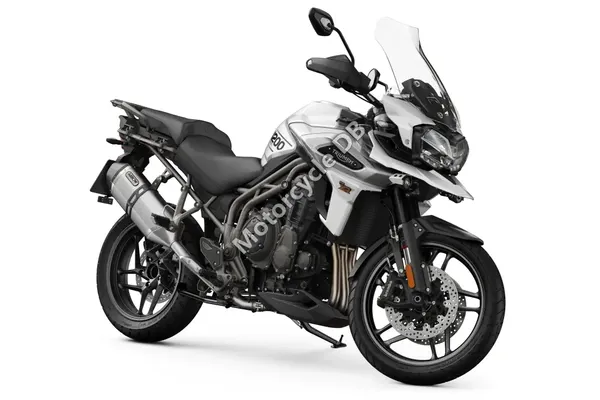

2020Triumph Tiger 1200 XRX

Rate this bike

46 fields on record

The 2020 Triumph Tiger 1200 XRX is a middleweight adventure tourer designed for riders seeking accessible off-road capability without overwhelming weight or complexity. Its 1200cc engine, nimble handling, and comprehensive electronics including switchable ABS and TPMS make it ideal for both pavement and light trail exploration. Known for reliability and value, it suits adventurous riders wanting genuine touring versatility in a manageable package.

Capacity: 1215.0 ccm
Engine: In-line three-cylinder, four-stroke
Gearbox: 6-speed
Dry weight: 244.0 kg
Seat height: 810 mm
Power: 139.0 HP (101.5 kW) @ 9350 RPM

⇄ Compare with another bike ＋ Add to garage All model years

What’s new for the 2020 Triumph Tiger 1200 XRX

vs the 2019

Spec	2019	2020
Seat height	835 mm (32.9 inches)	810 mm (31.9 inches)

Other years 2018 2019 2020 2021

How it rides

Editorial estimate from the spec sheet - not lab tested

Off-road & trail60%

Cornering75%

City riding60%

Daily riding78%

Touring93%

Two-up85%

Track45%

Best for: Built primarily as a long-distance, road-biased adventure tourer that can handle light gravel and occasional rough tracks.
Built for: A refined, torque-rich triple-powered adventure bike that blends strong highway performance with plush electronically adjustable suspension.
Not ideal for: Not ideal for riders seeking a lightweight, nimble off-road specialist or a budget-friendly commuter.

Scores are derived from the spec sheet using the same model across every bike, so they compare like for like.

Will it fit you?

Worked out in your browser - nothing is sent to us

Your height

Inseam (optional)

Units

At 810mm, a rider of 68.9" with a 31" (estimated) inseam will reach the ground with both feet flat on the 2020 Triumph Tiger 1200 XRX, with a cramped knee angle of around 85 degrees and a slightly forward riding position.

Assumes about 30mm of suspension sag once seated. This is an approximation from category-typical geometry, not a measurement of this bike or of you - sit on one before you buy.

More bikes at 751-820 mm — Middle Ground →

Find bikes that fit your height →

Range and running costs

Worked out in your browser - nothing is sent to us

Units

Currency

Fuel per litre

Riding a year

Based on the maker's published fuel consumption and tank size. Real-world figures depend on how and where you ride, and the last litres of a tank are reserve. Prices shown greyed are examples - type your own.

Full specifications

Engine

Capacity: 1215.0 ccm
Power: 139.0 HP (101.5 kW) @ 9350 RPM
CO2 Emissions: 133 CO2 g/km
EPA Certificate No.: LTDXC1.20SAL-005-R01
EPA Est. Fuel Consumption: 5.65 L/100km (41.6 US mpg)
EPA CO Emissions: 2.0 CO g/km
Torque: 122.0 Nm (12.4 kgf-m) @ 7600 RPM
Engine type: In-line three-cylinder, four-stroke
Fuel consumption: 4.90 litres/100 km (20.4 km/l)
Power/weight ratio: 0.5697 HP/kg (dry)
Bore x stroke: 85.0 x 71.4 mm
Compression: 11.0:1
Cooling system: Liquid
Fuel system: Injection
Starting: Electric
Aspiration: Naturally aspirated
Valves per cylinder: 4

Transmission

Gearbox: 6-speed
Transmission type: Manual
Final drive: Shaft
Clutch: Wet, multi-plate hydraulically operated, torque assist

Dimensions & weight

Wheelbase: 1520 mm
Overall length: 2248 mm
Overall width: 830 mm
Overall height: 1450 mm
Seat height: 810 mm
Dry weight: 244.0 kg
Fuel capacity: 20.00 litres
Oil capacity: 4.00 litres
Ground clearance: Not on record - add it

Chassis & suspension

Frame: Tubular steel trellis frame. Single-sided, cast aluminium alloy swing arm with shaft drive.
Front suspension: WP 48 mm upside down forks, electronically adjustable damping,
Rear suspension: WP monoshock, electronically adjustable semi active damping,
Front wheel travel: 168 mm
Rear wheel travel: 158 mm
Rake (fork angle): 23.2°
Trail: 100 mm

Brakes & wheels

Front brakes: Double disc. Floating discs, radially mounted monobloc Brembo calipers, 4-piston, switchable ABS.
Front brakes diameter: 305 mm
Rear brakes: Single disc. Nissin 2-piston sliding caliper, Switchable ABS
Rear brakes diameter: 282 mm
ABS: Yes
Front tyre: 120/70-R19
Rear tyre: 170/60-R17

Other

Color options: Jet Black, Pure White, Lucerne Blue, Matt Jet Black
Warranty: 24

Compiled from manufacturer documentation and user contributions, corrected on an ongoing basis. Spotted something wrong? Tell us.

What changed, year to year

Differences highlighted

Specification	2018	2019	2020	2021
Capacity	1215 cc	1215 cc	1215 cc	1215 cc
Dry weight	244 kg	244 kg	244 kg	244 kg
Seat height	835 mm	835 mm	810 mm	790 mm
Fuel capacity	20 L	20 L	20 L	20 L

Illustrative - generated automatically by diffing the year records already on file, not a manufacturer-published changelog.

Rider Reviews

—

☆☆☆☆☆

Be the first to rate

MotorcycleDB

The 2020 Triumph Tiger 1200 XRX is a top-of-the-line adventure motorcycle that offers riders a powerful and smooth riding experience. With a 1215cc inline-three engine, advanced technology, and superior handling, this bike is designed for long-distance adventures and off-road excursions. The XRX model comes equipped with a range of features including adjustable seat height, traction control, and a suite of riding modes to customize the bike's performance to suit any terrain. Whether you're cruising on the highway or exploring rugged off-road trails, the Triumph Tiger 1200 XRX delivers exceptional performance and versatility.

The Triumph Tiger 1200 XRX is a standout in the adventure motorcycle market, offering riders a combination of power, comfort, and advanced technology. With its rugged yet refined design, this bike is ideal for those seeking a versatile and capable adventure touring machine. Whether you're a seasoned rider or new to the adventure motorcycle category, the Triumph Tiger 1200 XRX is sure to impress with its impressive performance and cutting-edge features.
