2016Ariel Ace
28 fields on record

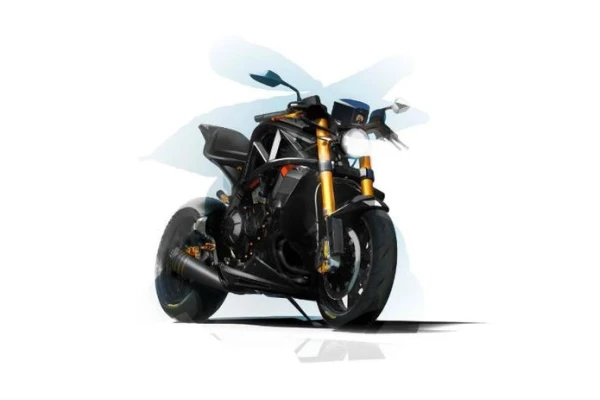

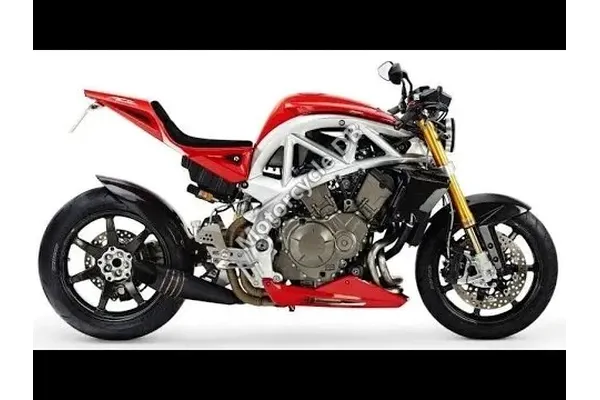

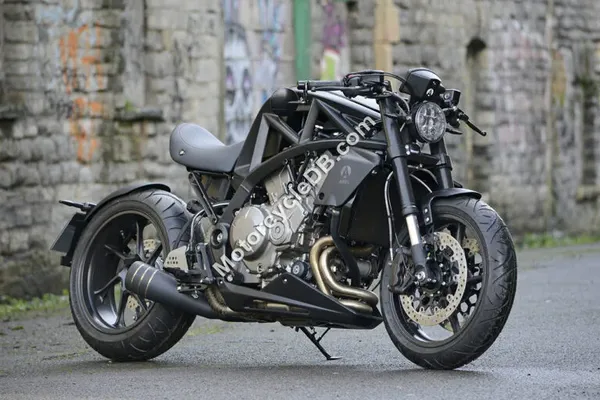

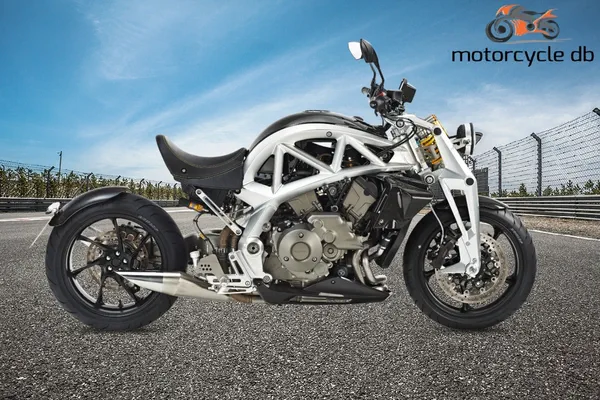

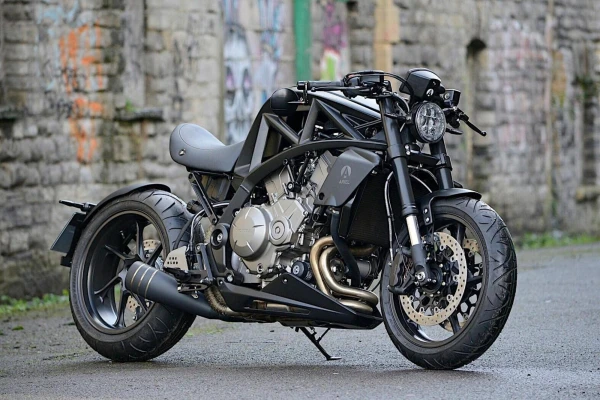

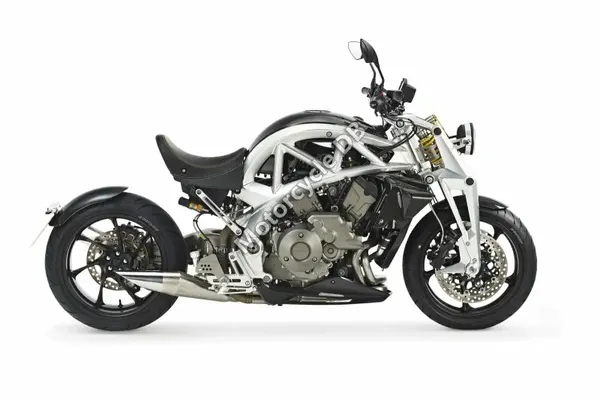

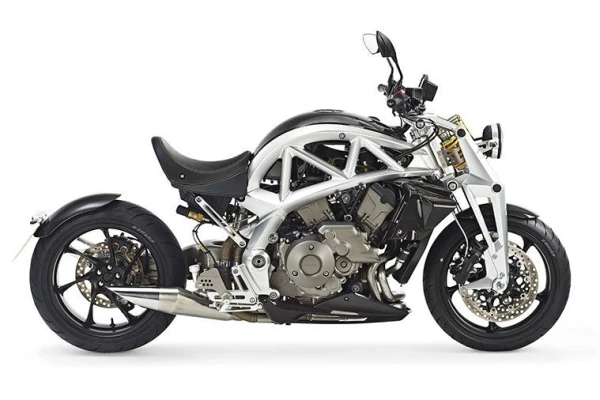

The 2016 Ariel Ace is a hand-built naked bike with a distinctive exposed frame and Honda V4 power. Its 1237cc liquid-cooled V4 makes 173 hp and 131 Nm, with a low 745 mm seat and ABS.
- Capacity
- 1237.0 ccm
- Engine
- V four, four-stroke
- Gearbox
- 6-speed
- Dry weight
- Not on record
Know it? Add it → - Seat height
- 745 mm
- Power
- 173.0 HP (126.3 kW) @ 10000 RPM
How it rides
Editorial estimate from the spec sheet - not lab tested- Best for
- Built for thrilling backroad blasts and track-day carving where its lightweight chassis and Honda V4 power can be fully exploited.
- Built for
- An exclusive, boutique performance machine that blends motorcycle-grade agility with car-like engineering flourishes like shaft drive and a bespoke aluminium frame.
- Not ideal for
- Not suited for new riders, off-road use, or anyone seeking a comfortable long-distance touring companion.
Scores are derived from the spec sheet using the same model across every bike, so they compare like for like.
Will it fit you?
Worked out in your browser - nothing is sent to usEngine
- Capacity
- 1237.0 ccm
- Power
- 173.0 HP (126.3 kW) @ 10000 RPM
- Torque
- 131.0 Nm (13.4 kgf-m) @ 8750 RPM
- Engine type
- V four, four-stroke
- Bore x stroke
- 81.0 x 60.0 mm
- Cooling system
- Liquid
- Fuel system
- Injection
- Starting
- Electric
Transmission
- Gearbox
- 6-speed
- Transmission type
- Manual
- Final drive
- Chain
Performance
- Top speed
- 265.5 km/h (165.0 mph)
Dimensions & weight
- Wheelbase
- 1541 mm
- Seat height
- 745 mm
- Fuel capacity
- 12.00 litres
- Dry weight
- Not on record - add it
Chassis & suspension
- Frame
- Anodised machined and welded aluminium perimeter frame
- Front suspension
- Showa 43mm adjustable cartridge type telescopic forks
- Rear suspension
- Pro link single sided swing arm. Showa adjustable damper
Brakes & wheels
- Front brakes
- Double disc. ABS
- Front brakes diameter
- 320 mm
- Rear brakes
- Single disc. ABS
- Rear brakes diameter
- 276 mm
- ABS
- Yes
- Front tyre
- 120/70-ZR17
- Rear tyre
- 190/50-ZR17
Other
- Color options
- Red/white/gold, White/black, custom colors
- Comments
- Switchable traction control. Limited edition of 100-150 customized units.
Compiled from manufacturer documentation and user contributions, corrected on an ongoing basis. Spotted something wrong? Tell us.
What changed, year to year
Differences highlighted| Specification | 2016 | 2018 | 2021 | 2023 | 2025 |
|---|---|---|---|---|---|
| Capacity | 1237 cc | 1237 cc | 1237 cc | 1237 cc | 1237 cc |
| Seat height | 745 mm | 745 mm | 745 mm | 745 mm | 745 mm |
| Fuel capacity | 12 L | 12 L | 12 L | 12 L | 12 L |
Illustrative - generated automatically by diffing the year records already on file, not a manufacturer-published changelog.
Rider Reviews
Common questions
What is the engine size of the Ariel Ace?
The 2016 Ariel Ace has a Capacity of 1237.0 ccm (75.49 cubic inches).
What engine power does the Ariel Ace have?
The 2016 Ariel Ace has a Power of 173.0 HP (126.3 kW) @ 10000 RPM.
How many gears does the Ariel Ace have?
The 2016 Ariel Ace has a Gearbox of 6-speed.
What is the torque of the Ariel Ace?
The 2016 Ariel Ace has a Torque of 131.0 Nm (13.4 kgf-m or 96.6 ft.lbs) @ 8750 RPM.
