Sportbikes
2023Bimota KB4RC
41 fields on record

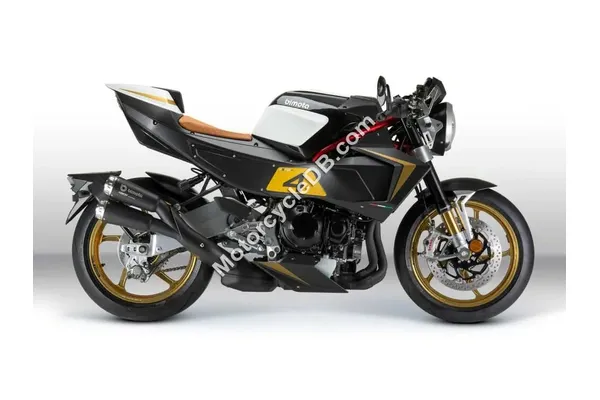

The 2023 Bimota KB4RC is a cafe racer version of Bimota's KB4, using Kawasaki's Ninja 1000 engine. Its liquid-cooled 1043cc inline four makes 140.1 hp at 10,000 rpm and 111 Nm through a six-speed gearbox and chain. An 810 mm seat, 194 kg wet weight and 19-litre tank make it exotic but usable.
- Capacity
- 1043.0 ccm
- Engine
- In-line four, four-stroke
- Gearbox
- 6-speed
- Wet weight
- 194.0 kg
- Seat height
- 810 mm
- Power
- 140.1 HP (102.3 kW) @ 10000 RPM
How it rides
Editorial estimate from the spec sheet - not lab tested- Best for
- Built for spirited canyon carving and track-day performance, prioritizing razor-sharp handling over practicality.
- Built for
- A boutique Italian exotic with a Kawasaki-derived inline-four heart, blending exclusive craftsmanship with serious performance credentials.
- Not ideal for
- This is not the right bike for new riders, commuters seeking comfort, or anyone planning long-distance touring or two-up travel.
Scores are derived from the spec sheet using the same model across every bike, so they compare like for like.
Will it fit you?
Worked out in your browser - nothing is sent to usEngine
- Capacity
- 1043.0 ccm
- Power
- 140.1 HP (102.3 kW) @ 10000 RPM
- CO2 Emissions
- 5 CO2 g/km
- Torque
- 111.0 Nm (11.3 kgf-m) @ 8000 RPM
- Engine type
- In-line four, four-stroke
- Power/weight ratio
- 0.7222 HP/kg (wet)
- Bore x stroke
- 77.0 x 56.0 mm
- Compression
- 11.8:1
- Cooling system
- Liquid
- Fuel system
- Injection
- Starting
- Electric
- Valves per cylinder
- 4
- Lubrication system
- Forced Lubrication (wet sump)
Transmission
- Gearbox
- 6-speed
- Transmission type
- Manual
- Final drive
- Chain
- Clutch
- Wet, multi-disc
Dimensions & weight
- Wheelbase
- 1390 mm
- Overall length
- 2210 mm
- Overall width
- 765 mm
- Overall height
- 1165 mm
- Seat height
- 810 mm
- Wet weight
- 194.0 kg
- Fuel capacity
- 19.00 litres
- Ground clearance
- 140 mm
- Oil capacity
- 3.80 litres
- Dry weight
- Not on record - add it
Chassis & suspension
- Frame
- Trellis made by Hi-resistance steel with Aluminum alloy plates billet machined
- Front suspension
- Öhlins front fork FG R and and T 43 NIX30
- Rear suspension
- Aluminum alloy Swingarm billet with Öhlins ttX 36
- Front wheel travel
- 130 mm
- Rear wheel travel
- 120 mm
- Rake (fork angle)
- 24.0°
- Trail
- 101 mm
Brakes & wheels
- Front brakes
- Double disc
- Front brakes diameter
- 320 mm
- Rear brakes
- Single disc
- Front tyre
- 120/70-Z17
- Rear tyre
- 190/50-ZR17
Other
- Color options
- Red/white
- Comments
- Also called Bimota KB4 Race Cafe.
Compiled from manufacturer documentation and user contributions, corrected on an ongoing basis. Spotted something wrong? Tell us.
What changed, year to year
Differences highlighted| Specification | 2022 | 2023 | 2024 | 2025 | 2026 |
|---|---|---|---|---|---|
| Capacity | 1043 cc | 1043 cc | 1043 cc | 1043 cc | 1043 cc |
| Dry weight | — | — | — | — | 187 kg |
| Seat height | 810 mm | 810 mm | 810 mm | 802 mm | 810 mm |
| Fuel capacity | 19 L | 19 L | 19 L | 19.5 L | 19.5 L |
Illustrative - generated automatically by diffing the year records already on file, not a manufacturer-published changelog.
Rider Reviews
Common questions
What is the engine size of the Bimota KB4RC?
The 2023 Bimota KB4RC has a Capacity of 1043.0 ccm (63.65 cubic inches).
What engine power does the Bimota KB4RC have?
The 2023 Bimota KB4RC has a Power of 140.1 HP (102.3 kW) @ 10000 RPM.
How many gears does the Bimota KB4RC have?
The 2023 Bimota KB4RC has a Gearbox of 6-speed.
What is the torque of the Bimota KB4RC?
The 2023 Bimota KB4RC has a Torque of 111.0 Nm (11.3 kgf-m or 81.9 ft.lbs) @ 8000 RPM.
How much does the Bimota KB4RC weigh?
The 2023 Bimota KB4RC has a Wet weight of 194.0 kg (427.7 pounds).
