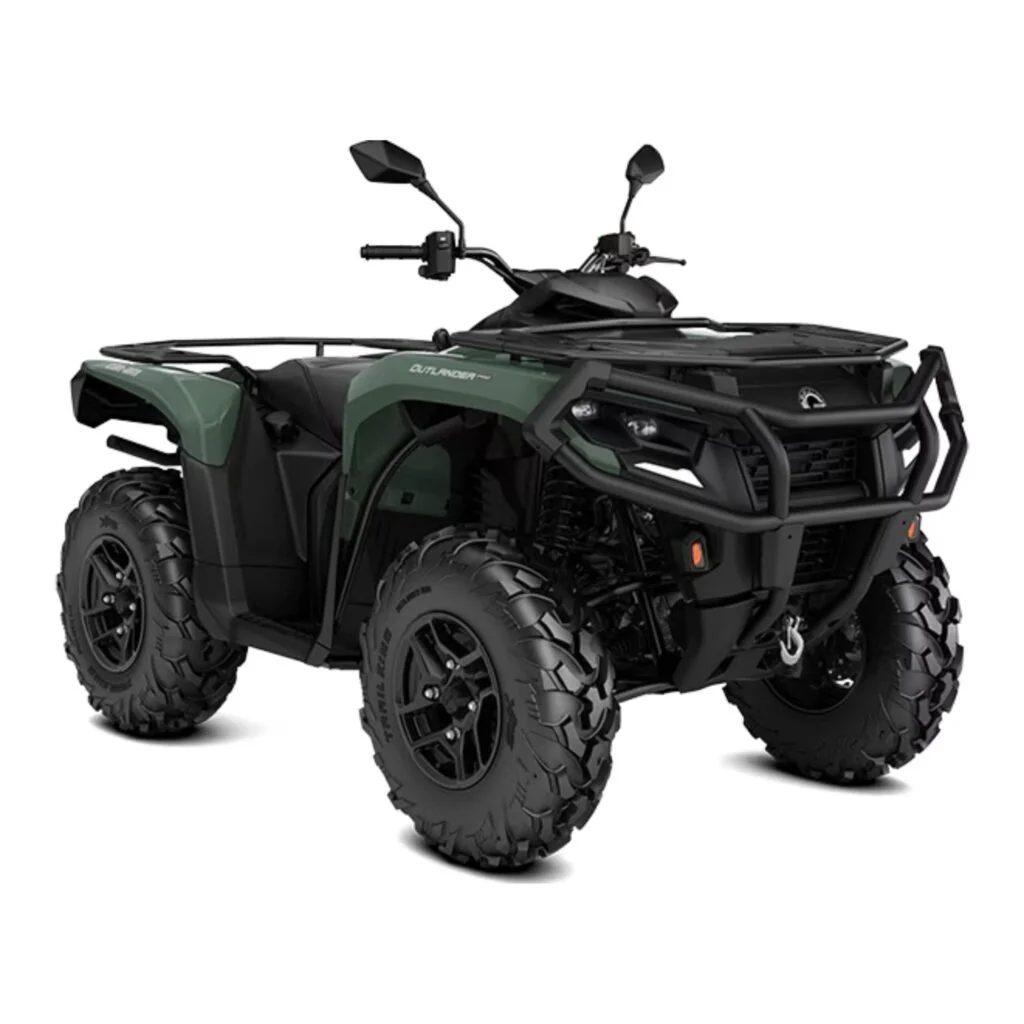

2027 Can-Am Outlander Pro HD5
- 650 ccCapacity
- 40 hp (29.2 kW)Power
- 50.2 NmTorque
- 363 kgDry weight
- 980 mmSeat height

The 2027 Can-Am Outlander Pro HD5 is a capable mid-size ATV powered by a 650cc Rotax ACE engine delivering 40 horsepower. Designed for recreational riders seeking versatility, it excels in light trail work and property maintenance with its selectable 2WD/4WD drivetrain and CVT transmission. Known for reliability and ease of use, it suits riders prioritizing comfort and practical utility over extreme performance.
Check a bike by registration
Buying a used one? Enter its registration to see its MOT history and recorded mileage.
Engine
| Type | Single-cylinder, 4-stroke |
| Capacity | 650 cc |
| Cooling | Liquid |
| Fuel system | Injection |
| Starter | Electric |
Transmission
| Gearbox | Automatic |
| Final drive | Shaft |
| Clutch | CVT with work calibration Extra low L / H / N / R / P |
Performance
| Max power | 40 hp (29.2 kW) |
| Max torque | 50.2 Nm |
| Power to weight | 0.11 hp/kg (dry) |
Chassis
| Front suspension | Double A-Arm, twin shocks |
| Rear suspension | Double A-Arm, twin tube |
| Front brake | Double disc. Hydraulic twin-piston calipers |
| Rear brake | Single disc. Hydraulic twin-piston calipers |
| Tyres | 26/8-12 / 26/8-12 |
Dimensions
| Overall length | 2,284 mm |
| Overall width | 1,239 mm |
| Overall height | 1,225 mm |
| Wheelbase | 1,346 mm |
| Seat height | 980 mm |
| Ground clearance | 330 mm |
Weights and capacities
| Dry weight | 363 kg |
| Fuel tank | 19.3 l |
Engine
- Capacity
- 650.0 ccm
- Power
- 40.0 HP (29.2 kW)
- Torque
- 50.2 Nm (5.1 kgf-m)
- Engine type
- Single, four-stroke
- Power/weight ratio
- 0.1102 HP/kg (dry)
- Cooling system
- Liquid
- Fuel system
- Injection
- Starting
- Electric
Transmission
- Transmission type
- Automatic
- Final drive
- Shaft
- Clutch
- CVT with work calibration Extra low L / H / N / R / P
Dimensions & weight
- Wheelbase
- 1346 mm
- Overall length
- 2284 mm
- Overall width
- 1239 mm
- Overall height
- 1225 mm
- Seat height
- 980 mm
- Dry weight
- 363.0 kg
- Fuel capacity
- 19.30 litres
- Ground clearance
- 330 mm
Chassis & suspension
- Front suspension
- Double A-Arm, twin shocks
- Rear suspension
- Double A-Arm, twin tube
- Front wheel travel
- 248 mm
- Rear wheel travel
- 260 mm
Brakes & wheels
- Front brakes
- Double disc. Hydraulic twin-piston calipers
- Rear brakes
- Single disc. Hydraulic twin-piston calipers
- Front tyre
- 26/8-12
- Rear tyre
- 26/8-12
Other
- Color options
- Beige, green
- Comments
- Various options.
Specs last verified against published sources: .
Compiled from manufacturer documentation and user contributions, corrected on an ongoing basis. Spotted something wrong? Tell us.
30 fields on record · last reviewed 2 Nov 2026 · See all 30 specifications
Reliability & safety
How the score works »No reliability score, safety recalls or owner complaints on record for this bike yet.
Check a bike by VIN »How it rides
Editorial estimate from the spec sheet - not lab tested- Best for
- Built primarily as a utility and farm/ranch workhorse, with selectable 4WD, front and rear racks, and long-travel suspension for hauling and rough terrain rather than recreational speed.
- Built for
- A no-nonsense, torque-focused workhorse defined by its Rotax single-cylinder engine, CVT automatic gearbox, and robust chassis rather than outright performance.
- Not ideal for
- Not for riders seeking speed, cornering agility, or a passenger-friendly, road-going touring experience.
Scores are derived from the spec sheet using the same model across every bike, so they compare like for like.
Model history
3 model years on fileWhat’s new for the 2027 Can-Am Outlander Pro HD5
vs the 2026| Spec | 2026 | 2027 |
|---|---|---|
| Power | — | 40.0 HP (29.2 kW) |
What changed, year to year
Differences highlighted| Specification | 2025 | 2026 | 2027 |
|---|---|---|---|
| Capacity | 650 cc | 650 cc | 650 cc |
| Dry weight | 363 kg | 363 kg | 363 kg |
| Seat height | 980 mm | 980 mm | 980 mm |
| Fuel capacity | 19.3 L | 19.3 L | 19.3 L |
Illustrative - generated automatically by diffing the year records already on file, not a manufacturer-published changelog.
Own one
Parts diagrams
No diagrams for this bike yet. See which bikes have them.
Browse parts »Add it to My Garage
Free logbook: service history, reminders, recall alerts and running costs.
Add to Garage »Shop this bike
Affiliate linksWe may earn a commission from qualifying eBay or Amazon purchases made through these links. As an Amazon Associate I earn from qualifying purchases.
Rider Reviews
Common questions
What is the engine size of the Can-Am Outlander Pro HD5?
The 2027 Can-Am Outlander Pro HD5 has a Capacity of 650.0 ccm (39.67 cubic inches).
What engine power does the Can-Am Outlander Pro HD5 have?
The 2027 Can-Am Outlander Pro HD5 has a Power of 40.0 HP (29.2 kW).
What is the torque of the Can-Am Outlander Pro HD5?
The 2027 Can-Am Outlander Pro HD5 has a Torque of 50.2 Nm (5.1 kgf-m or 37.0 ft.lbs).
How much does the Can-Am Outlander Pro HD5 weigh?
The 2027 Can-Am Outlander Pro HD5 has a Dry weight of 363.0 kg (800.3 pounds).
