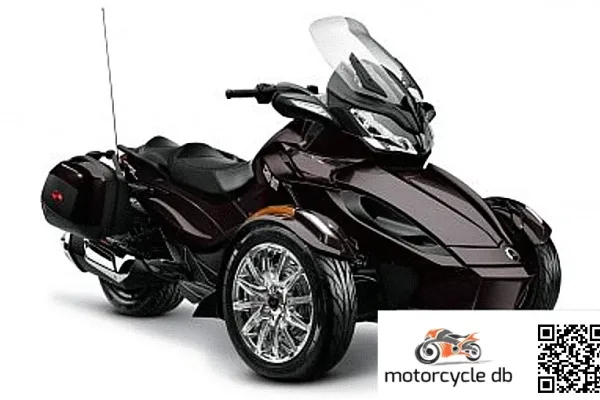

2016Can-Am Spyder ST

39 fields on record

The 2016 Can-Am Spyder ST is a three-wheeled roadster designed for riders seeking car-like stability with motorcycle thrills. Known for its distinctive trike handling, comfortable seating position, and strong touring capabilities with 25-liter fuel capacity, it appeals to those prioritizing confidence and control. The 1,714mm wheelbase and 110mm ground clearance deliver predictable performance on varied terrain.

Capacity: 998.0 ccm
Engine: V-Twin, four-stroke
Gearbox: 5-speed
Dry weight: 392.0 kg
Seat height: 737 mm
Power: 100.0 HP (73.0 kW) @ 7500 RPM

⇄ Compare with another bike ＋ Add to garage All model years

How it rides

Editorial estimate from the spec sheet - not lab tested

Off-road & trail5%

Cornering30%

City riding45%

Daily riding60%

Touring90%

Two-up85%

Track15%

Best for: Built for relaxed long-distance touring and highway cruising rather than sporty riding or commuting through tight traffic.
Built for: A stable, planted, and reassuring machine that prioritizes security and comfort over agility, rewarding smooth inputs and a relaxed cruising pace.
Not ideal for: Not suited to riders seeking sharp cornering feel, off-road capability, or a lightweight, flickable ride.

Scores are derived from the spec sheet using the same model across every bike, so they compare like for like.

Full specifications

Engine

Capacity: 998.0 ccm
Power: 100.0 HP (73.0 kW) @ 7500 RPM
Torque: 104.0 Nm (10.6 kgf-m) @ 5000 RPM
Engine type: V-Twin, four-stroke
Power/weight ratio: 0.2551 HP/kg (dry)
Bore x stroke: 97.0 x 68.0 mm
Compression: 12.2:1
Cooling system: Liquid
Fuel system: Injection
Starting: Electric
Valves per cylinder: 4

Transmission

Gearbox: 5-speed
Transmission type: Manual
Final drive: Belt
Clutch: Wet, multi-plate

Dimensions & weight

Wheelbase: 1714 mm
Overall length: 2667 mm
Overall width: 1506 mm
Overall height: 1332 mm
Seat height: 737 mm
Dry weight: 392.0 kg
Fuel capacity: 25.00 litres
Ground clearance: 110 mm
Oil capacity: 3.90 litres
Carrying capacity: 44 litre

Chassis & suspension

Front suspension: Double A-Arm with anti-roll bar. Gas charged shocks.
Rear suspension: Swing arm with Sachs monoshock.
Front wheel travel: 142 mm
Rear wheel travel: 152 mm

Brakes & wheels

Front brakes: Double disc. EBD, ABS. 4 piston calipers. Foot-actuated, fully integrated hydraulic 3-wheel braking system.
Front brakes diameter: 270 mm
Rear brakes: Single disc. EBD, ABS. Single piston calipers.
Rear brakes diameter: 270 mm
ABS: Yes
Front tyre: 165/65-R15
Rear tyre: 225/50-R15
