Enduro Bikes

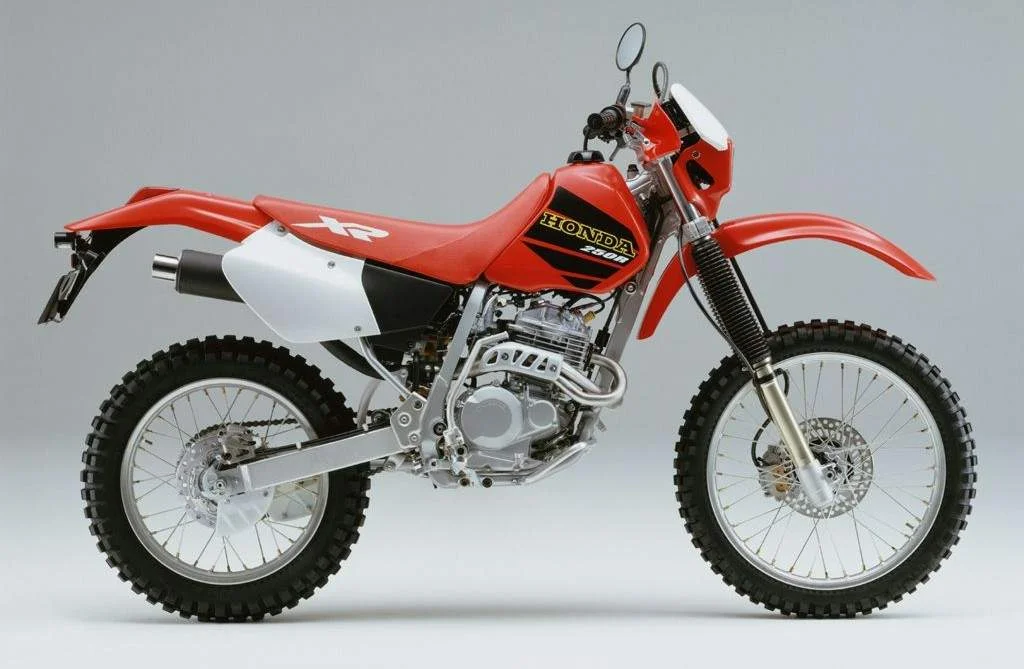

2002Honda XR 250 R
30 fields on record
The 2002 Honda XR 250 R is a lightweight dual-sport motorcycle ideal for beginner and intermediate riders seeking adventure on both road and trail. Its reliable single-cylinder four-stroke engine and balanced suspension geometry deliver accessible off-road performance and manageable handling characteristics. Best known for its durability and versatility, it remains a popular choice for dual-sport enthusiasts and budget-conscious riders.
- Capacity
- 249.0 ccm
- Engine
- Single, four-stroke
- Gearbox
- 6-speed
- Dry weight
- 108.9 kg
- Seat height
- 914 mm
- Power
- 24.9 HP (18.3 kW)
How it rides
Editorial estimate from the spec sheet - not lab tested- Best for
- Built as a dedicated air-cooled trail and enduro bike for tackling technical off-road terrain rather than covering long paved distances.
- Built for
- A raw, simple, and rugged single-cylinder trail machine that rewards skillful riding with excellent suspension travel and nimble handling in the dirt.
- Not ideal for
- Not a good fit for riders wanting a fast, comfortable, or long-distance road-going machine.
Scores are derived from the spec sheet using the same model across every bike, so they compare like for like.
Will it fit you?
Worked out in your browser - nothing is sent to usEngine
- Capacity
- 249.0 ccm
- Power
- 24.9 HP (18.3 kW)
- Engine type
- Single, four-stroke
- Power/weight ratio
- 0.2287 HP/kg (dry)
- Bore x stroke
- 73.0 x 59.5 mm
- Compression
- 10.2:1
- Cooling system
- Air
- Fuel system
- Carburettor
- Starting
- Kick
- Valves per cylinder
- 4
Transmission
- Gearbox
- 6-speed
- Transmission type
- Manual
- Final drive
- Chain
Dimensions & weight
- Wheelbase
- 1400 mm
- Seat height
- 914 mm
- Dry weight
- 108.9 kg
- Fuel capacity
- 10.90 litres
- Ground clearance
- 315 mm
- Reserve fuel capacity
- 2.30 litres
Chassis & suspension
- Front suspension
- 41mm leading-axle Kayaba cartridge fork with 20-position compression-damping adjustability
- Rear suspension
- Pro-Link Kayaba single-shock with spring-preload, 20-position compression- and 20-position rebound-damping adjustability.
- Front wheel travel
- 269 mm
- Rear wheel travel
- 269 mm
- Rake (fork angle)
- 25.3°
- Trail
- 94 mm
Brakes & wheels
- Front brakes
- Single disc
- Rear brakes
- Single disc
- Front tyre
- 80/100-21
- Rear tyre
- 100/100-18
Compiled from manufacturer documentation and user contributions, corrected on an ongoing basis. Spotted something wrong? Tell us.
What changed, year to year
Differences highlighted| Specification | 2001 | 2002 | 2003 | 2004 |
|---|---|---|---|---|
| Capacity | 249 cc | 249 cc | 249 cc | 249 cc |
| Dry weight | 109 kg | 109 kg | 109 kg | 109 kg |
| Seat height | 914 mm | 914 mm | 914 mm | 914 mm |
| Fuel capacity | 10.9 L | 10.9 L | 10.9 L | 9.1 L |
Illustrative - generated automatically by diffing the year records already on file, not a manufacturer-published changelog.
Rider Reviews
Common questions
What is the engine size of the Honda XR 250 R?
The 2002 Honda XR 250 R has a Capacity of 249.0 ccm (15.19 cubic inches).
What engine power does the Honda XR 250 R have?
The 2002 Honda XR 250 R has a Power of 24.9 HP (18.3 kW).
How many gears does the Honda XR 250 R have?
The 2002 Honda XR 250 R has a Gearbox of 6-speed.
How much does the Honda XR 250 R weigh?
The 2002 Honda XR 250 R has a Dry weight of 108.9 kg (240.1 pounds).
