Minibikes
2016Kawasaki KLX110
41 fields on record

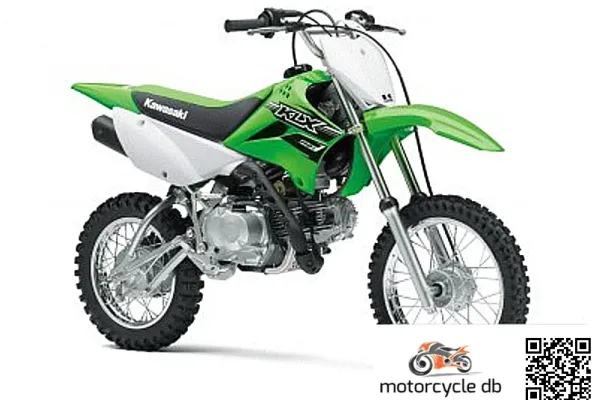

The 2016 Kawasaki KLX 110 is an entry-level dirt bike designed for young riders and beginners seeking a lightweight, manageable machine. Known for its compact dimensions, low seat height of 681mm, and forgiving handling characteristics, it excels in off-road training and recreational riding. Its modest 76.2kg weight and responsive suspension make it ideal for learning fundamental riding skills.
- Capacity
- 112.0 ccm
- Engine
- Single, four-stroke
- Gearbox
- 4-speed
- Dry weight
- 64.0 kg
- Seat height
- 681 mm
- Power
- 7.0 HP (5.1 kW)
How it rides
Editorial estimate from the spec sheet - not lab tested- Best for
- It is designed purely for casual, low-speed off-road play and learning, not for any kind of serious trail riding or commuting.
- Built for
- It has a friendly, unintimidating, slow-and-steady personality that rewards patience over excitement.
- Not ideal for
- It is not suitable for adult riders, highway use, touring, or anyone seeking real speed or performance.
Scores are derived from the spec sheet using the same model across every bike, so they compare like for like.
Engine
- Capacity
- 112.0 ccm
- Power
- 7.0 HP (5.1 kW)
- Engine type
- Single, four-stroke
- Power/weight ratio
- 0.1094 HP/kg (dry)
- Bore x stroke
- 53.0 x 50.6 mm
- Compression
- 9.5:1
- Cooling system
- Air
- Fuel system
- Carburettor
- Starting
- Electric & kick
- Ignition
- CDI
- Valves per cylinder
- 2
- Lubrication system
- Forced lubrication, wet sump
Transmission
- Gearbox
- 4-speed
- Transmission type
- Manual
- Final drive
- Chain
- Clutch
- Automatic
Dimensions & weight
- Wheelbase
- 1074 mm
- Overall length
- 1560 mm
- Overall width
- 650 mm
- Overall height
- 955 mm
- Seat height
- 681 mm
- Dry weight
- 64.0 kg
- Wet weight
- 76.2 kg
- Fuel capacity
- 3.80 litres
- Ground clearance
- 216 mm
Chassis & suspension
- Frame
- Backbone frame, high-tensile steel
- Front suspension
- 30mm hydraulic telescopic fork
- Rear suspension
- Swingarm with single hydraulic shock
- Front wheel travel
- 109 mm
- Rear wheel travel
- 109 mm
- Rake (fork angle)
- 24.8°
- Trail
- 51 mm
Brakes & wheels
- Front brakes
- Expanding brake (drum brake)
- Front brakes diameter
- 110 mm
- Rear brakes
- Expanding brake (drum brake)
- Rear brakes diameter
- 110 mm
- Front tyre
- 2.50-14
- Rear tyre
- 3.00-12
Other
- Color options
- Lime Green
- Warranty
- 6
Compiled from manufacturer documentation and user contributions, corrected on an ongoing basis. Spotted something wrong? Tell us.
What changed, year to year
Differences highlighted| Specification | 2004 | 2008 | 2012 | 2016 | 2020 |
|---|---|---|---|---|---|
| Capacity | 111 cc | 111 cc | 111 cc | 112 cc | 112 cc |
| Dry weight | 64 kg | 64 kg | 64 kg | 64 kg | 64 kg |
| Seat height | 650 mm | 650 mm | 681 mm | 681 mm | 680 mm |
| Fuel capacity | 3.8 L | 3.8 L | 3.8 L | 3.8 L | 3.8 L |
Illustrative - generated automatically by diffing the year records already on file, not a manufacturer-published changelog.
Rider Reviews
Common questions
What is the engine size of the Kawasaki KLX110?
The 2016 Kawasaki KLX110 has a Capacity of 112.0 ccm (6.83 cubic inches).
What engine power does the Kawasaki KLX110 have?
The 2016 Kawasaki KLX110 has a Power of 7.0 HP (5.1 kW).
How many gears does the Kawasaki KLX110 have?
The 2016 Kawasaki KLX110 has a Gearbox of 4-speed.
How much does the Kawasaki KLX110 weigh?
The 2016 Kawasaki KLX110 has a Dry weight of 64.0 kg (141.1 pounds).
