Dual-Sport Motorcycles
2024Kawasaki KLX230
46 fields on record
The 2024 Kawasaki KLX230 is a lightweight enduro bike designed for beginners and recreational riders seeking an accessible off-road platform. Powered by a fuel-injected 233cc single-cylinder engine paired with a six-speed transmission, it delivers manageable power with excellent reliability. Known for its approachable seat height and nimble handling, the KLX230 excels as an entry-level trail bike for learning fundamental off-road skills.
- Capacity
- 233.0 ccm
- Engine
- Single, four-stroke
- Gearbox
- 6-speed
- Wet weight
- 132.0 kg
- Seat height
- 884 mm
- Power
- 20.3 HP (14.9 kW)
How it rides
Editorial estimate from the spec sheet - not lab tested- Best for
- Designed primarily as a lightweight trail and dual-sport bike for casual off-road exploration and easy commuting rather than outright performance.
- Built for
- A friendly, forgiving, and nimble machine that rewards playful low-speed handling over raw speed or long-distance comfort.
- Not ideal for
- Not a good fit for riders seeking high-speed highway cruising, heavy touring loads, or serious two-up passenger comfort.
Scores are derived from the spec sheet using the same model across every bike, so they compare like for like.
Will it fit you?
Worked out in your browser - nothing is sent to usRange and running costs
Worked out in your browser - nothing is sent to usBased on the published US (EPA-style) fuel economy estimate and tank size. Real-world figures depend on how and where you ride, and the last litres of a tank are reserve. Prices shown greyed are examples - type your own.
Engine
- Capacity
- 233.0 ccm
- Power
- 20.3 HP (14.9 kW)
- CO2 Emissions
- 69 CO2 g/km
- EPA Certificate No.
- RKAXC.233AAB-024-R01
- EPA Est. Fuel Consumption
- 2.95 L/100km (79.7 US mpg)
- EPA CO Emissions
- 0.9 CO g/km
- Torque
- 19.8 Nm (2.0 kgf-m) @ 6100 RPM
- Engine type
- Single, four-stroke
- Power/weight ratio
- 0.1538 HP/kg (wet)
- Bore x stroke
- 67.0 x 66.0 mm
- Compression
- 9.4:1
- Cooling system
- Air
- Fuel system
- Injection
- Starting
- Electric
- Ignition
- TCBI Electronic Advance
- Aspiration
- Naturally aspirated
- Valves per cylinder
- 2
- Lubrication system
- Forced lubrication, wet sump
Transmission
- Gearbox
- 6-speed
- Transmission type
- Manual
- Final drive
- Chain
- Clutch
- Wet multi-disc, manual
Dimensions & weight
- Wheelbase
- 1379 mm
- Overall length
- 2106 mm
- Overall width
- 836 mm
- Overall height
- 1166 mm
- Seat height
- 884 mm
- Wet weight
- 132.0 kg
- Fuel capacity
- 7.60 litres
- Ground clearance
- 264 mm
- Dry weight
- Not on record - add it
Chassis & suspension

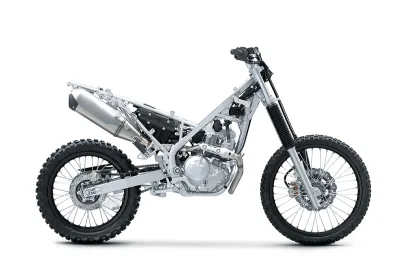

- Frame
- High-tensile steel, box-section perimeter
- Front suspension
- 37mm telescopic fork
- Rear suspension
- Uni-Trak® linkage system and single shock with adjustable spring preload
- Front wheel travel
- 221 mm
- Rear wheel travel
- 224 mm
- Rake (fork angle)
- 27.5°
- Trail
- 117 mm
Brakes & wheels
- Front brakes
- Single disc. Dual-piston. Petal disc.
- Front brakes diameter
- 240 mm
- Rear brakes
- Single disc. Single-piston. Petal disc.
- Front tyre
- 2.75-21
- Rear tyre
- 4.10-18
Other
- Color options
- Battle Gray
- Warranty
- 12
- Fuel Tank Material
- Metal
Specs last verified against published sources: .
Compiled from manufacturer documentation and user contributions, corrected on an ongoing basis. Spotted something wrong? Tell us.
What changed, year to year
Differences highlighted| Specification | 2020 | 2022 | 2023 | 2024 | 2025 | 2026 |
|---|---|---|---|---|---|---|
| Capacity | 233 cc | 233 cc | 233 cc | 233 cc | 233 cc | 233 cc |
| Dry weight | — | — | — | — | — | 126 kg |
| Seat height | 885 mm | 884 mm | 884 mm | 884 mm | 884 mm | 846 mm |
| Fuel capacity | 7.6 L | 7.6 L | 7.6 L | 7.6 L | 7.6 L | 7.6 L |
Illustrative - generated automatically by diffing the year records already on file, not a manufacturer-published changelog.
Rider Reviews
Common questions
What is the engine size of the Kawasaki KLX230?
The 2024 Kawasaki KLX230 has a Capacity of 233.0 ccm (14.22 cubic inches).
What engine power does the Kawasaki KLX230 have?
The 2024 Kawasaki KLX230 has a Power of 20.3 HP (14.9 kW).
How many gears does the Kawasaki KLX230 have?
The 2024 Kawasaki KLX230 has a Gearbox of 6-speed.
What is the torque of the Kawasaki KLX230?
The 2024 Kawasaki KLX230 has a Torque of 19.8 Nm (2.0 kgf-m or 14.6 ft.lbs) @ 6100 RPM.
How much does the Kawasaki KLX230 weigh?
The 2024 Kawasaki KLX230 has a Wet weight of 132.0 kg (291.0 pounds).
