2027 Kawasaki KLX 230R S
- 233 ccCapacity
- 20.3 hp (14.9 kW)Power
- 19.6 NmTorque
- 118.9 kgKerb weight
- 874 mmSeat height

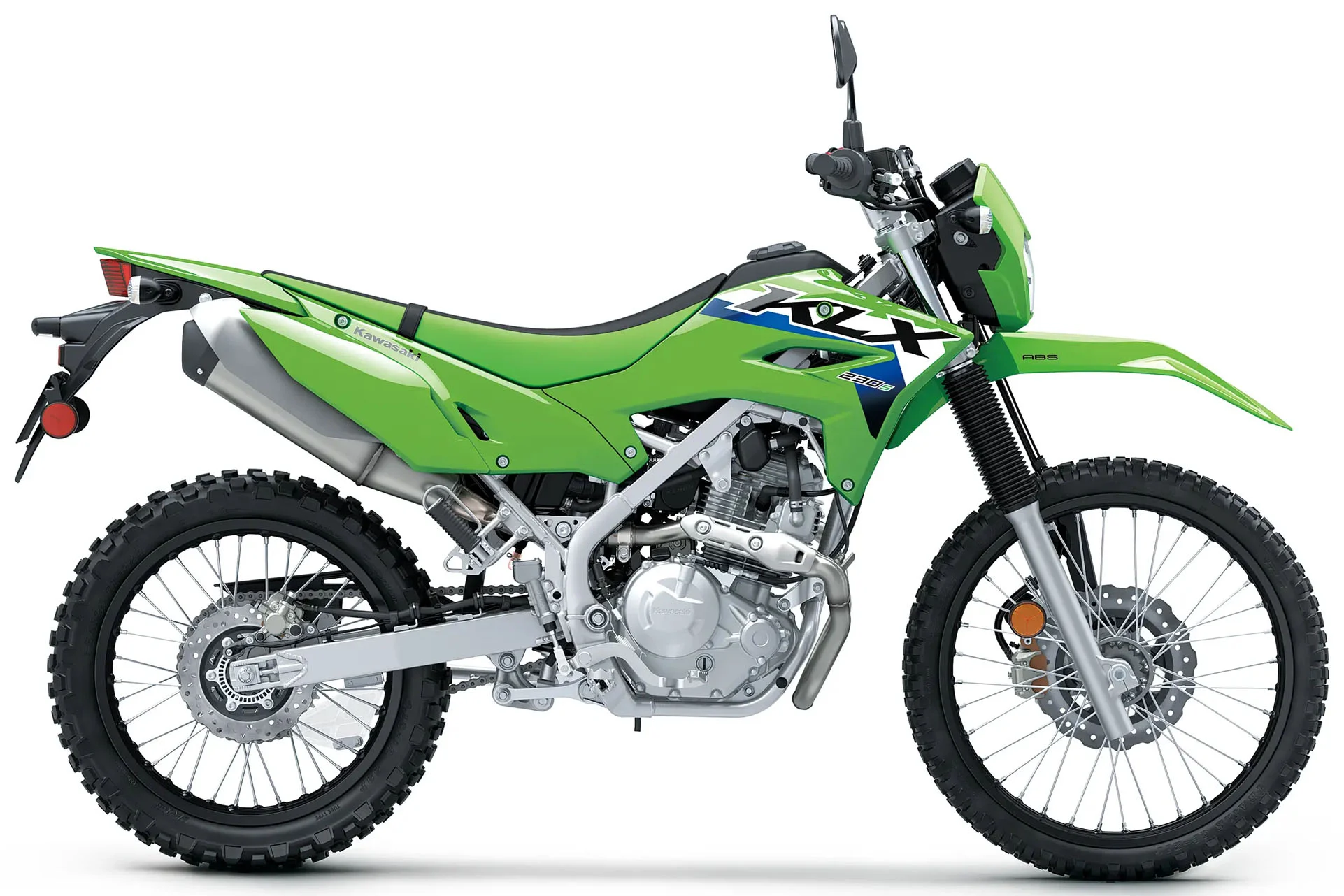

The 2027 Kawasaki KLX 230R S is a lightweight enduro motorcycle designed for beginner to intermediate off-road riders seeking affordable trail adventure. Its 233cc air-cooled single-cylinder engine delivers accessible power with excellent fuel efficiency, making it ideal for weekend riding and skill development. Known for its reliability and manageable seat height, this bike excels in technical terrain and tight trail navigation.
Check a bike by registration
Buying a used one? Enter its registration to see its MOT history and recorded mileage.
Engine
| Type | Single-cylinder, 4-stroke |
| Capacity | 233 cc |
| Bore x Stroke | 67 x 66 mm |
| Compression | 9.4:1 |
| Valves | 4 per cylinder |
| Cooling | Air |
| Fuel system | Injection |
| Ignition | TCBI Electronic Advance |
| Starter | Electric |
Transmission
| Gearbox | 6-speed |
| Final drive | Chain |
| Clutch | Wet multi-disc, manual |
Performance
| Max power | 20.3 hp (14.9 kW) |
| Max torque | 19.6 Nm @ 6,400 rpm |
| Power to weight | 0.17 hp/kg (kerb) |
Chassis
| Frame | High-tensile steel, box section perimeter |
| Front suspension | 37mm telescopic fork |
| Rear suspension | Uni-Trak® linkage system and single shock with adjustable spring preload |
| Front brake | Single disc. Petal disc. Dual-piston caliper. |
| Rear brake | Single disc. Petal disc. Single-piston caliper. |
| Tyres | 80/100-21 / 100/100-18 |
Dimensions
| Overall length | 2,045 mm |
| Overall width | 846 mm |
| Overall height | 1,186 mm |
| Wheelbase | 1,354 mm |
| Seat height | 874 mm |
| Ground clearance | 269 mm |
| Rake / trail | 24.6° / 99 mm |
Weights and capacities
| Kerb weight | 118.9 kg |
| Fuel tank | 7.6 l |
Engine
- Capacity
- 233.0 ccm
- Power
- 20.3 HP (14.9 kW)
- Torque
- 19.6 Nm (2.0 kgf-m) @ 6400 RPM
- Engine type
- Single, four-stroke
- Power/weight ratio
- 0.1707 HP/kg (wet)
- Bore x stroke
- 67.0 x 66.0 mm
- Compression
- 9.4:1
- Cooling system
- Air
- Fuel system
- Injection
- Starting
- Electric
- Ignition
- TCBI Electronic Advance
- Valves per cylinder
- 4
Transmission
- Gearbox
- 6-speed
- Transmission type
- Manual
- Final drive
- Chain
- Clutch
- Wet multi-disc, manual
Dimensions & weight
- Wheelbase
- 1354 mm
- Overall length
- 2045 mm
- Overall width
- 846 mm
- Overall height
- 1186 mm
- Seat height
- 874 mm
- Wet weight
- 118.9 kg
- Fuel capacity
- 7.60 litres
- Ground clearance
- 269 mm
- Dry weight
- Not on record - add it
Chassis & suspension
- Frame
- High-tensile steel, box section perimeter
- Front suspension
- 37mm telescopic fork
- Rear suspension
- Uni-Trak® linkage system and single shock with adjustable spring preload
- Front wheel travel
- 221 mm
- Rear wheel travel
- 224 mm
- Rake (fork angle)
- 24.6°
- Trail
- 99 mm
Brakes & wheels
- Front brakes
- Single disc. Petal disc. Dual-piston caliper.
- Front brakes diameter
- 240 mm
- Rear brakes
- Single disc. Petal disc. Single-piston caliper.
- Front tyre
- 80/100-21
- Rear tyre
- 100/100-18
Other
- Color options
- Lime Green
Specs last verified against published sources: .
Compiled from manufacturer documentation and user contributions, corrected on an ongoing basis. Spotted something wrong? Tell us.
38 fields on record · last reviewed 7 Oct 2026 · See all 38 specifications
Reliability & safety
How the score works »No reliability score, safety recalls or owner complaints on record for this bike yet.
Check a bike by VIN »How it rides
Editorial estimate from the spec sheet - not lab tested- Best for
- Built for trail riding, technical off-road exploration, and casual dirt fun rather than speed or highway use.
- Built for
- A friendly, forgiving, air-cooled trail companion that favors easy control and long suspension travel over outright performance.
- Not ideal for
- Not a good fit for riders wanting sustained highway speeds, passenger comfort, or long-distance touring capability.
Scores are derived from the spec sheet using the same model across every bike, so they compare like for like.
Will it fit you?
Worked out in your browser - nothing is sent to usModel history
5 model years on fileWhat changed, year to year
Differences highlighted| Specification | 2023 | 2024 | 2025 | 2026 | 2027 |
|---|---|---|---|---|---|
| Capacity | 233 cc | 233 cc | 233 cc | 233 cc | 233 cc |
| Seat height | 899 mm | 899 mm | 874 mm | 874 mm | 874 mm |
| Fuel capacity | 6.4 L | 6.4 L | 7.6 L | 7.6 L | 7.6 L |
Illustrative - generated automatically by diffing the year records already on file, not a manufacturer-published changelog.
Own one
Parts diagrams
No diagrams for this bike yet. See which bikes have them.
Browse parts »Add it to My Garage
Free logbook: service history, reminders, recall alerts and running costs.
Add to Garage »Shop this bike
Affiliate linksWe may earn a commission from qualifying eBay or Amazon purchases made through these links. As an Amazon Associate I earn from qualifying purchases.
Rider Reviews
Common questions
What is the engine size of the Kawasaki KLX 230R S?
The 2027 Kawasaki KLX 230R S has a Capacity of 233.0 ccm (14.22 cubic inches).
What engine power does the Kawasaki KLX 230R S have?
The 2027 Kawasaki KLX 230R S has a Power of 20.3 HP (14.9 kW).
How many gears does the Kawasaki KLX 230R S have?
The 2027 Kawasaki KLX 230R S has a Gearbox of 6-speed.
What is the torque of the Kawasaki KLX 230R S?
The 2027 Kawasaki KLX 230R S has a Torque of 19.6 Nm (2.0 kgf-m or 14.5 ft.lbs) @ 6400 RPM.
How much does the Kawasaki KLX 230R S weigh?
The 2027 Kawasaki KLX 230R S has a Wet weight of 118.9 kg (262.1 pounds).
