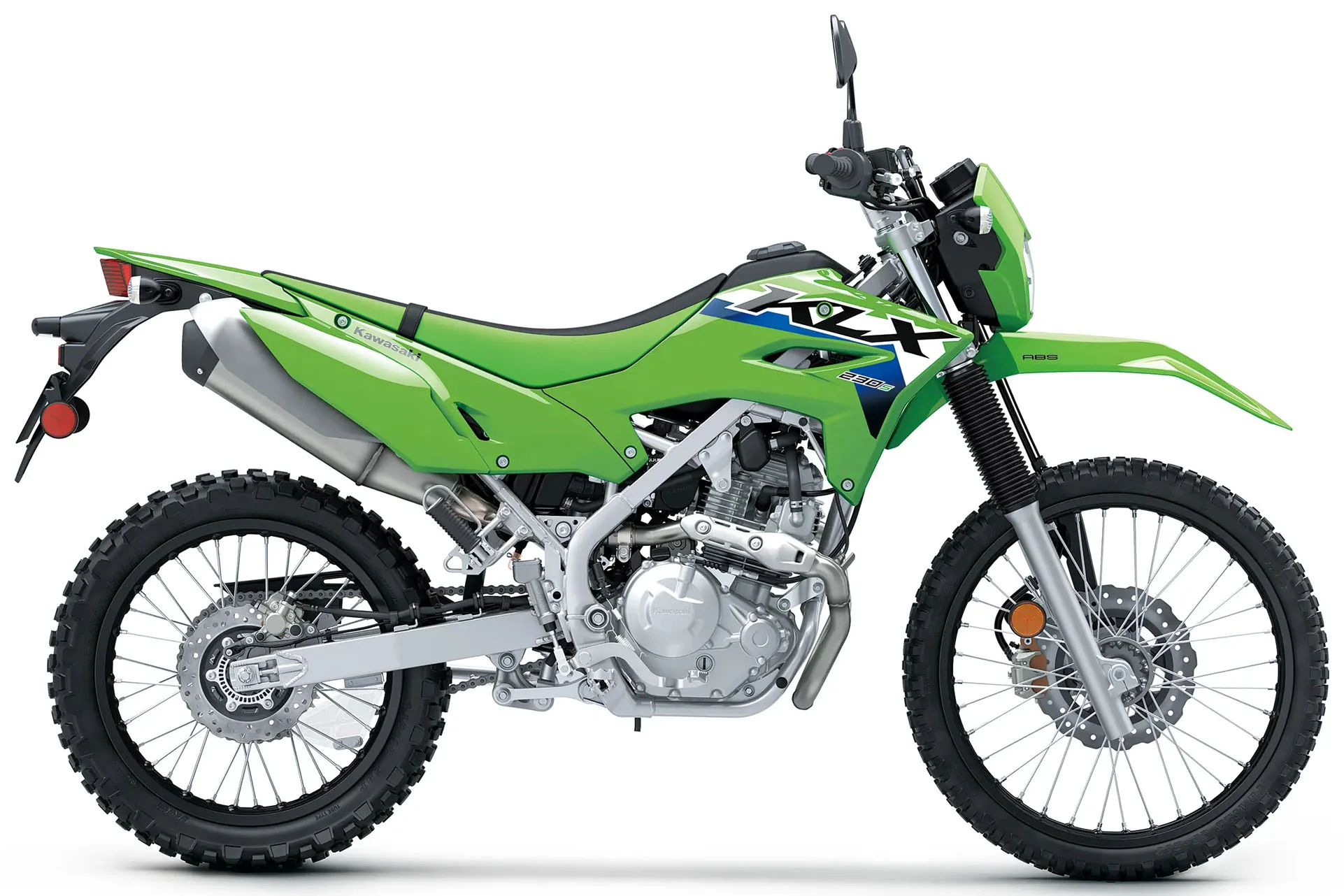

2027 Kawasaki KLX230R
- 233 ccCapacity
- 20.3 hp (14.9 kW)Power
- 20 NmTorque
- 120 kgKerb weight
- 904 mmSeat height

The 2027 Kawasaki KLX 230R is a lightweight enduro bike designed for beginner and intermediate off-road riders seeking an accessible entry point into dual-sport riding. Known for its manageable 233cc single-cylinder engine, forgiving handling, and affordable price point, it excels on trails and mixed terrain. Its compact dimensions and low seat height make it ideal for riders building confidence in off-road environments.
Check a bike by registration
Buying a used one? Enter its registration to see its MOT history and recorded mileage.
Engine
| Type | Single-cylinder, 4-stroke |
| Capacity | 233 cc |
| Bore x Stroke | 67 x 66 mm |
| Compression | 9.4:1 |
| Valves | 4 per cylinder |
| Cooling | Air |
| Fuel system | Injection |
| Ignition | TCBI Electronic Advance |
| Starter | Electric |
Transmission
| Gearbox | 6-speed |
| Final drive | Chain |
| Clutch | Wet multi-disc, manual |
Performance
| Max power | 20.3 hp (14.9 kW) |
| Max torque | 20 Nm @ 6,400 rpm |
| Power to weight | 0.17 hp/kg (kerb) |
Chassis
| Frame | High-tensile steel, box section perimeter |
| Front suspension | 37mm telescopic fork |
| Rear suspension | Uni-Trak® linkage system and single shock with adjustable spring preload |
| Front brake | Single disc. Petal disc. Dual-piston caliper. |
| Rear brake | Single disc. Petal disc. Single-piston caliper. |
| Tyres | 80/100-21 / 100/100-18 |
Dimensions
| Overall length | 2,045 mm |
| Overall width | 846 mm |
| Overall height | 1,199 mm |
| Wheelbase | 1,374 mm |
| Seat height | 904 mm |
| Ground clearance | 290 mm |
| Rake / trail | 26.5° / 112 mm |
Weights and capacities
| Kerb weight | 120 kg |
| Fuel tank | 7.6 l |
Engine
- Capacity
- 233.0 ccm
- Power
- 20.3 HP (14.9 kW)
- Torque
- 20.0 Nm (2.0 kgf-m) @ 6400 RPM
- Engine type
- Single, four-stroke
- Power/weight ratio
- 0.1692 HP/kg (wet)
- Bore x stroke
- 67.0 x 66.0 mm
- Compression
- 9.4:1
- Cooling system
- Air
- Fuel system
- Injection
- Starting
- Electric
- Ignition
- TCBI Electronic Advance
- Valves per cylinder
- 4
- Lubrication system
- Forced lubrication, wet sump
Transmission
- Gearbox
- 6-speed
- Transmission type
- Manual
- Final drive
- Chain
- Clutch
- Wet multi-disc, manual
Dimensions & weight
- Wheelbase
- 1374 mm
- Overall length
- 2045 mm
- Overall width
- 846 mm
- Overall height
- 1199 mm
- Seat height
- 904 mm
- Wet weight
- 120.0 kg
- Fuel capacity
- 7.60 litres
- Ground clearance
- 290 mm
- Dry weight
- Not on record - add it
Chassis & suspension
- Frame
- High-tensile steel, box section perimeter
- Front suspension
- 37mm telescopic fork
- Rear suspension
- Uni-Trak® linkage system and single shock with adjustable spring preload
- Front wheel travel
- 249 mm
- Rear wheel travel
- 251 mm
- Rake (fork angle)
- 26.5°
- Trail
- 112 mm
Brakes & wheels
- Front brakes
- Single disc. Petal disc. Dual-piston caliper.
- Front brakes diameter
- 240 mm
- Rear brakes
- Single disc. Petal disc. Single-piston caliper.
- Rear brakes diameter
- 220 mm
- Front tyre
- 80/100-21
- Rear tyre
- 100/100-18
Other
- Color options
- Lime Green, Battle Gray
Specs last verified against published sources: .
Compiled from manufacturer documentation and user contributions, corrected on an ongoing basis. Spotted something wrong? Tell us.
40 fields on record · last reviewed 7 Oct 2026 · See all 40 specifications
Reliability & safety
How the score works »No reliability score, safety recalls or owner complaints on record for this bike yet.
Check a bike by VIN »How it rides
Editorial estimate from the spec sheet - not lab tested- Best for
- Built as a trail and enduro machine for exploring dirt roads, single-track, and light technical terrain rather than for speed or pavement use.
- Built for
- A friendly, forgiving trail companion with soft long-travel suspension and predictable, low-stress power that rewards playful, momentum-based riding over aggressive throttle use.
- Not ideal for
- Not the right choice for highway commuting, high-speed touring, or riders wanting strong outright acceleration and top-end performance.
Scores are derived from the spec sheet using the same model across every bike, so they compare like for like.
Will it fit you?
Worked out in your browser - nothing is sent to usModel history
8 model years on fileWhat changed, year to year
Differences highlighted| Specification | 2020 | 2022 | 2024 | 2025 | 2027 |
|---|---|---|---|---|---|
| Capacity | 233 cc | 233 cc | 233 cc | 233 cc | 233 cc |
| Seat height | 925 mm | 884 mm | 919 mm | 904 mm | 904 mm |
| Fuel capacity | 7.6 L | 7.6 L | 6.4 L | 7.6 L | 7.6 L |
Illustrative - generated automatically by diffing the year records already on file, not a manufacturer-published changelog.
Own one
Parts diagrams
No diagrams for this bike yet. See which bikes have them.
Browse parts »Add it to My Garage
Free logbook: service history, reminders, recall alerts and running costs.
Add to Garage »Shop this bike
Affiliate linksWe may earn a commission from qualifying eBay or Amazon purchases made through these links. As an Amazon Associate I earn from qualifying purchases.
Rider Reviews
Common questions
What is the engine size of the Kawasaki KLX230R?
The 2027 Kawasaki KLX230R has a Capacity of 233.0 ccm (14.22 cubic inches).
What engine power does the Kawasaki KLX230R have?
The 2027 Kawasaki KLX230R has a Power of 20.3 HP (14.9 kW).
How many gears does the Kawasaki KLX230R have?
The 2027 Kawasaki KLX230R has a Gearbox of 6-speed.
What is the torque of the Kawasaki KLX230R?
The 2027 Kawasaki KLX230R has a Torque of 20.0 Nm (2.0 kgf-m or 14.8 ft.lbs) @ 6400 RPM.
How much does the Kawasaki KLX230R weigh?
The 2027 Kawasaki KLX230R has a Wet weight of 120.0 kg (264.6 pounds).
