Enduro Bikes

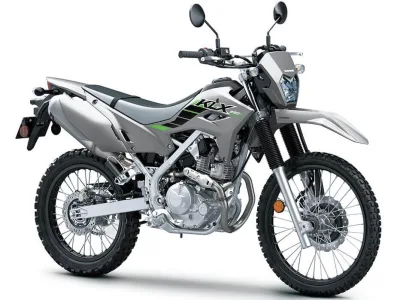

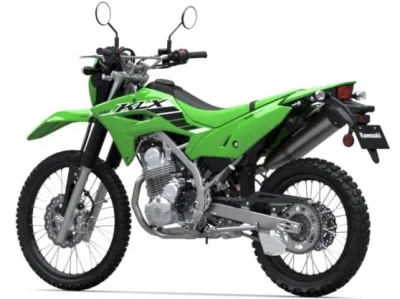

2024Kawasaki KLX230S
47 fields on record
The 2024 Kawasaki KLX 230S is a lightweight enduro bike designed for beginner and intermediate off-road riders seeking an accessible entry point into dirt biking. Known for its manageable 233cc single-cylinder engine and forgiving ergonomics, it excels in tight trails and technical terrain while remaining easy to handle for less experienced riders.
- Capacity
- 233.0 ccm
- Engine
- Single, four-stroke
- Gearbox
- 6-speed
- Wet weight
- 134.0 kg
- Seat height
- 831 mm
- Power
- 20.3 HP (14.9 kW)
How it rides
Editorial estimate from the spec sheet - not lab tested- Best for
- Built primarily for trail riding and light off-road exploration, with just enough road manners for short commutes or link-ups between trails.
- Built for
- A friendly, easygoing dual-purpose trail bike that favors playful, low-speed agility over outright speed or long-distance comfort.
- Not ideal for
- Not a good match for riders wanting highway speed, extended touring comfort, or a bike capable of carrying a passenger any real distance.
Scores are derived from the spec sheet using the same model across every bike, so they compare like for like.
Will it fit you?
Worked out in your browser - nothing is sent to usRange and running costs
Worked out in your browser - nothing is sent to usBased on the published US (EPA-style) fuel economy estimate and tank size. Real-world figures depend on how and where you ride, and the last litres of a tank are reserve. Prices shown greyed are examples - type your own.
Engine
- Capacity
- 233.0 ccm
- Power
- 20.3 HP (14.9 kW)
- CO2 Emissions
- 69 CO2 g/km
- EPA Certificate No.
- RKAXC.233AAB-024-R01
- EPA Est. Fuel Consumption
- 2.95 L/100km (79.7 US mpg)
- EPA CO Emissions
- 0.9 CO g/km
- Torque
- 19.8 Nm (2.0 kgf-m) @ 6100 RPM
- Engine type
- Single, four-stroke
- Power/weight ratio
- 0.1515 HP/kg (wet)
- Bore x stroke
- 67.0 x 66.0 mm
- Compression
- 9.4:1
- Cooling system
- Air
- Fuel system
- Injection
- Starting
- Electric
- Ignition
- TCBI Electronic Advance
- Aspiration
- Naturally aspirated
- Valves per cylinder
- 2
- Lubrication system
- Forced lubrication, wet sump
Transmission
- Gearbox
- 6-speed
- Transmission type
- Manual
- Final drive
- Chain
- Clutch
- Wet multi-disc, manual
Dimensions & weight
- Wheelbase
- 1379 mm
- Overall length
- 2080 mm
- Overall width
- 836 mm
- Overall height
- 1110 mm
- Seat height
- 831 mm
- Wet weight
- 134.0 kg
- Fuel capacity
- 7.60 litres
- Ground clearance
- 211 mm
- Dry weight
- Not on record - add it
Chassis & suspension
- Frame
- High-tensile steel, box-section perimeter
- Front suspension
- 37mm telescopic fork
- Rear suspension
- Uni-Trak® linkage system and single shock with adjustable spring preload
- Front wheel travel
- 157 mm
- Rear wheel travel
- 168 mm
- Rake (fork angle)
- 27.5°
- Trail
- 117 mm
Brakes & wheels
- Front brakes
- Single disc. Dual-piston. Petal disc. Optional ABS.
- Front brakes diameter
- 265 mm
- Rear brakes
- Single disc. Single-piston. Petal disc. Optional ABS.
- ABS
- Optional
- Front tyre
- 2.75-21
- Rear tyre
- 4.10-18
Other
- Color options
- Lime Green, Battle Gray
- Warranty
- 12
- Fuel Tank Material
- Metal
Specs last verified against published sources: .
Compiled from manufacturer documentation and user contributions, corrected on an ongoing basis. Spotted something wrong? Tell us.
What changed, year to year
Differences highlighted| Specification | 2022 | 2023 | 2024 | 2026 | 2027 |
|---|---|---|---|---|---|
| Capacity | 233 cc | 233 cc | 233 cc | 233 cc | 233 cc |
| Dry weight | — | — | — | 126 kg | 126 kg |
| Seat height | 831 mm | 831 mm | 831 mm | 846 mm | 846 mm |
| Fuel capacity | 7.6 L | 7.6 L | 7.6 L | 7.6 L | 7.6 L |
Illustrative - generated automatically by diffing the year records already on file, not a manufacturer-published changelog.
Rider Reviews
Common questions
What is the engine size of the Kawasaki KLX230S?
The 2024 Kawasaki KLX230S has a Capacity of 233.0 ccm (14.22 cubic inches).
What engine power does the Kawasaki KLX230S have?
The 2024 Kawasaki KLX230S has a Power of 20.3 HP (14.9 kW).
How many gears does the Kawasaki KLX230S have?
The 2024 Kawasaki KLX230S has a Gearbox of 6-speed.
What is the torque of the Kawasaki KLX230S?
The 2024 Kawasaki KLX230S has a Torque of 19.8 Nm (2.0 kgf-m or 14.6 ft.lbs) @ 6100 RPM.
How much does the Kawasaki KLX230S weigh?
The 2024 Kawasaki KLX230S has a Wet weight of 134.0 kg (295.4 pounds).
