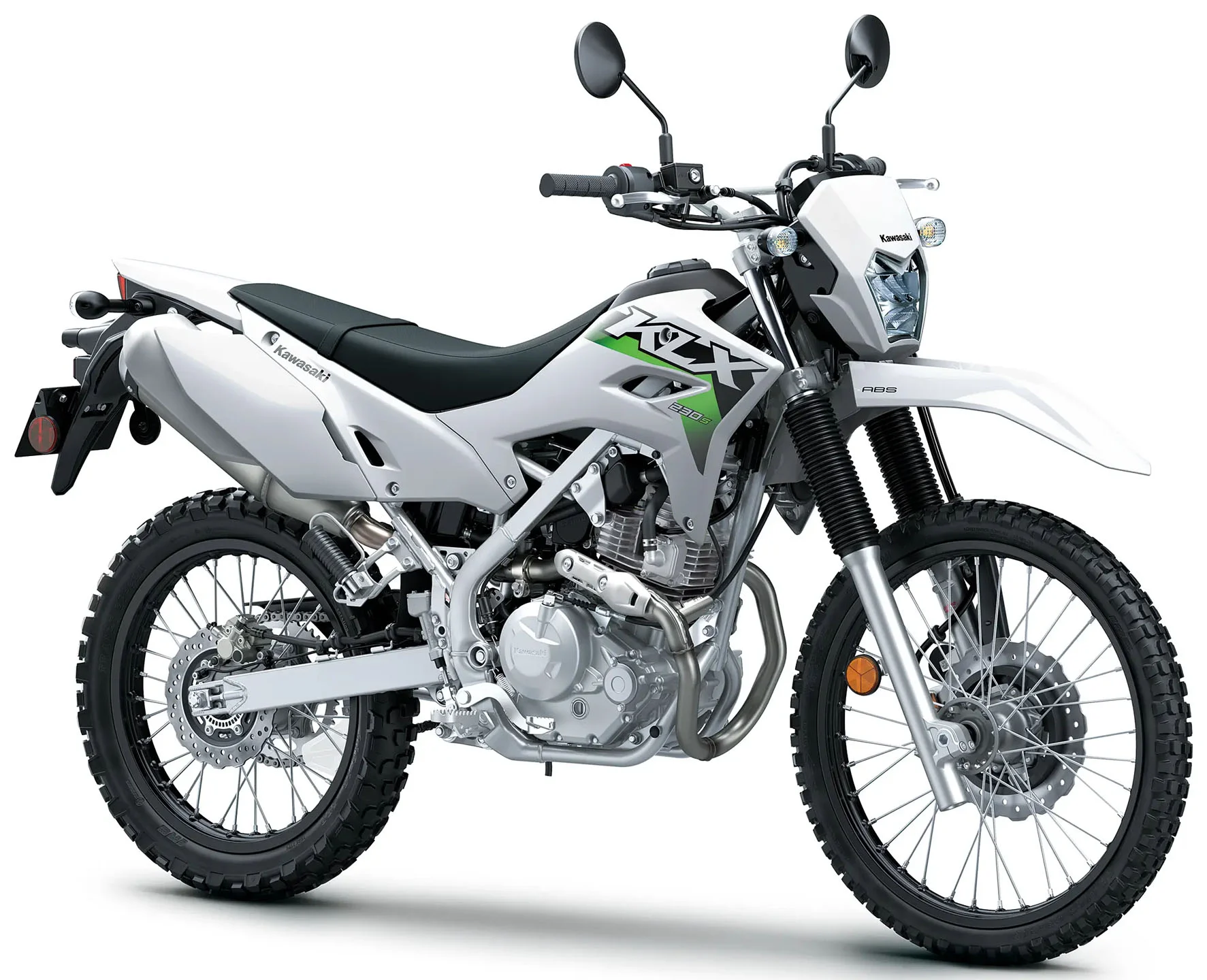

2027 Kawasaki KLX230S
- 233 ccCapacity
- 17 hp (12.7 kW)Power
- 17.6 NmTorque
- 133 kgKerb weight
- 846 mmSeat height

The 2027 Kawasaki KLX230S is an accessible dual-sport designed for beginner and intermediate riders seeking lightweight adventure. Its manageable 233cc engine, low 33.3-inch seat height, and nimble handling make it ideal for both street and light trail riding. Best known for reliability and affordability, the KLX230S excels as an entry-level platform for riders developing dirt bike skills.
Check a bike by registration
Buying a used one? Enter its registration to see its MOT history and recorded mileage.
Engine
| Type | Single-cylinder, 4-stroke |
| Capacity | 233 cc |
| Bore x Stroke | 67 x 66 mm |
| Compression | 9.4:1 |
| Valves | 2 per cylinder |
| Cooling | Air |
| Fuel system | Injection |
| Ignition | TCBI with Electronic Advance |
| Starter | Electric |
Transmission
| Gearbox | 6-speed |
| Final drive | Chain |
| Clutch | Wet multi-disc, manual |
Performance
| Max power | 17 hp (12.7 kW) @ 8,000 rpm |
| Max torque | 17.6 Nm @ 6,400 rpm |
| Power to weight | 0.13 hp/kg (kerb) |
Chassis
| Front brake | Single 240mm (265mm ABS Model) petal disc with a dual-piston caliper (and ABS) |
| ABS | Optional |
| Tyres | 2.75 x 21 / 4.10 x 18 |
Dimensions
| Overall length | 2,080 mm |
| Overall width | 846 mm |
| Overall height | 1,140 mm |
| Wheelbase | 1,364 mm |
| Seat height | 846 mm |
| Ground clearance | 239 mm |
| Rake / trail | 24.6° / 97 mm |
Weights and capacities
| Kerb weight | 133 kg |
| Dry weight | 126 kg |
| Fuel tank | 7.6 l |
Engine
- Capacity
- 233.0 ccm
- Power
- 17.0 HP (12.7 kW) @ 8000 RPM
- Torque
- 17.6 Nm (1.8 kgf-m) @ 6400 RPM
- Engine type
- Single, four-stroke
- Power/weight ratio
- 0.1349 HP/kg (dry)
- Bore x stroke
- 67.0 x 66.0 mm
- Compression
- 9.4:1
- Cooling system
- Air
- Fuel system
- Injection
- Starting
- Electric
- Ignition
- TCBI with Electronic Advance
- Aspiration
- Naturally aspirated
- Valves per cylinder
- 2
Transmission
- Gearbox
- 6-speed
- Transmission type
- Manual
- Final drive
- Chain
- Clutch
- Wet multi-disc, manual
Dimensions & weight
- Wheelbase
- 1364 mm
- Overall length
- 2080 mm
- Overall width
- 846 mm
- Overall height
- 1140 mm
- Seat height
- 846 mm
- Dry weight
- 126.0 kg
- Wet weight
- 133.0 kg
- Fuel capacity
- 7.60 litres
- Ground clearance
- 239 mm
Chassis & suspension
- Front wheel travel
- 201 mm
- Rear wheel travel
- 224 mm
- Rake (fork angle)
- 24.6°
- Trail
- 97 mm
Brakes & wheels
- Front brakes
- Single 240mm (265mm ABS Model) petal disc with a dual-piston caliper (and ABS)
- Front brakes diameter
- 240 mm
- Rear brakes diameter
- 220 mm
- ABS
- Optional
- Front tyre
- 2.75 x 21
- Rear tyre
- 4.10 x 18
Other
- Fuel Tank Material
- Metal
Specs last verified against published sources: .
Compiled from manufacturer documentation and user contributions, corrected on an ongoing basis. Spotted something wrong? Tell us.
38 fields on record · last reviewed 20 Nov 2026 · See all 38 specifications
Reliability & safety
How the score works »No reliability score, safety recalls or owner complaints on record for this bike yet.
Check a bike by VIN »How it rides
Editorial estimate from the spec sheet - not lab tested- Best for
- It is designed as an easygoing dual-sport for light trail exploration, commuting, and general recreational riding rather than outright speed or long-distance touring.
- Built for
- It has a friendly, forgiving character with mellow low-end torque delivery suited to relaxed, low-stress riding rather than aggressive performance.
- Not ideal for
- It is not for riders seeking high-speed highway touring, sport-bike cornering performance, or serious technical off-road capability.
Scores are derived from the spec sheet using the same model across every bike, so they compare like for like.
Will it fit you?
Worked out in your browser - nothing is sent to usModel history
5 model years on fileWhat changed, year to year
Differences highlighted| Specification | 2022 | 2023 | 2024 | 2026 | 2027 |
|---|---|---|---|---|---|
| Capacity | 233 cc | 233 cc | 233 cc | 233 cc | 233 cc |
| Dry weight | — | — | — | 126 kg | 126 kg |
| Seat height | 831 mm | 831 mm | 831 mm | 846 mm | 846 mm |
| Fuel capacity | 7.6 L | 7.6 L | 7.6 L | 7.6 L | 7.6 L |
Illustrative - generated automatically by diffing the year records already on file, not a manufacturer-published changelog.
Own one
Parts diagrams
No diagrams for this bike yet. See which bikes have them.
Browse parts »Add it to My Garage
Free logbook: service history, reminders, recall alerts and running costs.
Add to Garage »Shop this bike
Affiliate linksWe may earn a commission from qualifying eBay or Amazon purchases made through these links. As an Amazon Associate I earn from qualifying purchases.
Rider Reviews
Common questions
What is the engine size of the Kawasaki KLX230S?
The 2027 Kawasaki KLX230S has a Capacity of 233.0 ccm (14.22 cubic inches).
What engine power does the Kawasaki KLX230S have?
The 2027 Kawasaki KLX230S has a Power of 17.0 HP (12.7 kW) @ 8000 RPM.
How many gears does the Kawasaki KLX230S have?
The 2027 Kawasaki KLX230S has a Gearbox of 6-speed.
What is the torque of the Kawasaki KLX230S?
The 2027 Kawasaki KLX230S has a Torque of 17.6 Nm (1.8 kgf-m or 13.0 ft.lbs) @ 6400 RPM.
How much does the Kawasaki KLX230S weigh?
The 2027 Kawasaki KLX230S has a Dry weight of 126.0 kg (277.8 pounds).
